دسته: لوازم گیربکس و جلوبندی لندکروزر

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر, لوازم یدکی لندکروزر

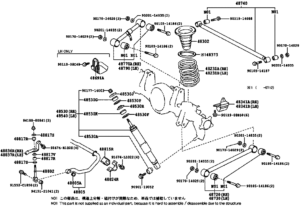

48231A SPRING, COIL, REAR RH
48231-60A20  فنر لول عقب راست 1 $182.26
48231-60E20 SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME 1 $196.43
48231B SPRING, COIL, REAR LH
48231-60B10  فنر لول عقب چپ 1 $198.73
48231-60F50 SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME 1 $201.95
48302 SPRING SUB-ASSY, HOLLOW
48302-60090 2 $98.33
48341A BUMPER, REAR SPRING, NO.1 RH
48306-60221 1 $58.24
48341B BUMPER, REAR SPRING, NO.1 LH
48306-60221 1 $58.24
48373 SPACER, REAR SPRING
48373-60010 X $70.06
48530 کمک عقب راست
48530-69395 MARK 48530-60150 1 $49.94
48530A BUSH(FOR REAR SHOCK ABSORBER)
90385-19010 2 $2.61
48530F RETAINER, SHOCK ABSORBER CUSHION(FOR REAR)
90948-02173 2 $11.58
48530G CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01064 2 $10.36
48530J RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
90948-02173 2 $11.58
48530K CUSHION, REAR SHOCK ABSORBER, NO.2
90948-01064 2 $10.36
48530P RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
90948-02184 2 $11.58
48530R RETAINER, CUSHION, NO.3(FOR REAR SHOCK ABSORBER)
90948-02170 2 $12.18
48540 کمک عقب چپ
48530-69395 MARK 48530-60150 1 $49.94
48691A INSULATOR, UPPER ARM BUSH, HEAT
48691-60020 1 $19.53
48720 ARM ASSY, LOWER CONTROL, RH
48720-60070  مندل پایین راست 1 $257.74
48730 ARM ASSY, LOWER CONTROL, LH
48720-60070  مندل پایین چپ 1 $257.74
48740 ROD ASSY, REAR LATERAL CONTROL
48740-60150  مندل بلند عقب 1 $230.07
48770A ARM ASSY, UPPER CONTROL, REAR RH
48710-60140  مندل کوتاه عقب راست 1 $188.55
48790 ARM ASSY, UPPER CONTROL, REAR LH
48710-60150  مندل کوتاه عقب چپ 1 $188.55
48802 LINK SUB-ASSY, STABILIZER
48802-60110  میل موجگیر عقب 2 $38.59
48805 BAR SUB-ASSY, REAR STABILIZER
48805-60120  موجگیر عقب 1 $416.68
48805A BUSH(FOR REAR STABILIZER BAR)
48849-60010 2 $14.79
48815R BUSH, STABILIZER(FOR REAR)
48815-60240 2 $21.90
48817R CUSHION, STABILIZER(FOR REAR)
48817-60020 4 $8.97
48817S RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02200 4 $7.91
48817V RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
90948-02197 2 $4.94
48824R BRACKET, STABILIZER(FOR REAR)
48824-26230 2 $27.56
48836R BRACKET, REAR STABILIZER END, RH
48836-60080 1 $28.39
48837R BRACKET, REAR STABILIZER END, LH
48837-60050 1 $28.39
90105-14186 *** STD. PART $6.13
90105-14187 *** STD. PART $5.18
90119-08B50 *** STD. PART $1.03
90119-08C48 *** STD. PART $0.99
90119-14088 *** STD. PART $5.02
90170-14029 *** STD. PART $1.54
90177-14003 *** STD. PART $1.98
90201-14035 *** STD. PART $2.77
90901-19052 *** STD. PART $10.67
91552-C1050 *** STD. PART $1.90
91674-E1028 *** STD. PART $1.50
91674-L1022 *** STD. PART $1.58
94151-21041 *** STD. PART $1.27
94188-00841 *** STD. PART $0.99

diag_2ljwow

24

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر, لوازم یدکی لندکروزر

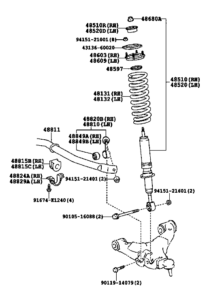

43136-60020 *** STD. PART
48131 SPRING, FRONT COIL, RH
48131-60C70  فنر لول جلو راست 1 $175.13
48131-60D00 ELECTRICAL WINCH-WITH 1 $181.90
48132 SPRING, FRONT COIL, LH
48131-60C70  فنر لول جلو چپ 1 $175.13
48131-60D00 ELECTRICAL WINCH-WITH 1 $181.90
48510 کمک جلو راست
48510-69335 MARK 48510-60130 1 $248.59
48510-69405 MARK 48510-60180, ELECTRICAL WINCH-WITH 1 $272.04
48510R CUSHION, FRONT SHOCK ABSORBER, NO.1 RH
90948-01096 1 $26.85
48520 کمک جلو چپ
48510-69335 MARK 48510-60130 1 $248.59
48510-69405 MARK 48510-60180, ELECTRICAL WINCH-WITH 1 $272.04
48520D CUSHION, FRONT SHOCK ABSORBER, NO.1 LH
90948-01096 1 $26.85
48597 RETAINER, SHOCK ABSORBER CUSHION
48597-60120 2 $8.97
48603 SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-60070  توپی سر کمک راست 1 $115.05
48609 SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-60070  توپی سر کمک چپ 1 $115.05
48680A NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94188-01401 2 $2.57
48810 LINK ASSY, FRONT STABILIZER, LH
48810-60050  سیبک موجگیر جلو چپ 1 $121.73
48811 BAR, STABILIZER, FRONT
48811-60290  میل موجگیر 1 $360.30
48815B BUSH, FRONT STABILIZER LOWER BRACKET, RH
48815-60250  لاستیک چاکدار 1 $21.94
48815C BUSH, FRONT STABILIZER LOWER BRACKET, LH
48815-60250  لاستیک چاکدار 1 $21.94
48820B LINK ASSY, FRONT STABILIZER, RH
48820-60070  سیبک موجگیر جلو راست 1 $121.73
48824A BRACKET, FRONT STABILIZER, NO.1 RH
48824-60170 1 $34.99
48829A BRACKET, FRONT STABILIZER, NO.1 LH
48824-60170 1 $34.99
48849A BUSH, FRONT STABILIZER LINK, RH
48849-60110 1 $31.55
48849B BUSH, FRONT STABILIZER LINK, LH
48849-60110 1 $31.55
90105-16088 *** STD. PART $11.15
90119-14079 *** STD. PART $5.02
91674-K1240 *** STD. PART $2.29
94151-21001 *** STD. PART $1.38
94151-21401 *** STD. PART $1.50
94151-21601 *** STD. PART $1.86

diag_2ljwow

37

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر, لوازم یدکی لندکروزر

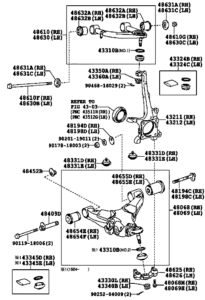

43211 KNUCKLE, STEERING, RH
43211-60190  سگدست راست 1 $911.57
43212 KNUCKLE, STEERING, LH
43212-60190  سگدست چپ 1 $911.57
43310B RING, SET (FOR DUST COVER)
90580-10001 2 $1.19
43324B COVER, FRONT UPPER BALL JOINT DUST, RH
43324-69015 1 $12.49
43324C COVER, FRONT UPPER BALL JOINT DUST, LH
43324-69015 1 $12.49
43330L NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-18004 1 $2.06
43340B NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-18004 1 $2.06
43345D COVER, LOWER BALL JOINT DUST, RH
Not applicable
43345E COVER, LOWER BALL JOINT DUST, LH
Not applicable
43350A NUT (FOR FRONT UPPER BALL JOINT RH)
90171-14011 1 $1.54
43360A NUT (FOR FRONT UPPER BALL JOINT LH)
90171-14011 1 $1.54
48068 ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-60030  طبق پایین راست 1 $510.03
48068M BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90105-18011 2 $7.87
48069 ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-60030  طبق پایین چپ 1 $510.03
48069H BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90105-18011 2 $7.87
48194C CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH
48190-34010  پیچ طبق 1 $31.95
48194D CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH
48198-34010  مهره طبق 1 $16.05
48198C CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH
48190-34010  پیچ طبق 1 $31.95
48198D CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH
48198-34010  مهره طبق 1 $16.05
48331D BUMPER, FRONT SPRING, NO.1 RH
48304-60140 2 $24.79
48331E BUMPER, FRONT SPRING, NO.1 LH
48304-60140 2 $24.79
48409D CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST
48409-34041  پیچ طبق 2 $23.72
48452B PLATE, FRONT SUSPENSION TOE ADJUST, NO.2
48452-34011  مهره طبق 2 $28.98
48610 ARM ASSY, FRONT SUSPENSION UPPER, RH
48610-60060  طبق بالا راست 1 $440.92
48610F BOLT(FOR FRONT SUSPENSION UPPER ARM RH)
90105-16086  پیچ طبق 1 $16.33
48610G NUT(FOR FRONT SUSPENSION UPPER ARM RH)
94151-21601  مهره طبق 1 $1.86
48625 ATTACHMENT, FRONT LOWER BALL JOINT, RH
48625-60020 1 $130.31
48626 ATTACHMENT, FRONT LOWER BALL JOINT, LH
48626-60020 1 $130.31
48630 ARM ASSY, FRONT SUSPENSION, UPPER LH
48630-60030  طبق بالا چپ 1 $440.92
48630B BOLT(FOR FRONT SUSPENSION UPPER ARM LH)
90105-16086  پیچ طبق 1 $16.33
48630C NUT(FOR FRONT SUSPENSION UPPER ARM LH)
94151-21601  مهره طبق 1 $1.86
48631A RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)
90948-02194 2 $23.25
48631C RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)
90948-02194 2 $23.25
48632A BUSH, FRONT SUSPENSION UPPER ARM, RH
48632-60030  بوش طبق بالا 2 $52.54
48632B BUSH, FRONT SUSPENSION UPPER ARM, LH
48632-60030  بوش طبق بالا 2 $52.54
48654E BUSH, FRONT LOWER ARM, NO.1 RH
48654-60040  بوش طبق پایین 1 1 $101.69
48654F BUSH, FRONT LOWER ARM, NO.1 LH
48654-60040  بوش طبق پایین 1 1 $101.69
48655D BUSH, FRONT LOWER ARM, NO.2 RH
48655-60040  بوش طبق پایین 2 1 $142.25
48655E BUSH, FRONT LOWER ARM, NO.2 LH
48655-60040  بوش طبق پایین 2 1 $142.25
90119-18006 *** STD. PART $11.15
90178-18003 *** STD. PART $2.29
90201-19011 *** STD. PART $2.45
90252-04009 *** STD. PART $0.91
90468-16029 *** STD. PART $0.75

diag_2ljwow

41

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر, لوازم یدکی لندکروزر

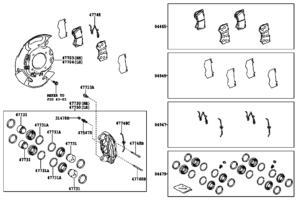

04466 لنت ترمز عقب
04466-60120 MARK ADVICS PS558H 1 $99.30
04479A CYLINDER KIT, DISC BRAKE, REAR
04479-60270  لوازم سیلندر چرخ عقب 1 $52.63
04946 SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-60120 1 $33.76
04948 FITTING KIT, DISC BRAKE, REAR
04948-60040 1 $35.86
31478C CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010 2 $2.21
47547C PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-12030 2 $7.55
47713A PLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)
90950-01301 2 $1.62
47715C PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-43010 4 $12.77
47769A BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-35010 2 $4.35
47771A PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47771-22030 2 $4.35
47775D BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-35010 2 $5.69
47810A BOLT, HEXAGON(FOR REAR CALIPER)
91672-C1230 4 $2.53
47816 PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47816-60080 4 $4.51
47817 PLATE, PAD SUPPORT. NO.2(FOR REAR DISC BRAKE)
47817-60080 4 $4.51
47821 MOUNTING, DISC BRAKE CYLINDER, RH
47821-60080 1 $236.27
47822 MOUNTING, DISC BRAKE CYLINDER, LH
47822-60070 1 $236.27
47830 CYLINDER ASSY, DISC BRAKE, REAR RH
47830-60080  سیلندر ترمز چرخ عقب راست 1 $469.62
47831 PISTON, REAR DISC BRAKE
47831-60080  پیستون سیلندر ترمز چرخ عقب 2 $33.80
47850 CYLINDER ASSY, DISC BRAKE, REAR LH
47850-60070  سیلندر چرخ عقب چپ 1 $469.62
47877 PROTECTOR, REAR DISC BRAKE DUST BOOT
47877-60080 2 $8.78
90105-06282 *** STD. PART $1.38

diag_2ljwow

26

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر, لوازم یدکی لندکروزر

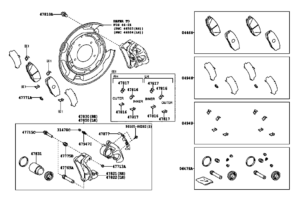

04465 لنت ترمز جلو
04465-60280 MARK ADVICS PV565H 1 $135.36
04479 CYLINDER KIT, DISC BRAKE, FRONT
04478-60070  لوازم سیلندر چرخ جلو 1 $51.34
04945 SHIM KIT, ANTI SQUEAL, FRONT
04945-60080  صفحه لنت ترمز جلو 1 $79.75
04947 FITTING KIT, DISC BRAKE, FRONT
04947-60140  خار لنت ترمز جلو 1 $17.99
31478B CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010 2 $2.21
47547B PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20030 2 $7.27
47703 COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-60090 1 $90.22
47704 COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-60090 1 $90.22
47710A BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
91672-L1240 *12-1.25PX40-30 4 $2.53
47730 CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-60280  سیلندر ترمز چرخ جلو راست 1 $632.67
47731 PISTON, FRONT DISC BRAKE
47731-60280  پیستون سیلندر ترمز چرخ جلو 8 $30.68
47731A RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-56003 8 $1.82
47748 SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-60280 2 $4.51
47748B PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06024 4 $0.99
47748C SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47743-60280 2 $4.51
47750 CYLINDER ASSY, DISC BRAKE, LH
47750-60280  سیلندر ترمز چرخ جلو چپ 1 $632.67

diag_2ljwow

36

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر, لوازم یدکی لندکروزر
44519 BOLT, BRAKE ACTUATOR
44519-24020 2 $1.30
44519A BOLT(FOR BRAKE BOOSTER PUMP)
44519-24020 1 $1.30
44551C TUBE, BRAKE ACTUATOR, NO.1
44551-60050 1 $12.53
44571A HOSE, BRAKE ACTUATOR, NO.1
44571-60020 1 $14.67
44591A BRACKET, BRAKE ACTUATOR, NO.1
44591-60070 1 $11.27
44785C GASKET, BRAKE BOOSTER
44785-60020 1 $2.73
47070B PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR
47070-60040  بوستر پمپ ترمز 1 $1,928.10
47201 CYLINDER SUB-ASSY, BRAKE MASTER
47025-60160  پمپ ترمز 1 $2,642.93
47202 RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-60210  مخزن پمپ ترمز 1 $152.77
47204 PISTON, MASTER CYLINDER
47026-60160  لوازم پمپ ترمز 1 $74.37
47210H RING, SNAP(FOR BRAKE MASTER CYLINDER)
90520-32012 1 $2.41
47210L BRAKE BOOSTER ASSY, W/MASTER CYLINDER
47050-60140  پمپ ترمز کامل 1 $3,903.29
47210U PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90029-15803 1 $1.62
47214 PLUG, MASTER CYLINDER
47027-60090 1 $30.72
47217 SOLENOID, MASTER CYLINDER
47217-60050  سلونویید پمپ ترمز 1 $2,664.71
47230 درب مخزن پمپ ترمز
47230-24010 (09/2007 – 08/2008) 1 $13.96
47230-58010 (09/2008 – 04/2009) 1 $13.56
47255 GROMMET, MASTER CYLINDER RESERVOIR
47255-16010 2 $11.74
47255A GROMMET, MASTER CYLINDER RESERVOIR, NO.2
31417-35010 1 $2.81
47264 CLEVIS, MASTER CYLINDER PUSH ROD
47264-60020 1 $10.44
47265 BOOT, MASTER CYLINDER
90029-70001 1 $6.84
47287 LABEL, BRAKE FLUID INFORMATION
47287-20020 (09/2007 – 04/2008) 1 $3.91
47287-60180 (05/2008 – 12/2011) 1 $4.19
47950D ACCUMULATOR ASSY, BRAKE BOOSTER
47950-60030 1 $442.42
47950F RING, O(FOR BRAKE BOOSTER ACCUMULATOR)
90301-13014 1 $3.58
47955A PIPE, BRAKE BOOSTER ACCUMULATOR
47955-60020 1 $2.29
47960A PUMP ASSY, BRAKE BOOSTER
47960-60090 1 $1,609.00
47962A COLLAR, BRAKE BOOSTER PUMP
47962-60090 2 $1.62
47965A BUSH, BRAKE BOOSTER PUMP
47965-24010 3 $5.57
47967A BRACKET, BRAKE BOOSTER PUMP, NO.1
47967-60090 1 $12.89
47997A LABEL, ACCUMULATOR CAUTION, NO.1
47997-60050 1 $1.54
74571C LABEL, BRAKE FLUID INFORMATION
47288-60020 1 $1.54

diag_2ljwow

39

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر, لوازم یدکی لندکروزر
44348A HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60390  شلنگ مخزن هیدرولیک به پمپ 1 $57.61
44402 خنک کن روغن جعبه فرمان
44402-60050 (09/2007 – 07/2008) 1 $692.02
44402-60051 (09/2008 – 12/2011) 1
44410 TUBE ASSY, PRESSURE FEED
44410-60730  شلنگ هیدرولیک فشار قوی 1 $628.05
44411C BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16034 1 $12.97
44411D GASKET(FOR PRESSURE FEED HOSE)
44327-30040 1 $2.85
90466-16002 *** STD. PART $4.51
90467-16019 *** STD. PART $3.12
90467-21010 *** STD. PART $3.60
91641-H0820 *** STD. PART $1.07
91673-E1035 *** STD. PART $1.58
91673-E1090 *** STD. PART $2.21
91674-80835 *** STD. PART $1.30
 diag_2ljwow
26

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر, لوازم یدکی لندکروزر
04446 GASKET KIT, POWER STEERING PUMP
04446-60260  لوازم پمپ هیدرولیک 1 $26.61
44303A SHAFT SUB-ASSY, W/PULLEY
44303-60020  پولی سر پمپ هیدرولیک 1 $177.13
44305 درب مخزن پمپ هیدرولیک
44305-37020 (09/2007 – 01/2008) 1 $31.99
44305-37030 (03/2008 – 12/2011) 1 $31.99
44308 UNION SUB-ASSY, PRESSURE PORT
44308-60170 1 $32.97
44310 PUMP ASSY, VANE
44310-60510  پمپ هیدرولیک 1 $981.31
44337 UNION, POWER STEERING SUCTION PORT
44337-60200 1
44337A RING, O(FOR POWER STEERING SUCTION PORT)
90301-15025 1 $3.29
44360 RESERVOIR ASSY, VANE PUMP OIL
44360-60290  مخزن پمپ هیدرولیک 1 $216.23
90119-06977 *** STD. PART $0.99
90119-08B61 *** STD. PART $0.79
90540-09004 *** STD. PART $4.31
90540-10023 *** STD. PART $3.60
90560-06014 *** STD. PART $7.91
90560-08022 *** STD. PART $4.15

diag_2ljwow

42

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر, لوازم یدکی لندکروزر
45020B ACTUATOR OR UPR BRACKET ASSY, STEERING LOCK
45020-30A60 1 $386.40
45026D COVER SUB-ASSY, STEERING COLUMN HOLE
45025-60170 1 $98.80
45203A SHAFT, STEERING INTERMEDIATE, NO.2
45203-60160  چهارشاخه فرمان وسط2 1 $247.74
45220 SHAFT ASSY, STEERING INTERMEDIATE
45220-60260  چهارشاخه فرمان وسط 1 $327.13
45250 COLUMN ASSY, STEERING
45250-60A00  میل فرمان 1 $1,090.35
45286B قاب بالایی فرمان
45286-60490-C0 BLACK, TRIM1* 1 $50.96
45286-60490-E0 DK. BROWN, TRIM4* 1 $50.96
45287 قاب پایینی فرمان
45287-60510-C0 BLACK, TRIM1* 1 $77.73
45287-60510-E0 DK. BROWN, TRIM4* 1 $77.73
45817 STOPPER, STEERING SHAFT THRUST
45817-60020 1 $15.93
45897 BOLT, STEERING LOCK SET
45897-12020 2 $3.95
90119-08560 *** STD. PART $1.46
90178-06012 *** STD. PART $1.07
91511-B0614 *** STD. PART $0.79
93568-55014 *** STD. PART $0.43
94151-81000 *** STD. PART $1.27

diag_2ljwow

43

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر, لوازم یدکی لندکروزر
43501C HUB SUB-ASSY, FRONT AXLE, RH
43502-60190  توپی چرخ جلو راست 1 $225.61
43501D پیچ چرخ
90942-02077 (09/2007 – 10/2007) 5 $7.55
90942-02083 (12/2007 – 12/2011) 5 $4.63
43501F SEAL, OIL (FOR FRONT AXLE HUB RH)
90312-87001  کاسه نمد توپی چرخ 1 $26.61
43501H NUT (FOR FRONT AXLE SHAFT RH)
90179-32007  مهره چرخ 1 $6.72
43502C HUB SUB-ASSY, FRONT AXLE, LH
43502-60190  توپی چرخ جلو چپ 1 $225.61
43502D پیچ چرخ
90942-02077 (09/2007 – 10/2007) 5 $7.55
90942-02083 (12/2007 – 12/2011) 5 $4.63
43502F SEAL, OIL (FOR FRONT AXLE HUB LH)
90312-87001  کاسه نمد توپی چرخ 1 $26.61
43502H NUT (FOR FRONT AXLE SHAFT LH)
90179-32007  مهره چرخ 1 $6.72
43511H SEAL, OIL (FOR FRONT AXLE HUB INNER RH)
90316-83001  کاسه نمد داخلی توپی چرخ 1 $63.54
43512 DISC, FRONT
43512-60180  دیسک چرخ جلو 2 $179.50
43512G SEAL, OIL (FOR FRONT AXLE HUB INNER LH)
90316-83001  کاسه نمد داخلی توپی چرخ 1 $63.54
43514B CAP, FRONT AXLE HUB GREASE, RH
43514-34020 1 $22.54
43514C CAP, FRONT AXLE HUB GREASE, LH
43514-34020 1 $22.54
43525B CAP, FRONT WHEEL ADJUSTING LOCK, RH
43525-60010 1 $11.94
43525C CAP, FRONT WHEEL ADJUSTING LOCK, LH
43525-60010 1 $11.94
43570 BEARING ASSY, FRONT AXLE W/ABS ROTOR RH
43570-60030  بلبرینگ چرخ جلو راست 1 $243.43
43580 BEARING ASSY, FRONT AXLE W/ABS ROTOR LH
43570-60030  بلبرینگ چرخ جلو چپ 1 $243.43
90301-99182 *** STD. PART $4.65
91672-L1240 *** STD. PART $2.53
95381-04045 *** STD. PART $0.83

diag_2ljwow

31

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر, لوازم یدکی لندکروزر
04438F BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-60090  گردگیر پلوس کامل 1 $132.21
04438G BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-60050  گردگیر پلوس سمت دیفرانسیل 1 $82.47
04438H BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04427-60090  گردگیر پلوس کامل 1 $132.21
04438J BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-60050  گردگیر پلوس سمت دیفرانسیل 1 $82.47
41336D COVER, FRONT DRIVE SHAFT DUST, RH
41336-35020 1 $8.30
41336E COVER, FRONT DRIVE SHAFT DUST, LH
41336-35020 1 $8.30
43403 JOINT SET, FRONT AXLE INBOARD, RH
43403-60030  پلوس سمت دیفرانسیل 1 $706.33
43403A RING, SHAFT SNAP (FOR FR AXLE INBOARD JOINT SET SETTING)
90521-37010 2 $1.70
43403D RING, HOLE SNAP (FOR FRONT AXLE INBOARD JOINT SET)
43425-60020 2 $1.82
43404 JOINT SET, FRONT AXLE INBOARD, LH
43403-60030  پلوس سمت دیفرانسیل 1 $706.33
43410 پلوس کامل راست
43430-60070 (09/2007 – 11/2007) 1 $819.89
43430-60071 (01/2008 – 12/2011) 1 $780.83
43410M OIL SEAL, FRONT DRIVE SHAFT, RH
90311-47013  کاسه نمد پلوس راست 1 $23.33
43411B RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
43425-60030 2 $1.03
43420 پلوس کامل سمت چپ
43430-60070 (09/2007 – 11/2007) 1 $819.89
43430-60071 (01/2008 – 12/2011) 1 $780.83
43420H OIL SEAL, FRONT DRIVE SHAFT, LH
90311-47012  کاسه نمد پلوس چپ 1 $14.04
43447A CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
42345-60140 2 $14.67
43447B CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
42345-60130 2 $7.43
43448A CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-60130 2 $7.43
43448B CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-60150 2 $9.81
43460 پلوس سمت چرخ راست
43460-69115 (09/2007 – 12/2007) 1 $720.68
43460-69175 (01/2008 – 12/2011) 1 $681.82
43470 پلوس سمت چرخ چپ
43460-69115 (09/2007 – 12/2007) 1 $720.68
43460-69175 (01/2008 – 12/2011) 1 $681.82
43501K SEAL, DUST (FOR FRONT AXLE HUB RH)
90304-94001  کاسه نمد پلوس سمت توپی چرخ راست 1
43502K SEAL, DUST (FOR FRONT AXLE HUB LH)
90304-94001  کاسه نمد پلوس سمت توپی چرخ چپ 1

diag_2ljwow

37

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر, لوازم یدکی لندکروزر
41039A GEAR KIT, DIFFERENTIAL
41039-34121  دنده دشلی 1 $478.75
41101A CARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41111-34050 1 $701.58
41101D SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
90311-46006 1 $48.75
41110F دیفرانسیل جلو
41110-60B90 FINAL GEAR RATIO=41:10=4.100 1 $3,262.35
41110M PLUG, FRONT DIFFERENTIAL FILLER
90341-18066 1 $4.67
41110N GASKET, FRONT DIFFERENTIAL FILLER PLUG
12157-10010 1 $0.91
41110P PLUG, FRONT DIFFERENTIAL DRAIN
90341-24014 1 $11.35
41110Q GASKET, FRONT DIFFERENTIAL DRAIN PLUG
90430-24003 1 $1.34
41110V UNION (FOR FRONT DIFFERENTIAL)
90407-10027 1 $4.31
41111D PIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)
90250-10017 2 $2.13
41141J BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
91552-01035 *10-1.25PX35-26 11 $1.78
41141L RETAINER, FRONT DIFFERENTIAL CROSS SHAFT BEARING
41141-34010 1 $429.53
41183C DEFLECTOR, FRONT DIFFERENTIAL BREATHER PLUG OIL
41183-34010 1 $6.92
41201T کرانویل پنیون دیفرانسیل جلو
41201-80482 FINAL GEAR RATIO=41:10=4.100 1 $1,284.25
41201V SHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST)
90564-63065 T=1.825 1 $9.49
90564-63066 T=1.850 1 $9.49
90564-63067 T=1.875 1 $9.49
90564-63068 T=1.900 1 $9.49
90564-63069 T=1.925 1 $9.49
90564-63070 T=1.950 1 $9.49
90564-63071 T=1.975 1 $9.49
90564-63072 T=2.000 1 $9.49
90564-63074 T=2.025 1 $9.49
90564-63075 T=2.050 1 $9.49
90564-63076 T=2.075 1 $9.49
90564-63077 T=2.100 1 $11.82
90564-63078 T=2.125 1 $11.82
90564-63079 T=2.150 1 $11.82
90564-63080 T=2.175 1 $11.82
90564-63081 T=2.200 1 $11.82
90564-63082 T=2.225 1 $11.82
90564-63083 T=2.250 1 $11.82
90564-63084 T=2.275 1 $11.82
41204D FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204-34050 1 $145.10
41204E NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
90179-22029 1 $4.47
41211A BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
90366-40114 1 $226.94
41211B BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
90363-35063 1 $174.44
41214C SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41214-34010 1 $11.94
41222B BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12365 12 $1.70
41231F SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41231-34040 1 $16.84
41301L CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41301-60150 1 $938.17
41304F SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41337-60020 1 $280.16
41304H RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
90521-75009 1 $6.60
41304L BEARING (FOR FRONT DIFFERNTIAL SIDE GEAR SHAFT RH)
90363-47002 1 $31.55
41304M RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
90520-44040 1 $4.63
41311A BEARING (FOR FRONT DIFFERENTIAL CASE)
90366-58013 2 $122.56
41311B WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
90564-50238 T=1.50 X $9.49
90564-50239 T=1.52 X $9.49
90564-50240 T=1.54 X $11.82
90564-50241 T=1.56 X $11.82
90564-50242 T=1.58 X $11.82
90564-50243 T=1.60 X $11.82
90564-50244 T=1.62 X $11.82
90564-50245 T=1.64 X $11.82
90564-50246 T=1.66 X $11.82
90564-50247 T=1.68 X $11.82
90564-50248 T=1.70 X $11.82
90564-50249 T=1.72 X $14.19
90564-50250 T=1.74 X $14.19
90564-50251 T=1.76 X $11.82
90564-50252 T=1.78 X $11.82
90564-50253 T=1.80 X $11.82
90564-50254 T=1.82 X $11.82
90564-50255 T=1.84 X $11.82
90564-50256 T=1.86 X $11.82
90564-50257 T=1.88 X $11.82
90564-50258 T=1.90 X $11.82
90564-50259 T=1.92 X $11.82
90564-50260 T=1.94 X $11.82
90564-50261 T=1.96 X $11.82
90564-50262 T=1.98 X $11.82
90564-50263 T=2.00 X $11.82
90564-50264 T=2.02 X $11.82
90564-50265 T=2.04 X $11.82
90564-50266 T=2.06 X $11.82
90564-50267 T=2.08 X $11.82
90564-50268 T=2.10 X $11.82
90564-50269 T=2.12 X $11.82
90564-50270 T=2.14 X $11.82
90564-50271 T=2.16 X $11.82
90564-50272 T=2.18 X $11.82
90564-50273 T=2.20 X $14.19
90564-50274 T=2.22 X $14.19
90564-50275 T=2.24 X $14.19
90564-50276 T=2.26 X $14.19
90564-50277 T=2.28 X $14.19
90564-50278 T=2.30 X $14.19
90564-50279 T=2.32 X $14.19
90564-50280 T=2.34 X $14.19
41320B BOLT (FOR FRONT DIFFERENTIAL TUBE)
90105-12373 4 $2.53
41320C PIN, STRAIGHT (FOR FRONT DIFFERENTIAL TUBE)
90250-10017 2 $2.13
41321 TUBE, DIFFERENTIAL EXTENSION FLANGE
41321-60020 1 $305.46
41342A PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058 1 $2.69
41342F SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-34020 1 $42.42
41351F WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-34020 2 $4.39
41361F WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-34100 T=1.45 2 $7.47
41361-34110 T=1.50 2 $7.79
41361-34120 T=1.55 2 $8.11
41361-34130 T=1.60 2 $8.30
41361-34140 T=1.65 2 $8.58
41361-34150 T=1.70 2 $8.78
41361-34160 T=1.75 2 $9.05
41361-34170 T=1.80 2 $9.29
41361-34180 T=1.85 2 $9.53
41653B STOPPER, DIFFERENTIAL MOUNT, UPPER
41653-60060 1 $53.02
41653C STOPPER, FRONT DIFFERENTIAL MOUNT, UPPER
41653-60050 1 $53.02
41654A STOPPER, DIFFERENTIAL MOUNT, LOWER
41654-60020 2 $14.59
52380D SUPPORT ASSY, FRONT DIFFERENTIAL
52380-60080 NO.1 1 $152.26
52380-60090 NO.2 1 $152.26
52380E SUPPORT ASSY, DIFFERENTIAL
52380-60070 1 $169.93
90105-14175 *** STD. PART $6.13
90105-14177 *** STD. PART $5.18
90105-14185 *** STD. PART $6.13
90110-06009 *** STD. PART $0.87
90178-14016 *** STD. PART $3.76
90179-14063 *** STD. PART $1.90
91552-L1450 *** STD. PART $4.11
91554-L1450 *** STD. PART

diag_2ljwow

29

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر, لوازم یدکی لندکروزر
42311L SHAFT, REAR AXLE, RH
42301-60030  پلوس عقب راست 1 $816.12
42311T RING, SNAP (FOR REAR AXLE SHAFT RH)
90520-46014 1 $2.89
42311U BOLT, HUB (FOR REAR AXLE RH)
90942-02077 (09/2007 – 10/2007) 5 $7.55
90942-02083 (12/2007 – 12/2011) 5 $4.63
42311V SEAL, OIL (FOR REAR AXLE SHAFT RH)
90310-63001 1 $22.69
42311Z WASHER(FOR REAR AXLE SHAFT RH)
90208-49001 1 $5.77
42312 SHAFT, REAR AXLE, LH
42301-60030  پلوس عقب چپ 1 $816.12
42312C SEAL, OIL (FOR REAR AXLE SHAFT LH)
90310-63001  کاسه نمد پلوس عقب 1 $22.69
42312D RING, SNAP (FOR REAR AXLE SHAFT LH)
90520-46014 1 $2.89
42312E BOLT, HUB (FOR REAR AXLE LH)
90942-02077 (09/2007 – 10/2007) 5 $7.55
90942-02083 (12/2007 – 12/2011) 5 $4.63
42312J WASHER (FOR REAR AXLE SHAFT LH)
90208-49001 1 $5.77
42409E RING, O (FOR REAR AXLE BEARING RH)
90301-88004 1 $5.08
42409F RING, O (FOR REAR AXLE BEARING LH)
90301-88004 1 $5.08
42423A RETAINER, REAR AXLE BEARING, INNER RH
42423-34040 1 $33.01
42423B RETAINER, REAR AXLE BEARING, INNER LH
42423-34040 1 $33.01
42431 DISC, REAR
42431-60290  دیسک چرخ عقب 2 $206.96
42441A DEFLECTOR, BRAKE DRUM OIL RH
42441-34020  لوازم توپی چرخ عقب 1 $34.63
42441B DEFLECTOR, BRAKE DRUM OIL LH
42441-34020  لوازم توپی چرخ عقب 1 $34.63
42443A GASKET, BRAKE DRUM OIL DEFLECTOR, RH
42443-60020 1 $12.85
42443B GASKET, BRAKE DRUM OIL DEFLECTOR, LH
42443-60020 1 $12.85
42450A HUB & BEARING ASSY, REAR AXLE, RH
42450-60070  توپی چرخ عقب راست 1 $472.98
42450B HUB & BEARING ASSY, REAR AXLE, LH
42460-60030  توپی چرخ عقب چپ 1 $472.98
42491 PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-22020 2 $3.00

diag_2ljwow

30

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر, لوازم یدکی لندکروزر
41101 پوسته دیفرانسیل عقب
41101-60180 1 $759.14
41101-60190 WITH(DIFFERENTIAL LOCK) 1 $759.14
41110 دیفرانسیل عقب
41110-60A20 FINAL GEAR RATIO=41:10=4.100 1 $2,546.06
41110-60A50 FINAL GEAR RATIO=41:10=4.100, WITH(LSD) 1 $3,597.36
41110-60C10 FINAL GEAR RATIO=41:10=4.100, WITH(DIFFERENTIAL LOCK) 1 $2,443.03
41114 BOLT, REAR DIFFERENTIAL BEARING CAP
41114-60010 WITH(DIFFERENTIAL LOCK) 4 $7.24
41114-60020 4 $7.08
41201 کرانویل پنیون دیفرانسیل عقب
41201-80492 FINAL GEAR RATIO=41:10=4.100 1 $1,328.29
41201A BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR)
90366-40111  بلبرینگ پنیون دیفرانسیل عقب 1 $148.90
41201B BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT)
90366-33006  بلبرینگ دیفرانسیل عقب 1 $91.45
41201C SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90311-45028  کاسه نمد دیفرانسیل 1 $24.55
41201D WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
90564-40004 T=1.05 1 $4.07
90564-40006 T=1.075 1 $5.61
90564-40007 T=1.10 1 $4.07
90564-40008 T=1.125 1 $5.61
90564-40009 T=1.15 1 $4.67
90564-40010 T=1.175 1 $5.61
90564-40011 T=1.20 1 $4.67
90564-40012 T=1.225 1 $5.61
90564-40013 T=1.25 1 $4.67
90564-40014 T=1.275 1 $5.61
90564-40015 T=1.30 1 $4.67
90564-40016 T=1.325 1 $5.61
90564-40017 T=1.35 1 $4.67
90564-40018 T=1.375 1 $5.61
90564-40019 T=1.40 1 $4.67
90564-40020 T=1.425 1 $5.81
90564-40021 T=1.45 1 $4.67
90564-40022 T=1.475 1 $5.81
90564-40023 T=1.50 1 $4.67
90564-40024 T=1.525 1 $6.17
90564-40025 T=1.55 1 $4.67
41204 FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-60060  فلنچ دیفرانسیل عقب 1 $128.65
41204G NUT (FOR DRIVE PINION COMPANION FLANGE REAR)
90179-22029 1 $4.47
41214 SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41214-60020 1 $7.31
41222A BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
90901-05002 12 $4.39
41231 SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231-60040 1 $21.27
41301A BEARING(FOR REAR DIFFERENTIAL CASE)
90366-50054 2 $88.80
90366-60002 WITH(DIFFERENTIAL LOCK) 2 $180.72
41302 CASE SUB-ASSY, REAR DIFFERENTIAL
41301-60080 1 $547.35
41301-60090 WITH(LSD) 1 $547.35
41301-60100 WITH(DIFFERENTIAL LOCK) 1 $547.35
41302A BOLT(FOR REAR DIFFERENTIAL CASE)
90105-10021 8 $2.13
41315 NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-30010 2 $16.41
41316 LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-30010 SINGLE TYPE 2 $1.23
41317-30010 DOUBLE TYPE 2 $1.54
41331 دنده دشلی دیفرانسیل عقب
41331-60060 2 $133.36
41331-60070 WITH(LSD) 2 $145.97
41331-60080 WITH(DIFFERENTIAL LOCK) 2 $145.97
41341 دنده پنیون دیفرانسیل عقب
41341-55013 4 $67.33
41341-60011 WITH(LSD) 4 $73.66
41351 WASHER, REAR DIFFERENTIAL PINION THRUST
41351-35011 WITH(DIFFERENTIAL LOCK) 4 $17.99
41351-60010 4 $16.96
41361 WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-60341 T=2.00, WITH(LSD) 4 $12.85
41361-60810 T=1.550 2 $12.22
41361-60830 T=1.600 2 $12.57
41361-60850 T=1.650 2 $12.85
41361-60870 T=1.700 2 $13.32
41361-60890 T=1.750 2 $13.72
41361-60A10 T=1.800 2 $14.08
41361-60A30 T=1.850 2 $14.39
41361-60A50 T=1.900 2 $14.79
41361-60A70 T=1.950 2 $15.18
41361-60A90 T=2.000 2 $15.58
41361-60B10 T=2.050 2 $16.09
41361-60B30 T=2.100 2 $16.49
41361-60B60 T=1.550, WITH(DIFFERENTIAL LOCK) 2 $13.36
41361-60B80 T=1.600, WITH(DIFFERENTIAL LOCK) 2 $13.76
41361-60C00 T=1.650, WITH(DIFFERENTIAL LOCK) 2 $14.08
41361-60C20 T=1.700, WITH(DIFFERENTIAL LOCK) 2 $14.55
41361-60C40 T=1.750, WITH(DIFFERENTIAL LOCK) 2 $14.98
41361-60C60 T=1.800, WITH(DIFFERENTIAL LOCK) 2 $15.42
41361-60C80 T=1.850, WITH(DIFFERENTIAL LOCK) 2 $15.78
41361-60D00 T=1.900, WITH(DIFFERENTIAL LOCK) 2 $16.17
41361-60D20 T=1.950, WITH(DIFFERENTIAL LOCK) 2 $16.61
41361-60D40 T=2.000, WITH(DIFFERENTIAL LOCK) 2 $17.04
41361-60D60 T=2.050, WITH(DIFFERENTIAL LOCK) 2 $17.63
41361-60D80 T=2.100, WITH(DIFFERENTIAL LOCK) 2 $18.07
41371 SPIDER, REAR DIFFERENTIAL
41306-60020 WITH(LSD) 1 $109.12
41371-60050 1 $69.55
91611-60814 *** STD. PART

diag_1qzxr5h diag_1qzxr6i

26

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر, لوازم یدکی لندکروزر
38110 وینچ
38110-60290 ELECTRICAL WINCH-WITH 1 $9,332.99
38221 LEVER, CLUTCH HUB SHIFT
38221-60240 ELECTRICAL WINCH-WITH 1 $34.67
38360 BRACKET ASSY, WINCH ROLLER
38360-60083 ELECTRICAL WINCH-WITH 1 $1,264.75
38380 HOLDER ASSY, WINCH HOOK
38380-60022 ELECTRICAL WINCH-WITH 1 $59.70
38630 SWITCH ASSY, MAGNET, NO.1
38630-60190 ELECTRICAL WINCH-WITH 1 $367.26
38640 SWITCH ASSY, WINCH CONTROL
38640-35010 ELECTRICAL WINCH-WITH (09/2007 – 11/2007) 1 $955.37
38640-60030 ELECTRICAL WINCH-WITH (01/2008 – 12/2011) 1 $955.37
38649 WIRE, WINCH CONTROL
38649-60070 ELECTRICAL WINCH-WITH 1 $109.08
38659 COVER, WINCH CONTROL SWITCH
38659-60010 ELECTRICAL WINCH-WITH 1 $82.67
90179-06274 *** STD. PART $0.87
90179-08204 *** STD. PART $1.11
91674-K1240 *** STD. PART $2.

diag_1rsmvq0 diag_2ljwow

38

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر
04371G SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT
04371-60070  چهار شاخه گاردون جلو 2 $110.62
37109 BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1
37109-60020  بست گاردون 1 $60.29
37117 INSULATOR, PROPELLER SHAFT HEAT
37117-60030 1 $46.69
37140 SHAFT ASSY, PROPELLER, FRONT
37140-60570  گاردون جلو 1 $709.23
37140B NUT (F0R FRONT PROPELLER SHAFT)
90178-11001 8 $1.27
37140C WASHER (F0R FRONT PROPELLER SHAFT)
90201-11013 8 $0.79
37401D RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
90520-25039 T=2.29, MARK 1 8 $2.21
90520-25040 T=2.31, MARK 2 8 $2.21
90520-25041 T=2.33, NO MARK 8 $2.21
90520-25042 T=2.35, BROWN 8 $2.21
90520-25043 T=2.37, BLUE 8 $2.21
90520-25044 T=2.39, MARK 6 8 $2.21
90520-25045 T=2.41, MARK 7 8 $2.21
90520-25046 T=2.43, MARK 8 8 $2.21
90520-25047 T=2.45, MARK 9 8 $2.21
90520-25048 T=2.47, MARK 10 8 $2.21
90520-25049 T=2.49, MARK A 8 $2.17
90520-25050 T=2.51, MARK B 8 $2.17
90520-25051 T=2.53, MARK C 8 $2.17
90520-25052 T=2.55, MARK D 8 $2.17
90520-25053 T=2.57, MARK E 8 $2.17
90520-25054 T=2.19, MARK D 8 $1.27
90520-25055 T=2.21, MARK E 8 $1.27
90520-25056 T=2.23, MARK F 8 $1.27
90520-25057 T=2.25, MARK G 8 $1.27
90520-25058 T=2.27, MARK H 8 $1.27
90119-08934 *** STD. PART $1.11
91651-B0820 *** STD. PART $1.34
04371H SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
04371-60070  چهارشاخه گاردون 2 $110.62
37110 گاردون
37110-60A80 (09/2007 – 09/2007) 1 $995.92
37110-60B30 (11/2007 – 10/2010) 1 $948.52
37110A BOLT (FOR PROPELLER SHAFT)
90105-11044 *11-1.00PX28-16 4 $1.74
37110D NUT (FOR PROPELLER SHAFT)
90178-11001 8 $1.27
37110E WASHER (FOR PROPELLER SHAFT)
90201-11013 8 $0.79
37401E RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
90520-25039 T=2.29, MARK 1 8 $2.21
90520-25040 T=2.31, MARK 2 8 $2.21
90520-25041 T=2.33, NO MARK 8 $2.21
90520-25042 T=2.35, BROWN 8 $2.21
90520-25043 T=2.37, BLUE 8 $2.21
90520-25044 T=2.39, MARK 6 8 $2.21
90520-25045 T=2.41, MARK 7 8 $2.21
90520-25046 T=2.43, MARK 8 8 $2.21
90520-25047 T=2.45, MARK 9 8 $2.21
90520-25048 T=2.47, MARK 10 8 $2.21
90520-25049 T=2.49, MARK A 8 $2.17
90520-25050 T=2.51, MARK B 8 $2.17
90520-25051 T=2.53, MARK C 8 $2.17
90520-25052 T=2.55, MARK D 8 $2.17
90520-25053 T=2.57, MARK E 8 $2.17
90520-25054 T=2.19, MARK D 8 $1.27
90520-25055 T=2.21, MARK E 8 $1.27
90520-25056 T=2.23, MARK F 8 $1.27
90520-25057 T=2.25, MARK G 8 $1.27
90520-25058 T=2.27, MARK H 8 $1.27

diag_1oedxzb diag_1rsmvq0

37

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر, لوازم یدکی لندکروزر
35205A SPRING SUB-ASSY, B-3 ACCUMULATOR
35205-60010 1 $3.91
35205B RING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING)
90521-22004 1 $2.65
35207B SPRING SUB-ASSY, C-2 ACCUMULATOR
35207-22010 1 $3.68
35207C RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
90521-22004 1 $2.65
35208B SPRING SUB-ASSY, C-3 ACCUMULATOR
35208-60010 1 $3.56
35208C RING, HOLE SNAP (FOR C-3 ACCUMULATOR SPRING)
90521-22004 1 $2.65
35210 SOLENOID ASSY, CLUTCH CONTROL, NO.1
35210-50010 2 $191.95
35230 SOLENOID ASSY, TRANSMISSION 3WAY, NO.2
35230-60010 1 $336.38
35240 SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35240-60020 1 $336.38
35250A SOLENOID ASSY, TRANSMISSION, NO.3
35250-60010 1 $336.38
35250B RING, O NO.3(FOR TRANSMISSION SOLENOID)
90301-06004 1 $3.15
35251 BODY, CHECK BALL
35251-30020 1 $34.36
35251A SPRING, COMPRESSION (FOR CHECK BALL BODY)
90501-03005 1 $1.27
35280 SOLENOID ASSY, LOCK UP CONTROL
35280-30050 1 $211.05
35285 PLATE, SOLENOID LOCK
35285-34010 2 $1.27
35290 SOLENOID ASSY, LINE PRESSURE CONTROL
35290-34010 1 $211.05
35290B PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)
90250-03045 4 $0.51
35330 STRAINER ASSY, VALVE BODY OIL
35330-60050  صافی گیربکس 1 $118.69
35330A RING, O (FOR OIL STRAINER)
90301-31014 1 $3.01
35410 BODY ASSY, TRANSMISSION VALVE
35410-60610  ساعت گیربکس 1 $1,851.72
35424D SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
90501-20173 INNER 1 $2.85
90501-21040 OUTER 1 $3.52
35424F VALVE, C-1 ACCUMULATOR
35424-60030 1 $23.17
35425A PISTON, C-2 ACCUMULATOR
35425-50020 1 $24.99
35425B SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
90501-22062 1 $4.11
35425C RING, O (FOR C-2 ACCUMULATOR PISTON)
90301-20008 UPPER 1 $3.01
90301-28008 LOWER 1 $3.58
35426D PISTON, C-3 ACCUMULATOR
35426-50020 1 $44.08
35426E SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
90501-24038 INNER 1 $3.16
90501-25028 OUTER 1 $4.39
35426F RING, O (FOR C-3 ACCUMULATOR PISTON)
90301-26011 UPPER 1 $3.01
90301-34011 LOWER 1 $3.01
35427K PISTON, B-3 ACCUMULATOR
35427-50020 1 $39.10
35427L SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
90501-27036 1 $5.54
35427M RING, O (FOR B-3 ACCUMULATOR PISTON)
90301-23010 UPPER 1 $3.01
90301-34011 LOWER 1 $3.01
35481B CLAMP, VALVE BODY WIRE HARNESS
35481-60010 1 $9.69
35482B CLAMP, TEMPERATURE SENSOR
35482-60040 2 $5.50
90105-05005 *** STD. PART $0.59
90105-06049 *** STD. PART $0.55
91511-C0625 *** STD. PART $0.99
91511-C0635 *** STD. PART $0.79

diag_1rsmvq0

34

دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر
35047 SPRING SUB-ASSY, REVERSE CLUTCH RETURN
35047-60010 1 $30.96
35048 PISTON SUB-ASSY, REVERSE CLUTCH
35048-60010 1 $240.94
35048A RING, O (FOR REVERSE CLUTCH PISTON)
90301-99141 OUTER 1 $4.40
90301-99147 INNER 1 $4.40
35048B RING, O (FOR REVERSE CLUTCH PISTON)
90301-99140 1 $4.40
35049 HUB SUB-ASSY, REVERSE CLUTCH
35049-60010 1 $168.66
35061 HUB SUB-ASSY, FORWARD CLUTCH
35061-50010 1 $265.85
35601 DRUM SUB-ASSY, CLUTCH
35601-50030 1 $602.31
35602B RING, O (FOR FORWARD CLUTCH PISTON)
90301-39012 INNER 1 $3.29
90301-99096 CENTER 1 $4.48
90301-99145 OUTER 1 $4.87
35602D RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
90520-35003 1 $2.61
35603A SPRING SUB-ASSY, FORWARD CLUTCH RETURN
35603-60020 1 $31.31
35604 SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35604-60020 1 $27.08
35606A PISTON SUB-ASSY, DIRECT CLUTCH
35652-60021 1 $141.42
35606C RING, O (FOR DIRECT CLUTCH PISTON)
90301-74002 INNER 1 $3.54
90301-99149 OUTER 1 $4.40
35606E RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
90520-64003 1 $2.17
35612B PISTON, FORWARD CLUTCH
35612-60010 1 $115.01
35631 HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35631-60040 1 $129.56
35633B DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-60070 6 $42.11
35634A PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-60020 T=1.8 5 $30.96
35635 FLANGE, FORWARD CLUTCH
35635-60010 T=3.0, MARK 0 1 $81.01
35635-60020 T=3.1, MARK 1 1 $81.01
35635-60030 T=3.2, MARK 2 1 $81.01
35635-60040 T=3.3, MARK 3 1 $81.01
35635-60050 T=3.4, MARK 4 1 $81.01
35635-60060 T=3.5, MARK 5 1 $81.01
35635-60070 T=3.6, MARK 6 1 $81.01
35635-60080 T=3.7, MARK 7 1 $81.01
35635-60090 T=3.8, MARK 8 1 $81.01
35635-60100 T=3.9, MARK 9 1 $81.01
35635-60110 T=4.0, MARK A 1 $81.01
35635B FLANGE, FORWARD CLUTCH
35635-60010 1 $81.01
35647A PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-60010 5 $32.18
35648D PLATE, CLUTCH, NO.3
35648-60010 4 $41.63
35649 FLANGE, REVERSE CLUTCH
35649-60030 T=3.0, MARK 2 1 $18.62
35649-60040 T=3.1.MARK 3 1 $18.62
35649-60050 T=3.2, MARK 4 1 $18.62
35649-60060 T=3.3, MARK 5 1 $18.62
35649-60070 T=3.4, MARK 6 1 $18.62
35649-60080 T=3.5, MARK 7 1 $18.62
35649-60090 T=3.6, MARK 8 1 $18.62
35649-60100 T=3.7, MARK 9 1 $18.62
35649-60110 T=3.8, MARK A 1 $18.62
35649A RING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
90520-99074 2 $8.26
35649B FLANGE, REVERSE CLUTCH
35649-60030 1 $18.62
35649C FLANGE, REVERSE CLUTCH
35649-60010 T=2.8, MARK 0 1 $18.62
35649-60020 T=2.9, MARK 1 1 $18.62
35649-60030 T=3.0, MARK 2 1 $18.62
35649-60040 T=3.1.MARK 3 1 $18.62
35649-60050 T=3.2, MARK 4 1 $18.62
35649-60060 T=3.3, MARK 5 1 $18.62
35649-60070 T=3.4, MARK 6 1 $18.62
35649-60080 T=3.5, MARK 7 1 $18.62
35649-60090 T=3.6, MARK 8 1 $18.62
35649-60100 T=3.7, MARK 9 1 $18.62
35649-60110 T=3.8, MARK A 1 $18.62
35659 SLEEVE, REVERSE CLUTCH REACTION
35659-60020 1 $30.88
35659A RING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE)
90520-99083 1 $8.26
35667A DISK, DIRECT CLUTCH
35667-60020 5 $36.06
35668 BALANCER, CLUTCH, NO.1
35668-60010 1 $74.13
35669 BALANCER, CLUTCH, NO.2
35669-60010 1 $67.73
35672A PLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)
35672-60020 1 $39.58
35675B RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
90520-99082 1 $8.26
35677C DISC, REAR CLUTCH
35677-60030 5 $51.79
35688 BALANCER, CLUTCH, NO.3
35688-50010 1 $88.52
35688A RING, SNAP (FOR REVERSE CLUTCH RETURN SPRING)
90520-79001 1 $2.17
35701 SHAFT SUB-ASSY, INPUT
35701-60080 1 $745.43
35701J BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
90374-34011 1 $28.82
35712A RING, INPUT SHAFT OIL SEAL
35712-60010 3 $14.39
35786A RACE, THRUST BEARING, NO.1
35786-60010 1 $33.17
35786G BEARING,THRUST NEEDLE ROLLER
90374-71001 1 $28.82
35787C RACE, THRUST BEARING, NO.2
35787-60010 1 $20.52
35787D BEARING, THRUST NEEDLE ROLLER
90374-38005 1 $31.55
35787E BEARING, THRUST NEEDLE ROLLER
90374-42008 1 $28.82
35789J RACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
35789-50060 1 $32.54
35789T RACE, THRUST BEARING (INPUT SHAFT REAR)
35789-60040 1 $27.44
35789Z BEARING, THRUST NEEDLE ROLLER
90374-21004 1 $28.82

diag_1rsmvq0

32
