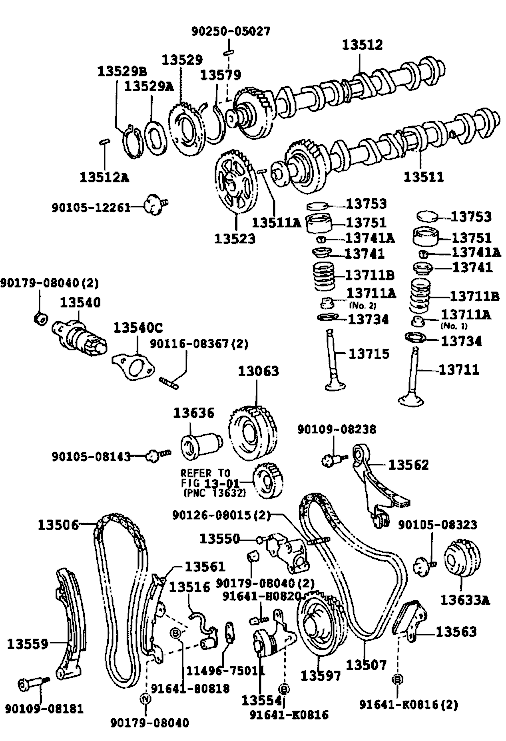

سوپاپ هایلوکس تایگر 98-2005
| 11496-75011 | *** STD. PART | $2.29 | |
| 13063 | GEAR SUB-ASSY, BALANCESHAFT DRIVE | ||
| Not applicable | |||
| 13506 | زنجير موتور هایلوکس تایگر | ||
| 13506-75020 | 1 | $116.67 | |
| 13507 | زنجير موتور بالانسر هایلوکس تایگر | ||
| Not applicable | |||
| 13511 | CAMSHAFT | ||
| 13501-75040 | ميل سوپاپ هایلوکس تایگر | 1 | $409.98 |
| 13511A | PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||
| 90250-06068 | L=11, OD=6 | 1 | $1.34 |
| 13512 | CAMSHAFT, NO.2 | ||
| 13502-75010 | ميلسوپاپ هایلوکس تایگر | 1 | $409.98 |
| 13512A | PIN, STRAIGHT NO.2(FOR CAMSHAFT KNOCK) | ||
| 90250-05030 | L=9, OD=5 | 1 | $1.15 |
| 13516 | JET, OIL | ||
| 13516-75030 | 1 | $9.09 | |
| 13523 | GEAR OR SPROCKET, CAMSHAFT TIMING | ||
| 13523-75010 | دنده تايم ميل سوپاپ هایلوکس تایگر | 1 | $33.61 |
| 13529 | GEAR, CAMSHAFT SUB | ||
| 13529-74900 | دنده ميل سوپاپ هایلوکس تایگر | 1 | $66.07 |
| 13529A | WASHER, WAVE(FOR CAMSHAFT SUB GEAR) | ||
| 90206-42001 | 1 | $1.34 | |
| 13529B | RISHAFT SNAP(FOR CAMSHAFT SUB GEAR) | ||
| 90520-41004 | 1 | $3.68 | |
| 13540 | TENSIONER ASSY, CHAIN , NO.1 | ||
| 13540-75020 | زنجير سفت كن هایلوکس تایگر | 1 | $39.38 |
| 13540C | GASKET(FOR CHAIN TENSIONER) | ||
| 13552-75010 | 1 | $2.89 | |
| 13550 | TENSIONER ASSY, CHAIN, NO.2 | ||
| Not applicable | |||
| 13554 | DAMPER, CHAIN VIBRATION, NO.4 | ||
| Not applicable | |||
| 13559 | |||
| 13559-75020 | بالشتك زنجير هایلوکس تایگر | 1 | $47.40 |
| 13561 | DAMPER, CHAIN VIBRATION, NO.1 | ||
| 13561-75020 | بالشتك زنجير هایلوکس تایگر | 1 | $64.41 |
| 13562 | DAMPER, CHAIN VIBRATION, NO.2 | ||
| Not applicable | |||
| 13563 | DAMPER, CHAIN VIBRATION, NO.3 | ||
| Not applicable | |||
| 13579 | WASHER, CAMSHAFT TIMING GEAR BOLT | ||
| 13579-74010 | 1 | $4.74 | |
| 13597 | SPROCKET, CRANKSHAFT TIMING, NO.2 | ||
| Not applicable | |||
| 13633A | GEAR, BALANCESHAFT DRIVEN, NO.2 | ||
| Not applicable | |||
| 13636 | SHAFT, BALANCESHAFT DRIVE GEAR | ||
| Not applicable | |||
| 13711 | VALVE, INTAKE | ||
| 13711-75070 | سوپاپ هایلوکس تایگر هوا | 8 | $59.03 |
| 13711A | SEAL OR RING , O(FOR VALVE STEM OIL) | ||
| 90913-02090 | NO.1 لاستیک سوپاپ هایلوکس تایگر | 8 | $5.85 |
| 90913-02103 | NO.2 لاستیک سوپاپ هایلوکس تایگر | 8 | $9.61 |
| 13711B | SPRING, COMPRESSION(FOR INNER) | ||
| 90501-31017 | 16 | $7.71 | |
| 13715 | VALVE, EXHAUST | ||
| 13715-76030 | سوپاپ هایلوکس تایگر دود | 8 | $74.75 |
| 13734 | SEAT, VALVE SPRING | ||
| 90201-18015 | 16 | $0.55 | |
| 13741 | RETAINER, VALVE SPRING | ||
| 13741-46020 | 16 | $3.99 | |
| 13741A | LOCK, VALVE SPRING RETAINER | ||
| 90913-03021 | 32 | $2.93 | |
| 13751 | LIFTER, VALVE | ||
| 13751-74020 | استكان تايپيت هایلوکس تایگر | 16 | $19.85 |
| 13753 | شيم سوپاپ هایلوکس تایگر | ||
| 13753-74010 | T=2.50 | 16 | $10.56 |
| 13753-74030 | T=2.55 | 16 | $10.56 |
| 13753-74050 | T=2.60 | 16 | $10.56 |
| 13753-74070 | T=2.65 | 16 | $10.56 |
| 13753-74090 | T=2.70 | 16 | $10.56 |
| 13753-74110 | T=2.75 | 16 | $10.56 |
| 13753-74130 | T=2.80 | 16 | $10.56 |
| 13753-74150 | T=2.85 | 16 | $10.56 |
| 13753-74170 | T=2.90 | 16 | $10.56 |
| 13753-74190 | T=2.95 | 16 | $10.56 |
| 13753-74210 | T=3.00 | 16 | $10.56 |
| 13753-74230 | T=3.05 | 16 | $10.56 |
| 13753-74250 | T=3.10 | 16 | $10.56 |
| 13753-74270 | T=3.15 | 16 | $10.56 |
| 13753-74290 | T=3.20 | 16 | $10.56 |
| 13753-74310 | T=3.25 | 16 | $10.56 |
| 13753-74330 | T=3.30 | 16 | $10.56 |
| 90105-08143 | *** STD. PART | $1.54 | |
| 90105-08323 | *** STD. PART | $1.07 | |
| 90105-12261 | *** STD. PART | $3.99 | |
| 90109-08181 | *** STD. PART | $9.96 | |
| 90109-08238 | *** STD. PART | $1.54 | |
| 90116-08367 | *** STD. PART | $1.15 | |
| 90126-08015 | *** STD. PART | $3.56 | |
| 90179-08040 | *** STD. PART | $1.38 | |
| 90250-05027 | *** STD. PART | $1.07 | |
| 91641-80818 | *** STD. PART | $1.03 | |
| 91641-H0820 | *** STD. PART | $1.07 | |
| 91641-K0816 | *** STD. PART | $1.03 | |
