کیت گیربکس لندکروزر 2008-2009-2010-2011-2012

در
دسته بندی ها: لوازم گیربکس و جلوبندی لندکروزر

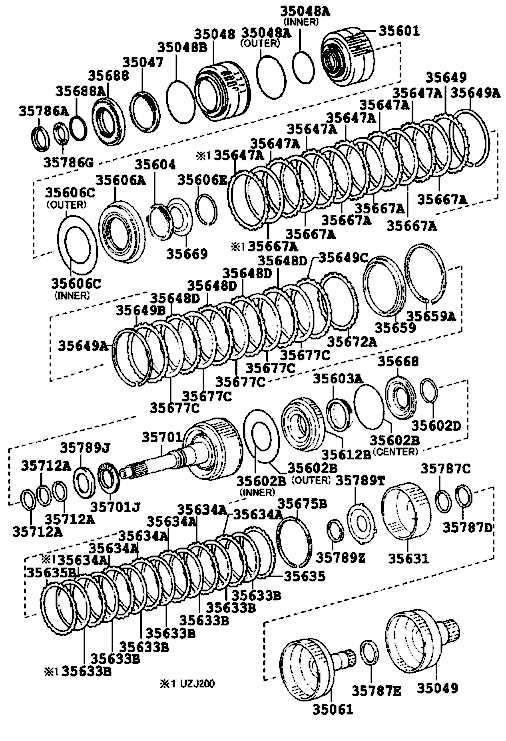

35047 SPRING SUB-ASSY, REVERSE CLUTCH RETURN
35047-60010 1 $30.96
35048 PISTON SUB-ASSY, REVERSE CLUTCH
35048-60010 1 $240.94
35048A RING, O (FOR REVERSE CLUTCH PISTON)
90301-99141 OUTER 1 $4.40
90301-99147 INNER 1 $4.40
35048B RING, O (FOR REVERSE CLUTCH PISTON)
90301-99140 1 $4.40
35049 HUB SUB-ASSY, REVERSE CLUTCH
35049-60010 1 $168.66
35061 HUB SUB-ASSY, FORWARD CLUTCH
35061-50010 1 $265.85
35601 DRUM SUB-ASSY, CLUTCH
35601-50030 1 $602.31
35602B RING, O (FOR FORWARD CLUTCH PISTON)
90301-39012 INNER 1 $3.29
90301-99096 CENTER 1 $4.48
90301-99145 OUTER 1 $4.87
35602D RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
90520-35003 1 $2.61
35603A SPRING SUB-ASSY, FORWARD CLUTCH RETURN
35603-60020 1 $31.31
35604 SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35604-60020 1 $27.08
35606A PISTON SUB-ASSY, DIRECT CLUTCH
35652-60021 1 $141.42
35606C RING, O (FOR DIRECT CLUTCH PISTON)
90301-74002 INNER 1 $3.54
90301-99149 OUTER 1 $4.40
35606E RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
90520-64003 1 $2.17
35612B PISTON, FORWARD CLUTCH
35612-60010 1 $115.01
35631 HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35631-60040 1 $129.56
35633B DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-60070 6 $42.11
35634A PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-60020 T=1.8 5 $30.96
35635 FLANGE, FORWARD CLUTCH
35635-60010 T=3.0, MARK 0 1 $81.01
35635-60020 T=3.1, MARK 1 1 $81.01
35635-60030 T=3.2, MARK 2 1 $81.01
35635-60040 T=3.3, MARK 3 1 $81.01
35635-60050 T=3.4, MARK 4 1 $81.01
35635-60060 T=3.5, MARK 5 1 $81.01
35635-60070 T=3.6, MARK 6 1 $81.01
35635-60080 T=3.7, MARK 7 1 $81.01
35635-60090 T=3.8, MARK 8 1 $81.01
35635-60100 T=3.9, MARK 9 1 $81.01
35635-60110 T=4.0, MARK A 1 $81.01
35635B FLANGE, FORWARD CLUTCH
35635-60010 1 $81.01
35647A PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-60010 5 $32.18
35648D PLATE, CLUTCH, NO.3
35648-60010 4 $41.63
35649 FLANGE, REVERSE CLUTCH
35649-60030 T=3.0, MARK 2 1 $18.62
35649-60040 T=3.1.MARK 3 1 $18.62
35649-60050 T=3.2, MARK 4 1 $18.62
35649-60060 T=3.3, MARK 5 1 $18.62
35649-60070 T=3.4, MARK 6 1 $18.62
35649-60080 T=3.5, MARK 7 1 $18.62
35649-60090 T=3.6, MARK 8 1 $18.62
35649-60100 T=3.7, MARK 9 1 $18.62
35649-60110 T=3.8, MARK A 1 $18.62
35649A RING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
90520-99074 2 $8.26
35649B FLANGE, REVERSE CLUTCH
35649-60030 1 $18.62
35649C FLANGE, REVERSE CLUTCH
35649-60010 T=2.8, MARK 0 1 $18.62
35649-60020 T=2.9, MARK 1 1 $18.62
35649-60030 T=3.0, MARK 2 1 $18.62
35649-60040 T=3.1.MARK 3 1 $18.62
35649-60050 T=3.2, MARK 4 1 $18.62
35649-60060 T=3.3, MARK 5 1 $18.62
35649-60070 T=3.4, MARK 6 1 $18.62
35649-60080 T=3.5, MARK 7 1 $18.62
35649-60090 T=3.6, MARK 8 1 $18.62
35649-60100 T=3.7, MARK 9 1 $18.62
35649-60110 T=3.8, MARK A 1 $18.62
35659 SLEEVE, REVERSE CLUTCH REACTION
35659-60020 1 $30.88
35659A RING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE)
90520-99083 1 $8.26
35667A DISK, DIRECT CLUTCH
35667-60020 5 $36.06
35668 BALANCER, CLUTCH, NO.1
35668-60010 1 $74.13
35669 BALANCER, CLUTCH, NO.2
35669-60010 1 $67.73
35672A PLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)
35672-60020 1 $39.58
35675B RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
90520-99082 1 $8.26
35677C DISC, REAR CLUTCH
35677-60030 5 $51.79
35688 BALANCER, CLUTCH, NO.3
35688-50010 1 $88.52
35688A RING, SNAP (FOR REVERSE CLUTCH RETURN SPRING)
90520-79001 1 $2.17
35701 SHAFT SUB-ASSY, INPUT
35701-60080 1 $745.43
35701J BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
90374-34011 1 $28.82
35712A RING, INPUT SHAFT OIL SEAL
35712-60010 3 $14.39
35786A RACE, THRUST BEARING, NO.1
35786-60010 1 $33.17
35786G BEARING,THRUST NEEDLE ROLLER
90374-71001 1 $28.82
35787C RACE, THRUST BEARING, NO.2
35787-60010 1 $20.52
35787D BEARING, THRUST NEEDLE ROLLER
90374-38005 1 $31.55
35787E BEARING, THRUST NEEDLE ROLLER
90374-42008 1 $28.82
35789J RACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
35789-50060 1 $32.54
35789T RACE, THRUST BEARING (INPUT SHAFT REAR)
35789-60040 1 $27.44
35789Z BEARING, THRUST NEEDLE ROLLER
90374-21004 1 $28.82
