ستون لکسوس RX350 2009-2015
ستون لکسوس RX350 شامل چه بخش هایی هست؟

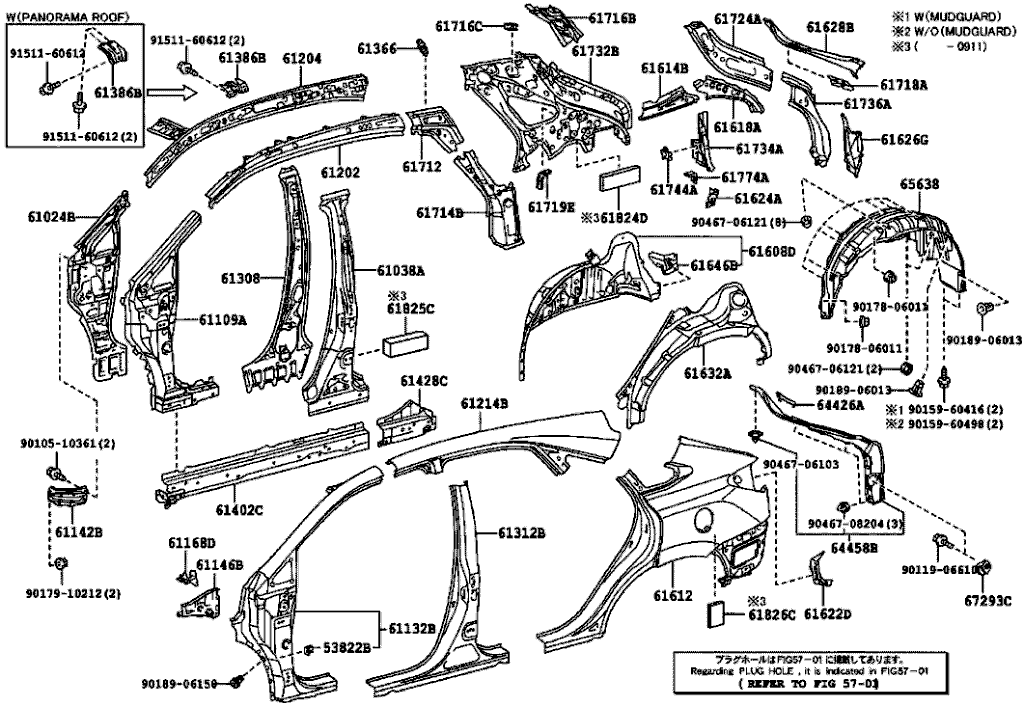

ستون لکسوس RX350 در لوازم یدکی لکسوس شامل کلیه ستون از زیر سقف لکسوس با نام کلاف سقف لکسوس تا رکاب و امتداد آن تا گلگیر عقب لکسوس می باشد . از قسمت جلو شامل ستون های جلو لکسوس RX350 , دوبل ستون های جلو لکسوس RX350 و ستون های وسط لکسوس RX350 , دوبل ستون وسط لکسوس RX350 که به رکاب لکسوس RX350 متصل میشود و ستون عقب لکسوس RX350 که به گلگیر عقب لکسوس RX350 متصل میشود و دوبل گلگیر عقب لکسوس RX350 که با نام پالونی گلگیر عقب لکسوس RX350 شناخته میشود.
| 53821B | BRACKET, FRONT FENDER, REAR RH | ||
| 53821-48030 | بست ستون جلو لکسوس RX350 | 1 | |
| 61023B | PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||
| 61023-48030 | دوبل داخلی ستون جلو لکسوس RX350 سمت راست | 1 | |
| 61037A | REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||
| 61037-48905 | دوبل ستون وسط لکسوس RX350 راست | 1 | |
| 61108A | REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||
| 61108-48903 | دوبل ستون جلو لکسوس RX350 راست | 1 | |
| 61131C | PILLAR, FRONT BODY, OUTER RH | ||
| 61131-48060 | ستون لکسوس RX350 جلو راست | 1 | |
| 61141B | GUSSET, FRONT BODY PILLAR, UPPER RH | ||
| 61141-48040 | 1 | ||
| 61145B | GUSSET, FRONT BODY PILLAR, LOWER RH | ||
| 61145-48040 | 1 | ||
| 61167C | BRACKET, FRONT BODY PILLAR TO COWL TOP, RH | ||
| 61167-48020 | 1 | ||
| 61201 | RAIL SUB-ASSY, ROOF SIDE, RH | ||
| 61201-48902 | دوبل کلاف سقف لکسوس RX350 راست | 1 | |
| 61203 | RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||
| 61203-48020 | دوبل داخلی کلاف سقف لکسوس RX350 راست | 1 | |
| 61213B | RAIL, ROOF SIDE, OUTER NO.2 RH | ||
| 61213-48050 | کلاف سقف لکسوس RX350 راست | 1 | |
| 61307 | PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||
| 61307-48030 | دوبل داخلی ستون وسط لکسوس RX350 راست | 1 | |
| 61311B | PILLAR, CENTER BODY, OUTER RH | ||
| 61311-48050 | ستون وسط لکسوس RX350 راست | 1 | |
| 61365B | REINFORCE, BELT ANCHOR TO CENTER PILLAR, NO.3 RH | ||
| 61365-60040 | 1 | € 10.45 | |
| 61385B | EXTENSION, CENTER BODY PILLAR, INNER RH | ||
| 61385-48020 | 1 | ||
| 61385-48030 | WITH(PANORAMA ROOF=FIXED) | 1 | |
| 61401C | PANEL SUB-ASSY, ROCKER, OUTER RH | ||
| 61401-48902 | رکاب لکسوس RX350 راست | 1 | |
| 61427 | REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||
| 61427-48060 | 1 | ||
| 61607E | PANEL, QUARTER WHEEL HOUSE, INNER RH | ||
| 61607-48050 | دوبل پالونی گلگیر عقب لکسوس RX350 راست | 1 | |
| 61611 | PANEL, QUARTER, RH | ||
| 61611-48102 | گلگیر عقب لکسوس RX350 راست | 1 | |
| 61613B | PANEL, QUARTER, INNER FRONT RH | ||
| 61613-48060 | 1 | ||
| 61617A | PANEL, QUARTER INNER, REAR RH | ||
| 61617-48020 | 1 | ||
| 61621D | TROUGH, BACK DOOR OPENING, RH | ||
| 61621-48060 | 1 | ||
| 61623A | EXTENSION, QUARTER PANEL, OUTER RH | ||
| 61623-48010 | 1 | ||
| 61625G | EXTENSION, QUARTER PANEL, REAR RH | ||
| 61625-48030 | 1 | ||
| 61627B | EXTENSION, QUARTER PANEL, UPPER REAR RH | ||
| 61627-48060 | 1 | ||
| 61631A | PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||
| 61631-48060 | پالونی گلگیر عقب لکسوس RX350 راست | 1 | |
| 61645B | GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||
| 61645-48040 | 1 | ||
| 61711 | PANEL, ROOF SIDE, OUTER RH | ||
| 61711-48050 | 1 | ||
| 61713B | REINFORCE, ROOF SIDE, OUTER RH | ||
| 61713-48040 | 1 | ||
| 61715B | EXTENSION, ROOF SIDE, INNER FRONT RH | ||
| 61715-48050 | 1 | ||
| 61717A | REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||
| 61717-48040 | 1 | ||
| 61719D | BRACKET, ROOF SIDE, INNER RH | ||
| 61719-48030 | 1 | ||
| 61723A | REINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1 | ||
| 61723-48060 | 1 | ||
| 61731B | PANEL, ROOF SIDE, INNER RH | ||
| 61731-48060 | 1 | ||
| 61733A | PANEL, ROOF SIDE, INNER FRONT RH | ||
| 61733-48060 | 1 | ||
| 61735A | PANEL, ROOF SIDE, INNER REAR RH | ||
| 61735-48050 | 1 | ||
| 61743A | REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||
| 61743-48020 | 1 | ||
| 61773A | PATCH, BACK DOOR OPENING, LOWER RH | ||
| 61773-48010 | 1 | ||
| 61824D | PLATE, NOISE CONTROL, NO.1 | ||
| Not applicable | |||
| 61825C | PAD, NOISE SHUTTER, NO.2 | ||
| Not applicable | |||
| 61827A | PLATE, NOISE CONTROL, NO.4 | ||
| Not applicable | |||
| 64425A | PLUG, QUARTER PANEL, RH | ||
| 64425-48010 | 1 | ||
| 64457B | COVER, BACK DOOR STOPPER CUSHION, RH | ||
| 64457-48020 | 1 | ||
| 65637 | |||
| 65637-48030 | شلگیر عقب لکسوس RX350 راست | 1 | |
| 67293C | CUSHION, BACK DOOR STOPPER | ||
| 67293-48060 | 2 | ||
| 90105-10361 | *** STD. PART | € 1.16 | |
| 90119-06610 | *** STD. PART | € 0.78 | |
| 90159-60416 | *** STD. PART | € 0.88 | |
| 90159-60498 | *** STD. PART | € 0.78 | |
| 90178-06011 | *** STD. PART | € 0.92 | |
| 90179-10212 | *** STD. PART | € 0.99 | |
| 90189-06013 | *** STD. PART | € 0.88 | |
| 90189-06150 | *** STD. PART | € 0.88 | |
| 90467-06121 | *** STD. PART | € 4.10 | |
| 91511-60612 | *** STD. PART | € 1.80 | |
قسمت چپ ستون ها بدین شکل میباشد :
| 53822B | BRACKET, FRONT FENDER, REAR LH | ||
| 53821-48030 | 1 | ||
| 61024B | PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||
| 61024-48030 | دوبل داخلی ستون جلو لکسوس RX350 چپ | 1 | |
| 61038A | REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||
| 61038-48906 | دوبل ستون وسط لکسوس RX350 چپ | 1 | |
| 61109A | REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||
| 61109-48903 | دوبل ستون جلو لکسوس RX350 چپ | 1 | |
| 61132B | PILLAR, FRONT BODY, OUTER LH | ||
| 61132-48060 | ستون جلو لکسوس RX350 چپ | 1 | |
| 61142B | GUSSET, FRONT BODY PILLAR, UPPER LH | ||
| 61142-48040 | 1 | ||
| 61146B | GUSSET, FRONT BODY PILLAR, LOWER LH | ||
| 61146-48040 | 1 | ||
| 61168D | BRACKET, FRONT BODY PILLAR TO COWL TOP, LH | ||
| 61168-48020 | 1 | ||
| 61202 | RAIL SUB-ASSY, ROOF SIDE, LH | ||
| 61202-48902 | دوبل کلاف سقف لکسوس RX350 چپ | 1 | |
| 61204 | RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||
| 61204-48020 | دوبل داخلی کلاف سقف لکسوس RX350 چپ | 1 | |
| 61214B | RAIL, ROOF SIDE, OUTER NO.2 LH | ||
| 61214-48050 | کلاف سقف لکسوس RX350 چپ | 1 | |
| 61308 | PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||
| 61308-48030 | دوبل داخلی ستون وسط لکسوس RX350 چپ | 1 | |
| 61312B | PILLAR, CENTER BODY, OUTER LH | ||
| 61312-48050 | ستون وسط لکسوس RX350 چپ | 1 | |
| 61366 | REINFORCE, BELT ANCHOR TO CENTER PILLER, NO.3 LH | ||
| 61365-60040 | 1 | € 10.45 | |
| 61386B | EXTENSION, CENTER BODY PILLAR, INNER LH | ||
| 61385-48020 | 1 | ||
| 61385-48030 | WITH(PANORAMA ROOF=FIXED) | 1 | |
| 61402C | PANEL SUB-ASSY, ROCKER, OUTER LH | ||
| 61402-48902 | رکاب لکسوس RX350 چپ | 1 | |
| 61428C | REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||
| 61428-48060 | 1 | ||
| 61608D | PANEL, QUARTER WHEEL HOUSE, INNER LH | ||
| 61608-48050 | دوبل پالونی گلگیر عقب لکسوس RX350 چپ | 1 | |
| 61612 | PANEL, QUARTER, LH | ||
| 61612-48102 | گلگیر عقب لکسوس RX350 چپ | 1 | |
| 61614B | PANEL, QUARTER, INNER FRONT LH | ||
| 61614-48060 | 1 | ||
| 61618A | PANEL, QUARTER, INNER REAR LH | ||
| 61618-48020 | 1 | ||
| 61622D | TROUGH, BACK DOOR OPENING, LH | ||
| 61622-48050 | 1 | ||
| 61624A | EXTENSION, QUARTER PANEL, OUTER LH | ||
| 61624-48010 | 1 | ||
| 61626G | EXTENSION, QUARTER PANEL, REAR LH | ||
| 61626-48030 | 1 | ||
| 61628B | EXTENSION, QUARTER PANEL, UPPER REAR LH | ||
| 61628-48050 | 1 | ||
| 61632A | PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||
| 61632-48060 | پالونی گلگیر عقب لکسوس RX350 چپ | 1 | |
| 61646B | GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||
| 61646-48040 | 1 | ||
| 61712 | PANEL, ROOF SIDE, OUTER LH | ||
| 61712-48050 | 1 | ||
| 61714B | REINFORCE, ROOF SIDE, OUTER LH | ||
| 61714-48040 | 1 | ||
| 61716B | EXTENSION, ROOF SIDE, INNER FRONT LH | ||
| 61716-48030 | 1 | ||
| 61716C | BRACKET, ROOF SIDE, LH | ||
| 55137-12010 | 1 | € 6.67 | |
| 61718A | REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||
| 61718-48020 | 1 | ||
| 61719E | BRACKET, ROOF SIDE, INNER LH | ||
| 61719-48030 | 1 | ||
| 61724A | REINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1 | ||
| 61724-48060 | 1 | ||
| 61732B | PANEL, ROOF SIDE, INNER LH | ||
| 61732-48060 | 1 | ||
| 61734A | PANEL, ROOF SIDE, INNER FRONT LH | ||
| 61734-48060 | 1 | ||
| 61736A | PANEL, ROOF SIDE, INNER REAR LH | ||
| 61736-48050 | 1 | ||
| 61744A | REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||
| 61744-48030 | 1 | ||
| 61774A | PATCH, BACK DOOR OPENING, LOWER LH | ||
| 61773-48010 | 1 | ||
| 61824D | PLATE, NOISE CONTROL, NO.1 | ||
| Not applicable | |||
| 61825C | PAD, NOISE SHUTTER, NO.2 | ||
| Not applicable | |||
| 61826C | PAD, NOISE SHUTTER, NO.3 | ||
| Not applicable | |||
| 64426A | PLUG, QUARTER PANEL, LH | ||
| 64426-48010 | 1 | ||
| 64458B | COVER, BACK DOOR STOPPER CUSHION, LH | ||
| 64458-48020 | 1 | ||
| 65638 | LINER, REAR WHEEL HOUSE, LH | ||
| 65638-48030 | شلگیر عقب لکسوس RX350 چپ | 1 | |
| 67293C | CUSHION, BACK DOOR STOPPER | ||
| 67293-48060 | 2 | ||
| 90105-10361 | *** STD. PART | € 1.16 | |
| 90119-06610 | *** STD. PART | € 0.78 | |
| 90159-60416 | *** STD. PART | € 0.88 | |
| 90159-60498 | *** STD. PART | € 0.78 | |
| 90178-06011 | *** STD. PART | € 0.92 | |
| 90179-10212 | *** STD. PART | € 0.99 | |
| 90189-06013 | *** STD. PART | € 0.88 | |
| 90189-06150 | *** STD. PART | € 0.88 | |
| 90467-06121 | *** STD. PART | € 4.10 | |
| 91511-60612 | *** STD. PART | € 1.80 | |
