درب عقب لکسوس RX350 2009-2015
درب عقب لکسوس RX350 جزو لوازم بدنه در لوازم یدکی لکسوس شامل درب خام لکسوس RX350 , رودری از داخل و بیرون RX350, نوار دور درب RX350, زه آبگیر RX350, ترمز درب لکسوس RX350 که در جدول زیر به تفکیک قطعات با شماره فنی ذکر شده:
| 67003 | PANEL SUB-ASSY, REAR DOOR, RH | ||
| 67003-48130 | درب عقب لکسوس RX350 راست | 1 | |
| 67003C | CUSHION, REAR DOOR PANEL | ||
| 90541-09069 | 2 | € 2.96 | |
| 67004 | PANEL SUB-ASSY, REAR DOOR, LH | ||
| 67004-48130 | درب عقب لکسوس RX350 چپ | 1 | |
| 67113 | PANEL, REAR DOOR, OUTER RH | ||
| 67113-48060 | رو دری از بیرون درب عقب لکسوس RX350 راست | 1 | |
| 67114 | PANEL, REAR DOOR, OUTER LH | ||
| 67114-48060 | رو دری از بیرون درب عقب لکسوس RX350 چپ | 1 | |
| 67407D | GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||
| 67407-48050 | زه لبه شیشه درب عقب لکسوس RX350 راست | 1 | |
| 67408D | GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||
| 67408-48050 | زه لبه شیشه درب عقب لکسوس RX350 چپ | 1 | |
| 67487C | SEAL, REAR DOOR REAR GUIDE, RH | ||
| 67487-48040 | 1 | ||
| 67488C | SEAL, REAR DOOR REAR GUIDE, LH | ||
| 67488-48040 | 1 | ||
| 67673A | GARNISH, REAR DOOR FRAME, RH | ||
| 67673-48031 | 1 | ||
| 67674A | GARNISH, REAR DOOR FRAME, LH | ||
| 67674-48031 | 1 | ||
| 67813E | SHEET, QUARTER PANEL SILENCER, RH | ||
| 67817-47010 | 1 | € 13.84 | |
| 67814E | SHEET, QUARTER PANEL SILENCER, LH | ||
| 67817-47010 | 1 | € 13.84 | |
| 67841E | COVER, REAR DOOR SERVICE HOLE, RH | ||
| 67841-48050 | کاور روی باند درب عقب لکسوس RX350 راست | 1 | |
| 67842E | COVER, REAR DOOR SERVICE HOLE, LH | ||
| 67842-48050 | کاور روی باند درب عقب لکسوس RX350 چپ | 1 | |
| 67847B | SEAL, REAR DOOR VENT, RH NO.1 | ||
| 67847-48040 | 1 | ||
| 67847F | SEAL, REAR DOOR VENT, LH | ||
| 67847-48040 | 1 | ||
| 67867B | CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||
| 90467-04034 | 2 | € 0.81 | |
| 67867D | RETAINER, REAR DOOR WEATHERSTRIP, RH | ||
| 67867-12150 | 16 | € 2.62 | |
| 67868D | RETAINER, REAR DOOR WEATHERSTRIP, LH | ||
| 67867-12150 | 16 | € 2.62 | |
| 67868G | RETAINER, DOOR WEATHERSTRIP | ||
| 67867-12150 | 2 | € 2.62 | |
| 67871 | WEATHERSTRIP, REAR DOOR, RH | ||
| 67871-48060 | لاستیک دور درب عقب لکسوس RX350 راست | 1 | |
| 67872 | WEATHERSTRIP, REAR DOOR, LH | ||
| 67872-48060 | لاستیک دور درب عقب لکسوس RX350 چپ | 1 | |
| 68103 | شیشه درب عقب لکسوس RX350 راست | ||
| 68103-48100 | TEMPERED GLASS, T=4.0, DARK GLAY | 1 | |
| 68103-48110 | UV (ULTRAVIOLET) CUT, TEMPERED GLASS, T=4.0, GREEN, GCC SPEC | 1 | |
| 68104 | شیشه درب عقب لکسوس RX350 چپ | ||
| 68104-48130 | TEMPERED GLASS, T=4.0, DARK GLAY | 1 | |
| 68104-48140 | UV (ULTRAVIOLET) CUT, TEMPERED GLASS, T=4.0, GREEN, GCC SPEC | 1 | |
| 68142C | نوار دور شیشه درب عقب لکسوس RX350 راست | ||
| 68142-48050 | MARK 68142-48050 | 1 | |
| 68152C | نوار دور شیشه درب عقب لکسوس RX350 چپ | ||
| 68152-48050 | MARK 68152-48050 | 1 | |
| 68196B | SEAL, REAR DOOR BELT, FRONT RH | ||
| Not applicable | |||
| 68197A | SEAL, REAR DOOR BELT, FRONT LH | ||
| Not applicable | |||
| 68198 | SEAL, REAR DOOR BELT, REAR RH | ||
| Not applicable | |||
| 68199 | SEAL, REAR DOOR BELT, REAR LH | ||
| Not applicable | |||
| 68621C | COVER, REAR DOOR CHECK, RH | ||
| 68621-53010 | 1 | € 2.89 | |
| 68622A | COVER, REAR DOOR CHECK, LH | ||
| 68622-53010 | 1 | € 2.89 | |
| 68630D | CHECK ASSY, REAR DOOR, RH | ||
| 68630-48051 | ترمز درب عقب لکسوس RX350 راست | 1 | |
| 68640A | CHECK ASSY, REAR DOOR, LH | ||
| 68640-48041 | ترمز درب عقب لکسوس RX350 چپ | 1 | |
| 90109-08295 | *** STD. PART | € 0.92 | |
| 90159-60303 | *** STD. PART | € 0.92 | |
| 90161-40020 | *** STD. PART | € 0.88 | |
| 90467-05161-B4 | *** STD. PART | € 0.85 | |
| 90467-10161 | *** STD. PART | € 0.78 | |
| 90950-01841 | *** STD. PART | € 2.65 | |
| 90950-01958 | *** STD. PART | € 3.21 | |
| 91631-B0616 | *** STD. PART | € 0.71 | |
| 94151-80600 | *** STD. PART | € 0.63 | |

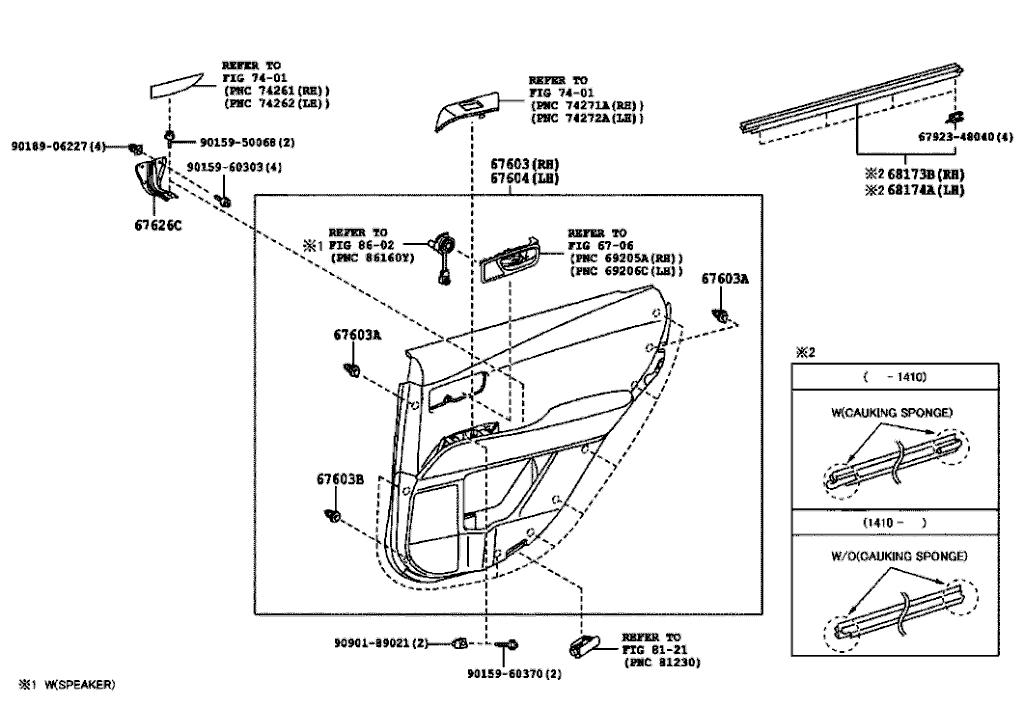

رو دربی عقب و اجزا ان بدین شکل میباشد
| 67603 | BOARD SUB-ASSY, REAR DOOR TRIM, RH رودری از داخل درب عقب لکسوس RX350 راست | ||
| 67630-48591-C6 | LT.GRAY, TRIM1* | 1 | |
| 67630-48591-C8 | BLACK, TRIM2* | 1 | |
| 67630-48591-E2 | IVORY, TRIM0* | 1 | |
| 67630-48601-C6 | AUDIO-CD CHANGER, 12SPEAKER, LT.GRAY, TRIM1* | 1 | |
| 67630-48601-C8 | AUDIO-CD CHANGER, 12SPEAKER, BLACK, TRIM2* | 1 | |
| 67630-48601-E2 | AUDIO-CD CHANGER, 12SPEAKER, IVORY, TRIM0* | 1 | |
| 67630-48611-C6 | AUDIO-DVD CHANGER, 15SPEAKER, MARK LEVINSON, LT.GRAY, TRIM1* | 1 | |
| 67630-48611-C8 | AUDIO-DVD CHANGER, 15SPEAKER, MARK LEVINSON, BLACK, TRIM2* | 1 | |
| 67630-48611-E2 | AUDIO-DVD CHANGER, 15SPEAKER, MARK LEVINSON, IVORY, TRIM0* | 1 | |
| 67603A | RETAINER(FOR REAR DOOR TRIM BOARD) | ||
| 67771-32120 | 4 | € 3.25 | |
| 67603B | CLIP(FOR REAR DOOR TRIM BOARD) | ||
| 90467-09206 | 16 | € 1.10 | |
| 67604 | BOARD SUB-ASSY, REAR DOOR TRIM, LH رودری از داخل درب عقب لکسوس RX350 چپ | ||
| 67640-48591-C6 | LT.GRAY, TRIM1* | 1 | |
| 67640-48591-C8 | BLACK, TRIM2* | 1 | |
| 67640-48591-E2 | IVORY, TRIM0* | 1 | |
| 67640-48601-C6 | AUDIO-CD CHANGER, 12SPEAKER, LT.GRAY, TRIM1* | 1 | |
| 67640-48601-C8 | AUDIO-CD CHANGER, 12SPEAKER, BLACK, TRIM2* | 1 | |
| 67640-48601-E2 | AUDIO-CD CHANGER, 12SPEAKER, IVORY, TRIM0* | 1 | |
| 67640-48611-C6 | AUDIO-DVD CHANGER, 15SPEAKER, MARK LEVINSON, LT.GRAY, TRIM1* | 1 | |
| 67640-48611-C8 | AUDIO-DVD CHANGER, 15SPEAKER, MARK LEVINSON, BLACK, TRIM2* | 1 | |
| 67640-48611-E2 | AUDIO-DVD CHANGER, 15SPEAKER, MARK LEVINSON, IVORY, TRIM0* | 1 | |
| 67626C | BRACKET, REAR DOOR TRIM, NO.2 | ||
| 67645-48020 | 2 | ||
| 67923-48040 | *** STD. PART | ||
| 68173B | WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||
| 68173-48050 | زه آبگیر شیشه از داخل درب عقب لکسوس RX350 راست | 1 | |
| 68174A | WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||
| 68174-48050 | زه آبگیر شیشه از داخل درب عقب لکسوس RX350 چپ | 1 | |
| 90159-50068 | *** STD. PART | € 0.78 | |
| 90159-60303 | *** STD. PART | € 0.92 | |
| 90159-60370 | *** STD. PART | € 0.92 | |
| 90189-06227 | *** STD. PART | € 0.74 | |
| 90901-89021 | *** STD. PART | € 4.80 | |
