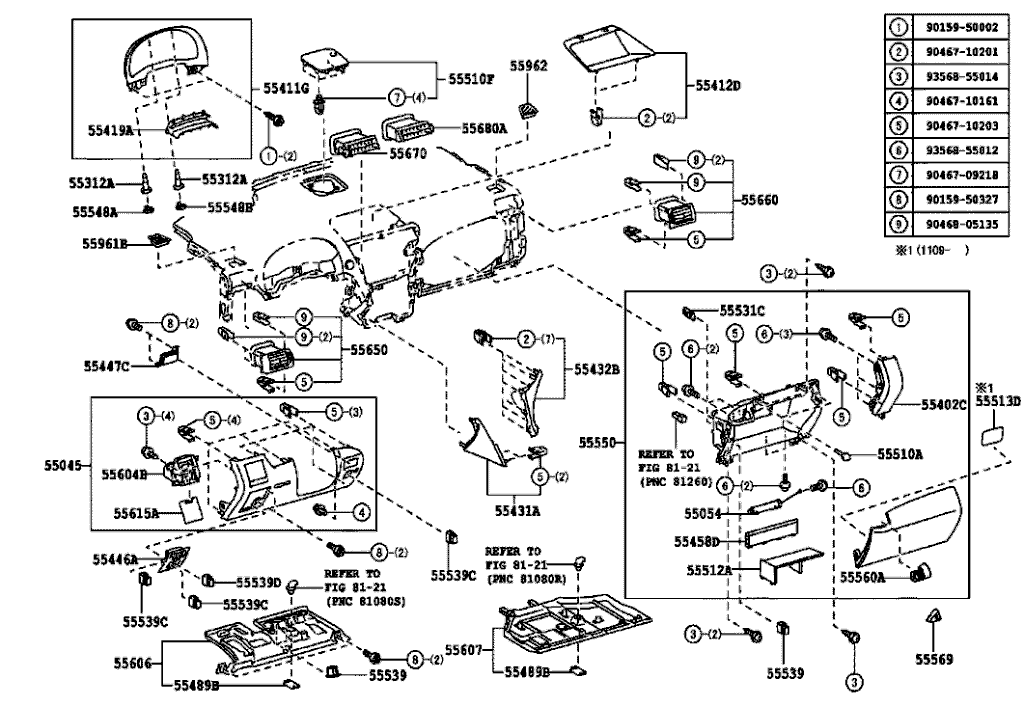

داشبورد لکسوس RX350 2009-2012
داشبورد لکسوس RX350 دارای دو رنگ مشکی و قهوه ای است و بخش ارتباطی راننده با خودرو در لوازم یدکی لکسوس می باشد و کلیه ابزار های دسترسی راننده و امکانات و کلید های کنترلی لکسوس روی داشبورد نصب میشود , از صفحه نمایش و دریچه های کولر تا ایربگ های زانو و داشبورد و آمپر کیلومتر .
| 55306B | BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL | ||
| 55306-48120 | 1 | ||
| 55307E | BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||
| 55307-48120 | 1 | ||
| 55308C | BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||
| 55308-48080 | 1 | ||
| 55315A | SPACER, INSTRUMENT PANEL, NO.1 | ||
| 55315-48160 | 2 | ||
| 55317A | PANEL, INSTRUMENT SIDE, RH قاب روی داشبورد لکسوس RX350 سمت راست | ||
| 55317-48140-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55317-48140-E0 | DK. BROWN, TRIM0* | 1 | |
| 55318C | PANEL, INSTRUMENT SIDE, LH قاب روی داشبورد لکسوس RX350 سمت چپ | ||
| 55318-48100-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55318-48100-E0 | DK. BROWN, TRIM0* | 1 | |
| 55325B | BRACKET, INSTRUMENT PANEL, NO.5 | ||
| 55325-48040 | 2 | ||
| 55328 | PIN, INSTRUMENT PANEL, NO.1 | ||
| 55328-50160 | 2 | € 5.54 | |
| 55328A | STAY, INSTRUMENT PANEL, NO.3 | ||
| 55328-48110 | 5 | ||
| 55330B | REINFORCEMENT ASSY, INSTRUMENT PANEL | ||
| 55330-48180 | اسکلت زیر داشبورد لکسوس RX350 | 1 | |
| 55346A | CLIP, INSTRUMENT PANEL, NO.2 | ||
| 55345-12060 | 2 | € 0.92 | |
| 55377A | BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||
| 55377-48070 | 2 | ||
| 55394C | BOLT, INSTRUMENT PANEL | ||
| 55394-48030 | NO.1 | 1 | |
| 55394-48040 | NO.2 | 2 | |
| 55394-48050 | NO.3 | 1 | |
| 55394-48060 | NO.4 | 1 | |
| 55401E | داشبورد لکسوس RX350 | ||
| 55401-48120-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55401-48120-E0 | DK. BROWN, TRIM0* | 1 | |
| 55401F | CLIP(FOR SAFETY PAD) | ||
| 52161-16010 | 2 | € 2.15 | |
| 55416A | RETAINER, METER HOOD, NO.1 | ||
| 55416-30140 | 2 | € 3.04 | |
| 55443 | GARNISH, INSTRUMENT PANEL, RH | ||
| 55443-48070-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55443-48070-E0 | DK. BROWN, TRIM0* | 1 | |
| 55444 | GARNISH, INSTRUMENT PANEL, LH | ||
| 55444-48050-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55444-48050-E0 | DK. BROWN, TRIM0* | 1 | |
| 55458A | CAP, INSTRUMENT PANEL SAFETY PAD | ||
| 55458-50100 | 5 | € 2.86 | |
| 55981 | GARNISH, DEFROSTER NOZZLE, NO.1 دریچه بخار گیر شیشه روی داشبورد لکسوس RX350 | ||
| 55981-48040-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55981-48040-E0 | DK. BROWN, TRIM0* | 1 | |
| 55981-48060-C0 | HEAD UP DISPLAY-WITH, BLACK, TRIM1*, 2* | 1 | |
| 55981-48060-E0 | HEAD UP DISPLAY-WITH, DK. BROWN, TRIM0* | 1 | |
| 69065 | CYLINDER SUB-ASSY, AIR BAG CUT OFF SW | ||
| Not applicable | |||
| 73900 | AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 ایربگ زانویی لکسوس RX350 سمت راننده | ||
| 73900-48060-A0 | IVORY, TRIM0* | 1 | |
| 73900-48060-B0 | LT.GRAY, TRIM1* | 1 | |
| 73900-48060-C0 | BLACK, TRIM2* | 1 | |
| 73960A | AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||
| 73960-48060 | ایربگ داشبورد لکسوس RX350 ایربگ شاگرد | 1 | |
| 73990 | ایربگ زانویی لکسوس RX350 سمت شلگرد | ||
| 73990-48020-A0 | IVORY, TRIM0* | 1 | |
| 73990-48020-B0 | LT.GRAY, TRIM1* | 1 | |
| 73990-48020-C0 | BLACK, TRIM2* | 1 | |
| 82140 | WIRE ASSY, INSTRUMENT PANEL | ||
| 82140-48010 | 1 | ||
| 90084-46027 | *** STD. PART | € 0.92 | |
| 90105-08120 | *** STD. PART | € 1.20 | |
| 90119-06951 | *** STD. PART | € 0.88 | |
| 90119-08C20 | *** STD. PART | € 0.99 | |
| 90159-50327 | *** STD. PART | € 0.78 | |
| 90179-06278 | *** STD. PART | € 1.13 | |
| 90179-06288 | *** STD. PART | € 0.78 | |
| 90183-05094 | *** STD. PART | € 1.06 | |
| 90467-10201 | *** STD. PART | € 1.20 | |
| 90468-04175 | *** STD. PART | € 0.46 | |
| 91631-60816 | *** STD. PART | € 1.13 | |
| 91673-80616 | *** STD. PART | € 0.63 | |
| 94150-80800 | *** STD. PART | € 0.99 | |
قسمت دوم داشبورد بدین شکل میباشد :
| 55045 | PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||
| 55045-48160-A0 | IVORY, TRIM0* | 1 | |
| 55045-48160-B0 | LT.GRAY, TRIM1* | 1 | |
| 55045-48160-C0 | BLACK, TRIM2* | 1 | |
| 55054 | STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||
| 55054-48050 | 1 | ||
| 55312A | CLIP, INSTRUMENT PANEL | ||
| 90467-07071-22 | BLACK | 2 | € 0.88 |
| 55402C | PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||
| 55403-48040-A0 | IVORY, TRIM0* | 1 | |
| 55403-48040-B0 | LT.GRAY, TRIM1* | 1 | |
| 55403-48040-C0 | BLACK, TRIM2* | 1 | |
| 55411G | PANEL, INSTRUMENT CLUSTER FINISH, NO.1 قاب آمپر لکسوس RX350 | ||
| 55404-48060-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55404-48060-E0 | DK. BROWN, TRIM0* | 1 | |
| 55412D | PANEL, INSTRUMENT CLUSTER FINISH, CENTER قاب دور مانیتور لکسوس RX350 | ||
| 55405-48190-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55405-48190-E0 | DK. BROWN, TRIM0* | 1 | |
| 55419A | CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||
| 55419-48010-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55419-48010-E0 | DK. BROWN, TRIM0* | 1 | |
| 55431A | PANEL, INSTRUMENT PANEL FINISH | ||
| 55431-48020-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55431-48020-E0 | DK. BROWN, TRIM0* | 1 | |
| 55432B | PANEL, INSTRUMENT PANEL FINISH, LOWER | ||
| 55432-48400-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55432-48400-E0 | DK. BROWN, TRIM0* | 1 | |
| 55446A | BASE, SWITCH HOLE, NO.1 | ||
| 55446-48050-A0 | IVORY, TRIM0* | 1 | |
| 55446-48050-B0 | LT.GRAY, TRIM1* | 1 | |
| 55446-48050-C0 | BLACK, TRIM2* | 1 | |
| 55447C | BASE, SWITCH HOLE, NO.2 | ||
| 55447-48070-A0 | IVORY, TRIM0* | 1 | |
| 55447-48070-B0 | LT.GRAY, TRIM1* | 1 | |
| 55447-48070-C0 | BLACK, TRIM2* | 1 | |
| 55458D | COVER, INSTRUMENT LOWER, RH | ||
| 55459-48040 | 1 | ||
| 55489B | LENS, FRONT FOOT LAMP, NO.2 | ||
| 55489-50010 | 1 | € 7.13 | |
| 55510A | CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||
| 90541-04002 | 2 | € 1.13 | |
| 55510F | COVER ASSY, SPEAKER OPENING, NO.1 قاب اسپیکر روی داشبورد لکسوس RX350 | ||
| 55510-48030-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55510-48030-E0 | DK. BROWN, TRIM0* | 1 | |
| 55510-48040-C0 | AUDIO-DVD CHANGER, 15SPEAKER, MARK LEVINSON, BLACK, TRIM1*, 2* | 1 | |
| 55510-48040-E0 | AUDIO-DVD CHANGER, 15SPEAKER, MARK LEVINSON, DK. BROWN, TRIM0* | 1 | |
| 55512A | PLATE, GLOVE COMPARTMENT | ||
| 55512-48040 | 1 | ||
| 55513D | PLATE, GLOVE COMPARTMENT, NO.2 | ||
| Not applicable | |||
| 55531C | PIN, GLOVE DOOR STOPPER | ||
| 55531-48030 | 1 | ||
| 55539 | COVER, SPARE SWITCH HOLE | ||
| 55539-48020 | 1 | € 4.84 | |
| 55539C | COVER, SPARE SWITCH HOLE | ||
| 55539-48040 | 1 | ||
| 55539D | COVER, SPARE SWITCH HOLE | ||
| 55539-48050 | 1 | ||
| 55548A | COVER, INSTRUMENT PANEL HOLE | ||
| 55548-48020-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55548-48020-E0 | DK. BROWN, TRIM0* | 1 | |
| 55548B | COVER, INSTRUMENT PANEL HOLE | ||
| 55549-48010-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55549-48010-E0 | DK. BROWN, TRIM0* | 1 | |
| 55550 | درب داشبورد لکسوس RX350 | ||
| 55550-48020-A0 | IVORY, TRIM0* | 1 | |
| 55550-48020-B0 | LT.GRAY, TRIM1* | 1 | |
| 55550-48020-C0 | BLACK, TRIM2* | 1 | |
| 55560A | قفل درب داشبورد لکسوس RX350 | ||
| 55560-48040-A0 | IVORY, TRIM0* | 1 | |
| 55560-48040-B0 | LT.GRAY, TRIM1* | 1 | |
| 55560-48040-C0 | BLACK, TRIM2* | 1 | |
| 55569 | COVER, GLOVE COMPARTMENT DOOR LOCK | ||
| 55569-48020-A0 | IVORY, TRIM0* | 1 | |
| 55569-48020-B0 | LT.GRAY, TRIM1* | 1 | |
| 55569-48020-C0 | BLACK, TRIM2* | 1 | |
| 55604B | HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||
| 55618-48200 | 1 | ||
| 55606 | COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||
| 55606-48020 | 1 | ||
| 55607 | COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||
| 55607-48180 | 1 | ||
| 55615A | CASE, INSTRUMENT PANEL CUP HOLDER, OUTER | ||
| 55615-48090-A0 | IVORY, TRIM0* | 1 | |
| 55615-48090-B0 | LT.GRAY, TRIM1* | 1 | |
| 55615-48090-C0 | BLACK, TRIM2* | 1 | |
| 55650 | REGISTER ASSY, INSTRUMENT PANEL, NO.1 دریچه کولر لکسوس RX350 سمت راننده | ||
| 55650-48070-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55650-48070-E0 | DK. BROWN, TRIM0* | 1 | |
| 55660 | REGISTER ASSY, INSTRUMENT PANEL, NO.2 دریچه کولر لکسوس RX350 سمت شاگرد | ||
| 55660-48070-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55660-48070-E0 | DK. BROWN, TRIM0* | 1 | |
| 55670 | REGISTER ASSY, INSTRUMENT PANEL, NO.3 دریچه کولر وسط لکسوس RX350 چپ | ||
| 55670-48070 | 1 | ||
| 55680A | REGISTER ASSY, INSTRUMENT PANEL, NO.4 دریچه کولر وسط لکسوس RX350 راست | ||
| 55680-48060 | 1 | ||
| 55961B | NOZZLE, SIDE DEFROSTER, NO.1 دریچه بخار گیر شیشه روی داشبورد لکسوس RX350 سمت راننده | ||
| 55961-48030-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55961-48030-E0 | DK. BROWN, TRIM0* | 1 | |
| 55962 | NOZZLE, SIDE DEFROSTER, NO.2 دریچه بخار گیر شیشه روی داشبورد لکسوس RX350 سمت شاگرد | ||
| 55962-48030-C0 | BLACK, TRIM1*, 2* | 1 | |
| 55962-48030-E0 | DK. BROWN, TRIM0* | 1 | |
| 90159-50002 | *** STD. PART | € 0.99 | |
| 90159-50327 | *** STD. PART | € 0.78 | |
| 90467-09218 | *** STD. PART | € 1.06 | |
| 90467-10161 | *** STD. PART | € 0.78 | |
| 90467-10201 | *** STD. PART | € 1.20 | |
| 90467-10203 | *** STD. PART | € 0.81 | |
| 90468-05135 | *** STD. PART | € 1.10 | |
| 93568-55012 | *** STD. PART | € 0.60 | |
