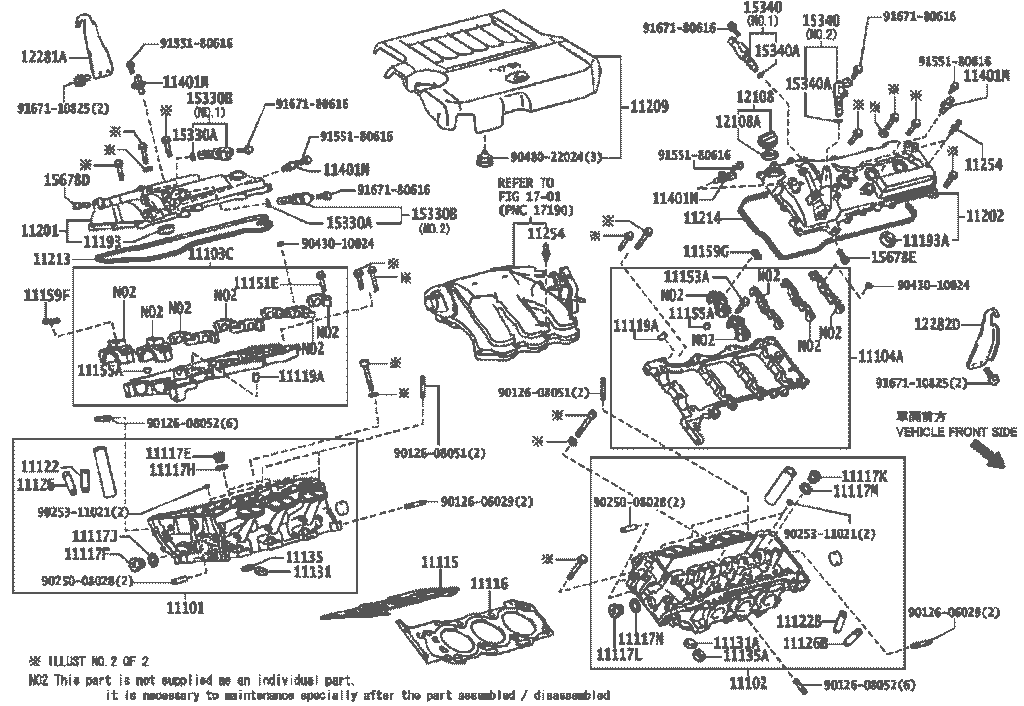

سرسیلندر و درب سوپاپ لکسوس RX350 مدل2008
| 11101 | HEAD SUB-ASSY, CYLINDER | ||
| 11101-39535 | سرسیلندر | 1 | $1,753.59 |
| 11102 | HEAD, CYLINDER, LH | ||
| 11102-39055 | سر سیلندر چپ | 1 | $1,753.59 |
| 11103C | HOUSING SUB-ASSY, CAMSHAFT, RH | ||
| 11103-31021 | (04/2006 – 12/2007) | 1 | $262.13 |
| 11103-31022 | (01/2008 – 11/2008) | 1 | $262.13 |
| 11104A | HOUSING SUB-ASSY, CAMSHAFT, LH | ||
| 11104-31021 | (04/2006 – 12/2007) | 1 | $261.30 |
| 11104-31022 | (01/2008 – 11/2008) | 1 | $261.30 |
| 11115 | GASKET, CYLINDER HEAD | ||
| 11115-31060 | واشر سر سیلندر | 1 | $59.43 |
| 11116 | GASKET, CYLINDER HEAD, NO.2 | ||
| 11116-31040 | واشر سر سیلندر 2 | 1 | $59.43 |
| 11117E | PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||
| 90341-20012 | 2 | $6.05 | |
| 11117F | PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||
| 90341-27006 | 1 | $10.44 | |
| 11117H | GASKET(FOR WATER HOLE) | ||
| 90430-20004 | 2 | $1.34 | |
| 11117J | GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||
| 90430-27005 | 1 | $2.69 | |
| 11117K | PLUG, W/HEAD STRAIGHT SCREW, LH NO.1 | ||
| 90341-20012 | 2 | $6.05 | |
| 11117L | PLUG, W/HEAD STRAIGHT SCREW, LH NO.2 | ||
| 90341-27006 | 1 | $10.44 | |
| 11117M | GASKET(FOR WATER HOLE NO.2) | ||
| 90430-20004 | 2 | $1.34 | |
| 11117N | GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2) | ||
| 90430-27005 | 1 | $2.69 | |
| 11119A | PIN, STRAIGHT, NO.1 | ||
| 90250-05021 | L=13.8, OD=5.0 | 3 | $0.79 |
| 11122 | گاید سوپاپ (گیت) | ||
| 11122-31050 | STD | 6 | $12.73 |
| 11123-31050 | O/S 0.05 | 6 | $12.73 |
| 11122B | گاید سوپاپ (گیت) 2 | ||
| 11122-31050 | STD | 6 | $12.73 |
| 11123-31050 | O/S 0.05 | 6 | $12.73 |
| 11126 | گاید سوپاپ دود | ||
| 11126-31030 | STD | 6 | $12.73 |
| 11127-31030 | O/S 0.05 | 6 | $12.73 |
| 11126B | گاید سوپاپ دود 2 | ||
| 11126-31030 | STD | 6 | $12.73 |
| 11127-31030 | O/S 0.05 | 6 | $12.73 |
| 11131 | SEAT, INTAKE VALVE | ||
| 11131-31050 | STD | 6 | $10.36 |
| 11132-31050 | O/S 0.03 | 6 | $11.23 |
| 11131A | SEAT, INTAKE VALVE, NO.2 | ||
| 11131-31050 | STD | 6 | $10.36 |
| 11132-31050 | O/S 0.03 | 6 | $11.23 |
| 11135 | SEAT, EXHAUST VALVE | ||
| 11135-31080 | STD | 6 | $11.23 |
| 11136-31080 | O/S 0.03 | 6 | $11.23 |
| 11135A | SEAT, EXHAUST VALVE, NO.2 | ||
| 11135-31080 | STD | 6 | $11.23 |
| 11136-31080 | O/S 0.03 | 6 | $11.23 |
| 11151E | BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) | ||
| 90119-07009 | 8 | $1.11 | |
| 11153A | BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1) | ||
| 90119-07009 | 8 | $1.11 | |
| 11155A | PIN, RING W/HEAD | ||
| 90253-11021 | 10 | $2.13 | |
| 11159F | GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH | ||
| 11159-31010 | 2 | $2.13 | |
| 11159G | GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH | ||
| 11159-31010 | 2 | $2.13 | |
| 11193 | GASKET, SPARK PLUG TUBE | ||
| 11193-70010 | 3 | $3.52 | |
| 11193A | GASKET, SPARK PLUG TUBE, LH | ||
| 11193-70010 | 3 | $3.52 | |
| 11201 | COVER SUB-ASSY, CYLINDER HEAD | ||
| 11201-31250 | درب سوپاپ | 1 | $350.61 |
| 11202 | COVER SUB-ASSY, CYLINDER HEAD, LH | ||
| 11202-31030 | درب سوپاپ چپ | 1 | $375.09 |
| 11209 | COVER SUB-ASSY, V-BANK | ||
| 11209-31150 | قالپاق موتور | 1 | $251.06 |
| 11213 | GASKET, CYLINDER HEAD COVER | ||
| 11213-31050 | واشر درب سوپاپ | 1 | $23.37 |
| 11214 | GASKET, CYLINDER HEAD COVER, NO.2 | ||
| 11214-31020 | واشر درب سوپاپ 2 | 1 | $23.37 |
| 11254 | BRACKET, V-BANK COVER, NO.1 | ||
| 11254-31020 | خنک کندده منیفولد | 3 | $2.73 |
| 11401M | SENSOR, CRANK POSITION, NO.2 | ||
| 90919-05060 | سنسور موقعیت میل لنگ | 4 | $130.87 |
| 12108 | CAP SUB-ASSY, OIL FILLER | ||
| 12180-28010 | درب روغن | 1 | $18.27 |
| 12108A | GASKET(FOR OIL FILLER CAP) | ||
| 90430-37004 | 1 | $1.94 | |
| 12281A | HANGER, ENGINE, NO.1 | ||
| 12281-31120 | 1 | $38.55 | |
| 12282D | HANGER, ENGINE, NO.2 | ||
| 12282-31100 | 1 | $36.18 | |
| 15330A | RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||
| 90099-14137 | 2 | $3.24 | |
| 15330B | سنسور کنترل روغن (OCV) | ||
| 15330-31020 | NO.1 | 1 | $133.79 |
| 15330-31030 | NO.2 | 1 | $133.79 |
| 15340 | سنسور کنترل روغن چپ (OCV) | ||
| 15330-31020 | NO.1 | 1 | $133.79 |
| 15340-31020 | NO.2 | 1 | $135.02 |
| 15340A | RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||
| 90099-14137 | 2 | $3.24 | |
| 15678D | FILTER, OIL CONTROL VALVE, RH | ||
| 15678-46020 | 1 | $5.34 | |
| 15678E | FILTER, OIL CONTROL VALVE, LH | ||
| 15678-46020 | 1 | $5.34 |
