رادیاتور آب , مجموعه فن لکسوس RX350 مدل 2008

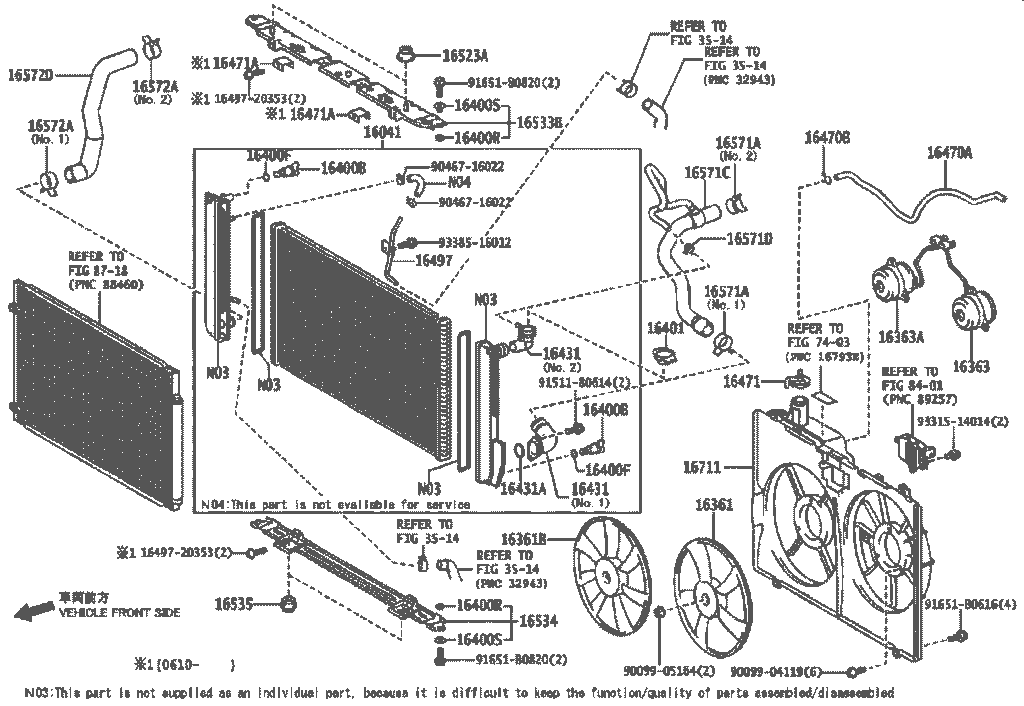

| 16041 | RADIATOR ASSY, NO.2 | ||
| 16041-31480 | رادیاتور آب | 1 | $479.56 |
| 16361 | FAN | ||
| 16361-31210 | پروانه فن سمت چپ | 1 | $62.65 |
| 16361B | FAN, NO.2 | ||
| 16361-31220 | پروانه فن سمت راست | 1 | $86.92 |
| 16363 | MOTOR, COOLING FAN | ||
| 16363-20270 | موتور فن سمت چپ | 1 | $238.18 |
| 16363A | MOTOR, COOLING FAN, NO.2 | ||
| 16363-31160 | موتور فن سمت راست | 1 | $326.89 |
| 16400B | PLUG, RADIATOR DRAIN COCK | ||
| 16417-21280 | پیچ تخلیه رادیاتور | 2 | $5.30 |
| 16400F | PACKING(FOR RADIATOR DRAIN COCK) | ||
| 16492-21050 | 2 | $3.24 | |
| 16400R | BUSHING(FOR RADIATOR) | ||
| 16444-75180 | 4 | $2.89 | |
| 16400S | COLLAR(FOR RADIATOR) | ||
| 16445-75180 | 4 | $3.60 | |
| 16401 | CAP SUB-ASSY, RADIATOR | ||
| 16401-31480 | درب رادیاتور | 1 | $30.05 |
| 16431 | لوله ورودی آب رادیاتور | ||
| 16431-31480 | NO.1 | 1 | $45.35 |
| 16431-31490 | NO.2 | 1 | $36.29 |
| 16431A | RING, O(FOR RADIATOR WATER INLET) | ||
| 16492-31480 | 1 | $10.91 | |
| 16470A | HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||
| 16377-20142 | 1 | $10.40 | |
| 16470B | CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||
| 90467-11085 | 1 | $0.91 | |
| 16471 | CAP SUB-ASSY, RESERVE TANK | ||
| 16471-20020 | درب مخزن آب رایاتور | 1 | $7.63 |
| 16471A | SUPPORT SUB-ASSY | ||
| 16406-20300 | 2 | $3.04 | |
| 16497 | INLET SUB-ASSY | ||
| 16495-31480 | 1 | $25.74 | |
| 16497-20353 | *** STD. PART | $4.39 | |
| 16523A | CUSHION, RADIATOR SUPPORT | ||
| 16523-20020 | 2 | $10.28 | |
| 16533B | SUPPORT, RADIATOR, NO.1 | ||
| 16505-31010 | قاب بالای رادیاتور | 1 | $63.02 |
| 16534 | SUPPORT, RADIATOR, NO.2 | ||
| 16506-31010 | سینی زیر رادیاتور | 1 | $48.24 |
| 16535 | SUPPORT, RADIATOR, LOWER | ||
| 16535-20030 | 2 | $11.27 | |
| 16571A | CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||
| 90466-35001 | NO.2 | 1 | $9.17 |
| 90466-41006 | NO.1 | 1 | $10.40 |
| 16571C | HOSE, RADIATOR, NO.1 | ||
| 16571-31210 | شلنگ رادیاتور | 1 | $45.82 |
| 16571D | CLIP, RADIATOR HOSE, NO.1 | ||
| 90467-15022 | 1 | $1.42 | |
| 16572A | CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||
| 90466-35001 | NO.2 | 1 | $9.17 |
| 90466-41006 | NO.1 | 1 | $10.40 |
| 16572D | HOSE, RADIATOR, NO.2 | ||
| 16572-31230 | شلنگ رادیاتور | 1 | $29.73 |
| 16711 | SHROUD, FAN | ||
| 16711-31310 | بادگیررادیاتور و مخزن آب رادیاتور | 1 | $172.34 |

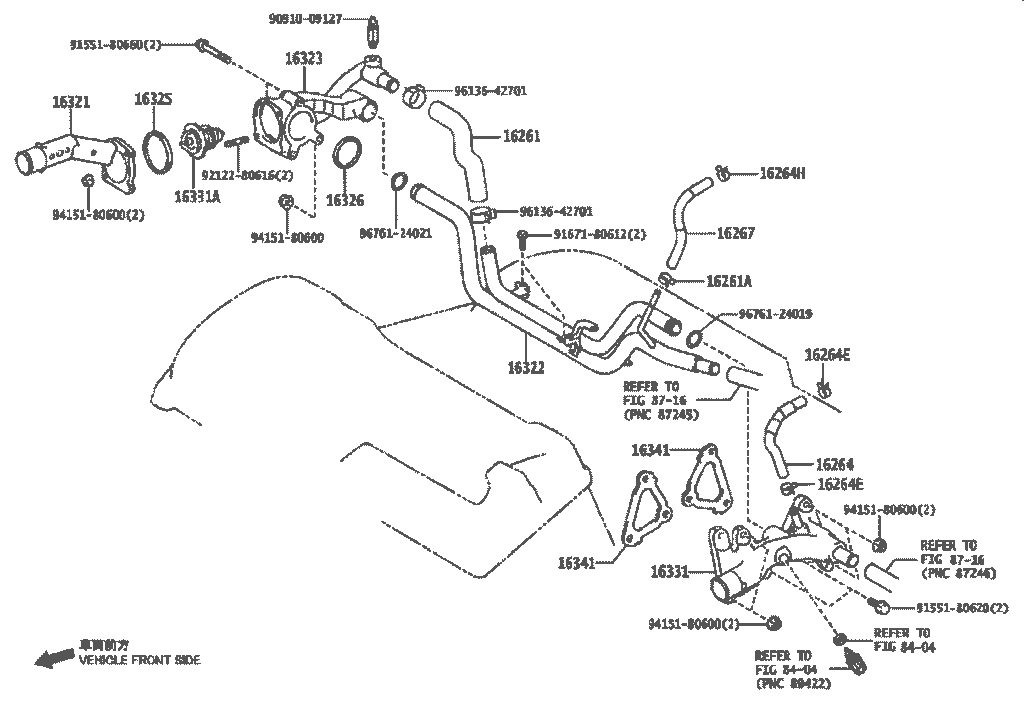

| 16261 | HOSE, WATER BY-PASS | ||
| 16261-31050 | شلنگ آب بغل سیلندر | 1 | $12.26 |
| 16261A | CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||
| 96137-41501 | 1 | $3.16 | |
| 16264 | HOSE, WATER BY-PASS, NO.2 | ||
| 16264-31081 | شلنگ آب بغل سیلندر | 1 | $7.87 |
| 16264E | CLIP(FOR WATER BY-PASS HOSE NO.2) | ||
| 96137-41501 | 2 | $3.16 | |
| 16264H | CLIP(FOR WATER BY-PASS HOSE NO.3) | ||
| 96137-41501 | 1 | $3.16 | |
| 16267 | HOSE, WATER BY-PASS, NO.3 | ||
| 16267-31040 | شلنگ آب بغل سیلندر | 1 | $7.91 |
| 16321 | INLET, WATER | ||
| 16321-31011 | لوله ورودی آب به سیلندر | 1 | $35.39 |
| 16322 | PIPE, WATER INLET | ||
| 16322-31030 | لوله آب ورودی سیلندر | 1 | $87.77 |
| 16323 | HOUSING, WATER INLET | ||
| 16323-0W011 | هوزینگ ترموستات | 1 | $73.14 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | ||
| 16325-62010 | 1 | $6.37 | |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | ||
| 16325-31010 | 1 | $1.62 | |
| 16331 | OUTLET, WATER | ||
| 16331-31150 | لوله خروجی آب | 1 | $94.14 |
| 16331A | ترموستات | ||
| 90916-03133 | *WAX 82-95 (01/2006 – 10/2007) | 1 | $41.56 |
| 90916-03140 | *WAX 82-95 (11/2007 – 11/2008) | 1 | $41.56 |
| 16341 | GASKET, WATER OUTLET | ||
| 16341-31010 |
