برچسب: لوازم یدکی RAV4

دسته بندی ها: لوازم گیربکس و جلوبندی راوفور, لوازم یدکی راوفور

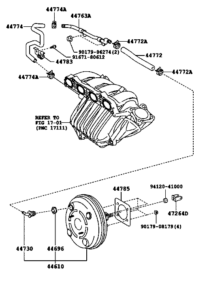

44610 BOOSTER ASSY, BRAKE
44610-42350 1 بوستر ترمز
44696 GROMMET, CHECK VALVE
90480-24439 1 $11.86
44730 VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170 1 $40.17
44763A TUBE, HOSE TO HOSE, NO.1
44763-42060 1 $45.31
44772 HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-42070 1 $22.22
44772A CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
96133-41500 2 $3.87
44774 HOSE, UNION TO CONNECTOR TUBE
44774-42110 1 $55.31
44774A CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
96133-41500 2 $3.87
44783 CLAMP, VACUUM HOSE
44783-42030 1 $6.01
44785 GASKET, BRAKE BOOSTER
44785-12040 1 $4.55
47264D CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-63010 1 $6.13

370

دسته بندی ها: لوازم گیربکس و جلوبندی راوفور, لوازم یدکی راوفور

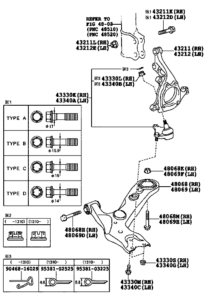

43211 KNUCKLE, STEERING, RH
43211-42081 سگدست راست 1
43211K BOLT (FOR STEERING KNUCKLE RH)
90105-17008 OD=17, TYPE A:REFER ILLUST. 2 $5.89
90105-17009 OD=15.9, TYPE B:REFER ILLUST. 1 $5.89
90105-17010 OD=15, TYPE C:REFER ILLUST. 1 $5.89
90105-17011 OD=14, TYPE D:REFER ILLUST. 1 $4.98
43211L NUT (FOR STEERING KNUCKLE RH)
90178-17002 2 $2.41
43212 KNUCKLE, STEERING, LH
43212-42081 سگدست چپ 1
43212D BOLT (FOR STEERING KNUCKLE LH)
90105-17008 OD=17, TYPE A:REFER ILLUST. 2 $5.89
90105-17009 OD=15.9, TYPE B:REFER ILLUST. 1 $5.89
90105-17010 OD=15, TYPE C:REFER ILLUST. 1 $5.89
90105-17011 OD=14, TYPE D:REFER ILLUST. 1 $4.98
43212E NUT (FOR STEERING KNUCKLE LH)
90178-17002 2 $2.41
43330K JOINT ASSY, LOWER BALL, FRONT RH
43330-49095 سیبک طبق راست 1 $87.80
43330L NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003 1 $1.62
43330M BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12346 1 $1.50
43330S NUT (FOR FRONT LOWER BALL JOINT RH)
90178-12019 2 $1.50
43340A JOINT ASSY, LOWER BALL, FRONT LH
43330-49095 سیبک طبق چپ 1 $87.80
43340B NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003 1 $1.62
43340C BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12346 1 $1.50
43340G NUT (FOR FRONT LOWER BALL JOINT LH)
90178-12019 2 $1.50
48068 ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-42060 طبق راست 1
48068H BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-16090 1
48068K NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90178-16006 1 $2.21
48068M BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90105-16090 1
48069 ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-42060 طبق چپ 1
48069D BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-16090 1
48069F NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90178-16006 1 $2.21
48069H BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90105-16090 1

419

دسته بندی ها: لوازم بدنه راوفور, لوازم یدکی راوفور

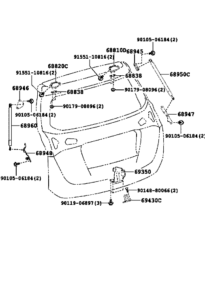

68810D HINGE ASSY, BACK DOOR, RH
68810-42070 لولای درب صندوق راست 1
68820C HINGE ASSY, BACK DOOR, LH
68810-42070 لولای درب صندوق چپ 1
68838 PAD, BACK DOOR HINGE, NO.1
68838-42010 T=1.0 2
68838-42020 T=1.5 2
68838-42030 T=2.0 2
68945 BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-42010 1
68946 BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-42010 1
68947 BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68903-42012 POWER DOOR LOCK-WITH(POWER BACK DOOR) 1
68947-42020 1
68948 BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68904-42012 POWER DOOR LOCK-WITH(POWER BACK DOOR) 1
68948-42020 1
68950C STAY ASSY, BACK DOOR, RH
68950-0R010 جک درب صندوق راست 1
68960 STAY ASSY, BACK DOOR, LH
68960-0R010 جک درب صندوق چپ 1
69350 LOCK ASSY, BACK DOOR
69350-28151 قفل درب صندوق 1
69350-28160 POWER DOOR LOCK-WITH(POWER BACK DOOR) 1 $170.52
69430C STRIKER ASSY, BACK DOOR LOCK
69430-48030 1

363
