طبق راوفور 2013- RAV4

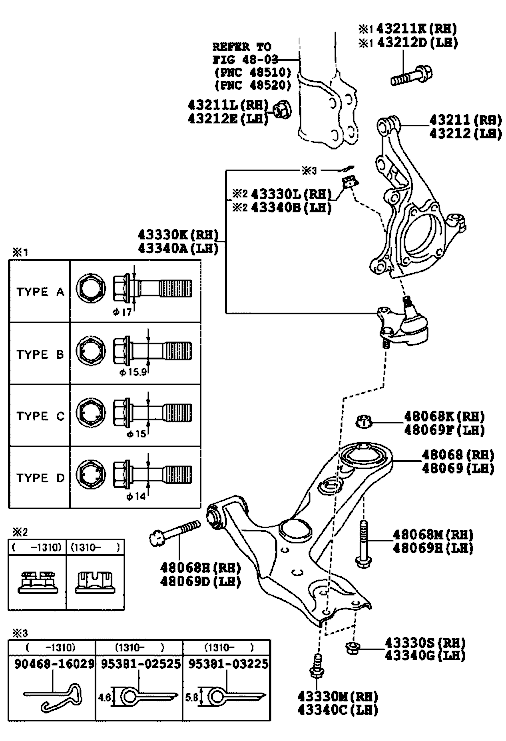

| 43211 | KNUCKLE, STEERING, RH | ||
| 43211-42081 | سگدست راست | 1 | |
| 43211K | BOLT (FOR STEERING KNUCKLE RH) | ||
| 90105-17008 | OD=17, TYPE A:REFER ILLUST. | 2 | $5.89 |
| 90105-17009 | OD=15.9, TYPE B:REFER ILLUST. | 1 | $5.89 |
| 90105-17010 | OD=15, TYPE C:REFER ILLUST. | 1 | $5.89 |
| 90105-17011 | OD=14, TYPE D:REFER ILLUST. | 1 | $4.98 |
| 43211L | NUT (FOR STEERING KNUCKLE RH) | ||
| 90178-17002 | 2 | $2.41 | |
| 43212 | KNUCKLE, STEERING, LH | ||
| 43212-42081 | سگدست چپ | 1 | |
| 43212D | BOLT (FOR STEERING KNUCKLE LH) | ||
| 90105-17008 | OD=17, TYPE A:REFER ILLUST. | 2 | $5.89 |
| 90105-17009 | OD=15.9, TYPE B:REFER ILLUST. | 1 | $5.89 |
| 90105-17010 | OD=15, TYPE C:REFER ILLUST. | 1 | $5.89 |
| 90105-17011 | OD=14, TYPE D:REFER ILLUST. | 1 | $4.98 |
| 43212E | NUT (FOR STEERING KNUCKLE LH) | ||
| 90178-17002 | 2 | $2.41 | |
| 43330K | JOINT ASSY, LOWER BALL, FRONT RH | ||
| 43330-49095 | سیبک طبق راست | 1 | $87.80 |
| 43330L | NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||
| 90171-14003 | 1 | $1.62 | |
| 43330M | BOLT (FOR FRONT LOWER BALL JOINT RH) | ||
| 90105-12346 | 1 | $1.50 | |
| 43330S | NUT (FOR FRONT LOWER BALL JOINT RH) | ||
| 90178-12019 | 2 | $1.50 | |
| 43340A | JOINT ASSY, LOWER BALL, FRONT LH | ||
| 43330-49095 | سیبک طبق چپ | 1 | $87.80 |
| 43340B | NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||
| 90171-14003 | 1 | $1.62 | |
| 43340C | BOLT (FOR FRONT LOWER BALL JOINT LH) | ||
| 90105-12346 | 1 | $1.50 | |
| 43340G | NUT (FOR FRONT LOWER BALL JOINT LH) | ||
| 90178-12019 | 2 | $1.50 | |
| 48068 | ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||
| 48068-42060 | طبق راست | 1 | |
| 48068H | BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||
| 90105-16090 | 1 | ||
| 48068K | NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||
| 90178-16006 | 1 | $2.21 | |
| 48068M | BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||
| 90105-16090 | 1 | ||
| 48069 | ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||
| 48069-42060 | طبق چپ | 1 | |
| 48069D | BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||
| 90105-16090 | 1 | ||
| 48069F | NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||
| 90178-16006 | 1 | $2.21 | |
| 48069H | BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||
| 90105-16090 | 1 | ||
