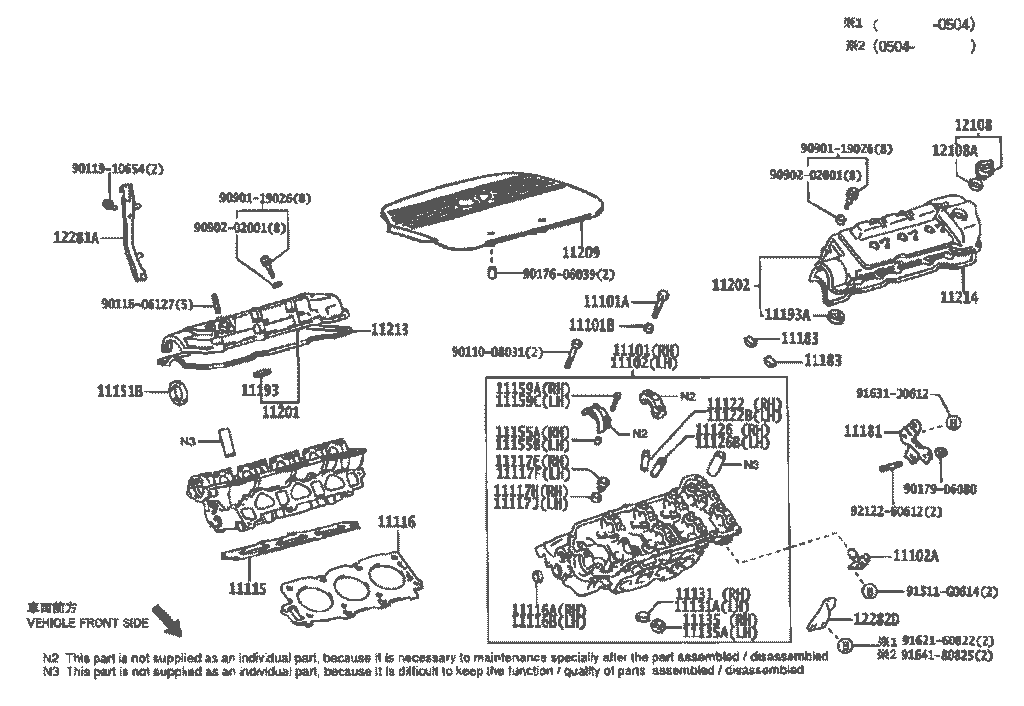

11101 | HEAD SUB-ASSY, CYLINDER |
11101-29410 | سرسیلندر راست | 1 | $1,569.72 |
11101A | BOLT(FOR CYLINDER HEAD SET) |
90910-02117 | پیچ سرسیلندر | 16 | $8.34 |
11101B | WASHER, PLATE(FOR CYLINDER HEAD SET) |
90201-11031 | | 16 | $1.98 |
11102 | HEAD, CYLINDER, LH |
11102-29040 | سرسیلندر چپ | 1 | $1,569.72 |
11102A | SENSOR, CAMSHAFT POSITION |
90919-05013 | سنسور موقعیت میل سوپاپ | 1 | $135.45 |
11115 | GASKET, CYLINDER HEAD |
11115-20041 | واشر سرسیلندر | 1 | $43.70 |
11115-20042 | (08/2004 – ) | 1 | $43.70 |
11116 | GASKET, CYLINDER HEAD, NO.2 |
11116-20041 | واشر سرسیلندر چپ | 1 | $43.70 |
11116-20042 | (08/2004 – ) | 1 | $43.70 |
11116A | PLUG, TIGHT, NO.1 |
| Not applicable |
11116B | PLUG, TIGHT, NO.2 |
| Not applicable |
11117E | PLUG, W/HEAD STRAIGHT SCREW, NO.1 |
90341-24013 | | 2 | $12.73 |
11117F | PLUG, W/HEAD STRAIGHT SCREW, NO.2 |
90341-24013 | | 2 | $12.73 |
11117H | GASKET(FOR WATER HOLE) |
90430-24246 | | 2 | $1.34 |
11117J | GASKET(FOR CYLINDER HEAD SCREW PLUG) |
90430-24246 | | 2 | $1.34 |
11122 | گاید سوپاپ |
11122-20020 | STD | 6 | $10.95 |
11123-20020 | O/S 0.05 | 6 | $10.95 |
11122B | گاید سوپاپ |
11122-20020 | STD | 6 | $10.95 |
11123-20020 | O/S 0.05 | 6 | $10.95 |
11126 | گاید سوپاپ دود |
11126-20020 | STD | 6 | $10.95 |
11127-20020 | O/S 0.05 | 6 | $10.95 |
11126B | گاید سوپاپ دود |
11126-20020 | STD | 6 | $10.95 |
11127-20020 | O/S 0.05 | 6 | $10.95 |
11131 | SEAT, INTAKE VALVE |
11131-62050 | STD | 6 | $11.23 |
11132-62050 | O/S 0.03 | 6 | $11.23 |
11131A | SEAT, INTAKE VALVE, NO.2 |
11131-62050 | STD | 6 | $11.23 |
11132-62050 | O/S 0.03 | 6 | $11.23 |
11135 | SEAT, EXHAUST VALVE |
11135-20040 | STD | 6 | $11.23 |
11136-20040 | O/S 0.03 | 6 | $11.23 |
11135A | SEAT, EXHAUST VALVE, NO.2 |
11135-20040 | STD | 6 | $11.23 |
11136-20040 | O/S 0.03 | 6 | $11.23 |
11151B | SEAL, OIL(FOR CAMSHAFT SETTING) |
90311-38034 | (J) | 2 | $10.71 |
11155A | PIN, RING W/HEAD |
90253-10004 | | 19 | $3.60 |
11155B | PIN, RING |
90253-10004 | | 19 | $3.60 |
11159A | BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) |
90119-07009 | | 20 | $1.11 |
11159C | BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) |
90119-07009 | | 20 | $1.11 |
11181 | PLATE, CYLINDER HEAD, REAR |
| Not applicable |
11183 | PLUG, SEMICIRCULAR |
11183-20010 | ENGINE NO.=0XXXXXX-4XXXXXX | 4 | $7.83 |
11193 | GASKET, SPARK PLUG TUBE |
11193-62040 | (08/2004 – 10/2004) | 3 | $3.52 |
11193-70010 | (08/2002 – 07/2004) | 3 | $3.52 |
11193A | GASKET, SPARK PLUG TUBE, LH |
11193-70010 | | 3 | $3.52 |
11201 | درب سوپاپ |
11201-20070 | ENGINE NO.=0XXXXXX-4XXXXXX | 1 | $276.64 |
11201-20090 | | 1 | $250.07 |
11202 | درب سوپاپ چپ |
11202-20031 | ENGINE NO.=0XXXXXX-4XXXXXX | 1 | $276.64 |
11209 | COVER SUB-ASSY, V-BANK |
11209-20011 | کاور موتور | 1 | $71.92 |
11213 | GASKET, CYLINDER HEAD COVER |
11213-20020 | واشر درب سوپاپ | 1 | $26.68 |
11214 | GASKET, CYLINDER HEAD COVER, NO.2 |
11214-20010 | واشر درب سوپاپ | 1 | $26.68 |
12108 | CAP SUB-ASSY, OIL FILLER |
12180-20030 | درب روغن موتور | 1 | $18.27 |
12108A | GASKET(FOR OIL FILLER CAP) |
12195-20020 | | 1 | $3.32 |
12281A | HANGER, ENGINE, NO.1 |
12281-20030 | (J) | 1 | $28.90 |
12282D | HANGER, ENGINE, NO.2 |
12282-20020 | | X | $19.06 |
