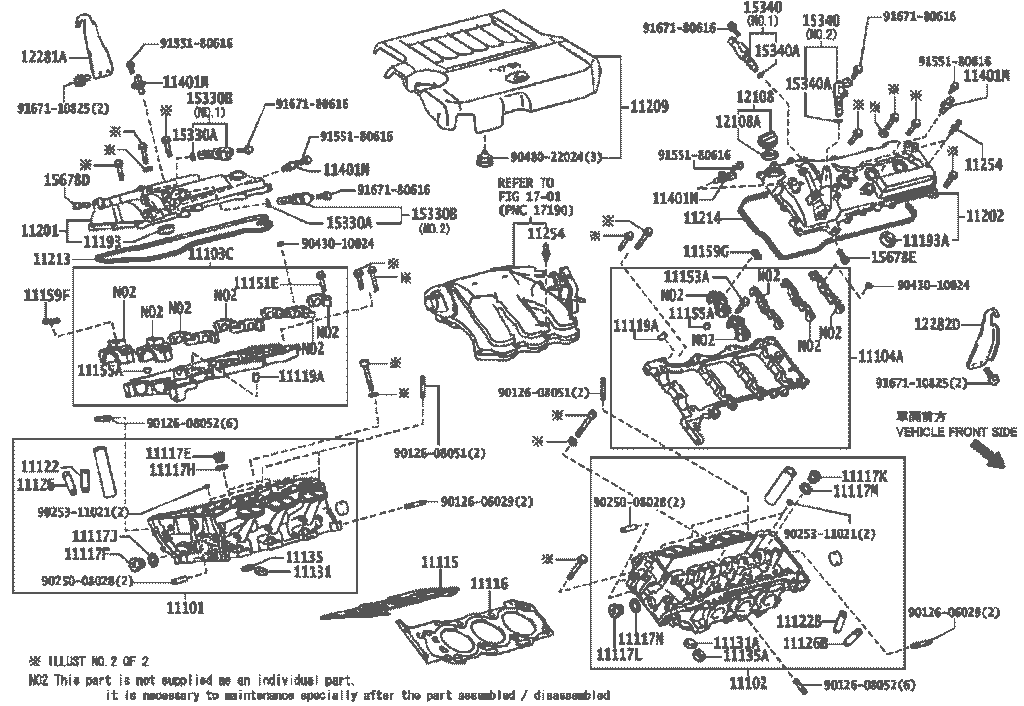

11101 | HEAD SUB-ASSY, CYLINDER |
11101-39535 | سرسیلندر | 1 | $1,753.59 |
11102 | HEAD, CYLINDER, LH |
11102-39055 | سر سیلندر چپ | 1 | $1,753.59 |
11103C | HOUSING SUB-ASSY, CAMSHAFT, RH |
11103-31021 | (04/2006 – 12/2007) | 1 | $262.13 |
11103-31022 | (01/2008 – 11/2008) | 1 | $262.13 |
11104A | HOUSING SUB-ASSY, CAMSHAFT, LH |
11104-31021 | (04/2006 – 12/2007) | 1 | $261.30 |
11104-31022 | (01/2008 – 11/2008) | 1 | $261.30 |
11115 | GASKET, CYLINDER HEAD |
11115-31060 | واشر سر سیلندر | 1 | $59.43 |
11116 | GASKET, CYLINDER HEAD, NO.2 |
11116-31040 | واشر سر سیلندر 2 | 1 | $59.43 |
11117E | PLUG, W/HEAD STRAIGHT SCREW, NO.1 |
90341-20012 | | 2 | $6.05 |
11117F | PLUG, W/HEAD STRAIGHT SCREW, NO.2 |
90341-27006 | | 1 | $10.44 |
11117H | GASKET(FOR WATER HOLE) |
90430-20004 | | 2 | $1.34 |
11117J | GASKET(FOR CYLINDER HEAD SCREW PLUG) |
90430-27005 | | 1 | $2.69 |
11117K | PLUG, W/HEAD STRAIGHT SCREW, LH NO.1 |
90341-20012 | | 2 | $6.05 |
11117L | PLUG, W/HEAD STRAIGHT SCREW, LH NO.2 |
90341-27006 | | 1 | $10.44 |
11117M | GASKET(FOR WATER HOLE NO.2) |
90430-20004 | | 2 | $1.34 |
11117N | GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2) |
90430-27005 | | 1 | $2.69 |
11119A | PIN, STRAIGHT, NO.1 |
90250-05021 | L=13.8, OD=5.0 | 3 | $0.79 |
11122 | گاید سوپاپ (گیت) |
11122-31050 | STD | 6 | $12.73 |
11123-31050 | O/S 0.05 | 6 | $12.73 |
11122B | گاید سوپاپ (گیت) 2 |
11122-31050 | STD | 6 | $12.73 |
11123-31050 | O/S 0.05 | 6 | $12.73 |
11126 | گاید سوپاپ دود |
11126-31030 | STD | 6 | $12.73 |
11127-31030 | O/S 0.05 | 6 | $12.73 |
11126B | گاید سوپاپ دود 2 |
11126-31030 | STD | 6 | $12.73 |
11127-31030 | O/S 0.05 | 6 | $12.73 |
11131 | SEAT, INTAKE VALVE |
11131-31050 | STD | 6 | $10.36 |
11132-31050 | O/S 0.03 | 6 | $11.23 |
11131A | SEAT, INTAKE VALVE, NO.2 |
11131-31050 | STD | 6 | $10.36 |
11132-31050 | O/S 0.03 | 6 | $11.23 |
11135 | SEAT, EXHAUST VALVE |
11135-31080 | STD | 6 | $11.23 |
11136-31080 | O/S 0.03 | 6 | $11.23 |
11135A | SEAT, EXHAUST VALVE, NO.2 |
11135-31080 | STD | 6 | $11.23 |
11136-31080 | O/S 0.03 | 6 | $11.23 |
11151E | BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) |
90119-07009 | | 8 | $1.11 |
11153A | BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1) |
90119-07009 | | 8 | $1.11 |
11155A | PIN, RING W/HEAD |
90253-11021 | | 10 | $2.13 |
11159F | GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH |
11159-31010 | | 2 | $2.13 |
11159G | GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH |
11159-31010 | | 2 | $2.13 |
11193 | GASKET, SPARK PLUG TUBE |
11193-70010 | | 3 | $3.52 |
11193A | GASKET, SPARK PLUG TUBE, LH |
11193-70010 | | 3 | $3.52 |
11201 | COVER SUB-ASSY, CYLINDER HEAD |
11201-31250 | درب سوپاپ | 1 | $350.61 |
11202 | COVER SUB-ASSY, CYLINDER HEAD, LH |
11202-31030 | درب سوپاپ چپ | 1 | $375.09 |
11209 | COVER SUB-ASSY, V-BANK |
11209-31150 | قالپاق موتور | 1 | $251.06 |
11213 | GASKET, CYLINDER HEAD COVER |
11213-31050 | واشر درب سوپاپ | 1 | $23.37 |
11214 | GASKET, CYLINDER HEAD COVER, NO.2 |
11214-31020 | واشر درب سوپاپ 2 | 1 | $23.37 |
11254 | BRACKET, V-BANK COVER, NO.1 |
11254-31020 | خنک کندده منیفولد | 3 | $2.73 |
11401M | SENSOR, CRANK POSITION, NO.2 |
90919-05060 | سنسور موقعیت میل لنگ | 4 | $130.87 |
12108 | CAP SUB-ASSY, OIL FILLER |
12180-28010 | درب روغن | 1 | $18.27 |
12108A | GASKET(FOR OIL FILLER CAP) |
90430-37004 | | 1 | $1.94 |
12281A | HANGER, ENGINE, NO.1 |
12281-31120 | | 1 | $38.55 |
12282D | HANGER, ENGINE, NO.2 |
12282-31100 | | 1 | $36.18 |
15330A | RING, O(FOR CAM TIMING OIL CONTROL VALVE) |
90099-14137 | | 2 | $3.24 |
15330B | سنسور کنترل روغن (OCV) |
15330-31020 | NO.1 | 1 | $133.79 |
15330-31030 | NO.2 | 1 | $133.79 |
15340 | سنسور کنترل روغن چپ (OCV) |
15330-31020 | NO.1 | 1 | $133.79 |
15340-31020 | NO.2 | 1 | $135.02 |
15340A | RING, O(FOR CAM TIMING OIL CONTROL VALVE) |
90099-14137 | | 2 | $3.24 |
15678D | FILTER, OIL CONTROL VALVE, RH |
15678-46020 | | 1 | $5.34 |
15678E | FILTER, OIL CONTROL VALVE, LH |
15678-46020 | | 1 | $5.34 |
