ساعت گیربکس و صافی گیربکس پرادو شش سیلندر 2005-2009

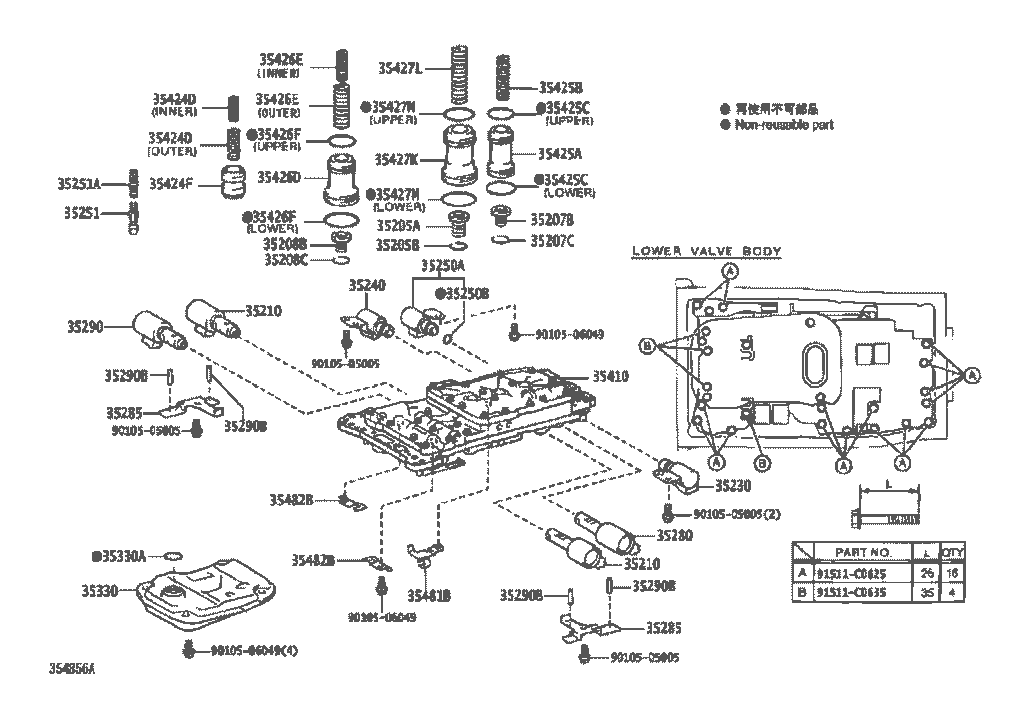

| 35205A | SPRING SUB-ASSY, B-3 ACCUMULATOR | ||
| 35205-60010 | فنر ساعت گیربکس | 1 | $3.91 |
| 35205B | RING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING) | ||
| 90521-22004 | 1 | $2.65 | |
| 35207B | SPRING SUB-ASSY, C-2 ACCUMULATOR | ||
| 35207-22010 | فنر ساعت گیربکس | 1 | $3.68 |
| 35207C | RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||
| 90521-22004 | 1 | $2.65 | |
| 35208B | SPRING SUB-ASSY, C-3 ACCUMULATOR | ||
| 35208-60010 | فنر ساعت گیربکس | 1 | $3.56 |
| 35208C | RING, HOLE SNAP (FOR C-3 ACCUMULATOR SPRING) | ||
| 90521-22004 | 1 | $2.65 | |
| 35210 | SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||
| 35210-50010 | شیربرقی گیربکس (سلونوئید) | 2 | $191.95 |
| 35230 | SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||
| 35230-60010 | شیر برقی گیربکس , سلونویید | 1 | $336.38 |
| 35240 | SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||
| 35240-60020 | شیر سلونوئید گیربکس | 1 | $336.38 |
| 35250A | SOLENOID ASSY, TRANSMISSION, NO.3 | ||
| 35250-60010 | شیر برقی گیربکس : سلونویید | 1 | $336.38 |
| 35250B | RING, O NO.3(FOR TRANSMISSION SOLENOID) | ||
| 90301-06004 | 1 | $3.15 | |
| 35251 | BODY, CHECK BALL | ||
| 35251-30020 | 1 | $34.36 | |
| 35251A | SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||
| 90501-03005 | 1 | $1.27 | |
| 35280 | شیر برقی گیربکس سلونویید | ||
| 35280-30050 | (11/2006 – 07/2009) | 1 | $211.05 |
| 35280-50020 | (08/2004 – 10/2006) | 1 | $211.44 |
| 35285 | PLATE, SOLENOID LOCK | ||
| 35285-34010 | 2 | $1.27 | |
| 35290 | شیر کنترل فشار روغن ساعت گیربکس :سلونویید | ||
| 35290-34010 | (11/2006 – 07/2009) | 1 | $211.05 |
| 35290-50010 | (08/2004 – 10/2006) | 1 | $211.44 |
| 35290B | PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||
| 90250-03045 | 4 | $0.51 | |
| 35330 | STRAINER ASSY, VALVE BODY OIL | ||
| 35330-60050 | صافی گیربکس | 1 | $118.69 |
| 35330A | RING, O (FOR OIL STRAINER) | ||
| 90301-31014 | 1 | $3.01 | |
| 35410 | BODY ASSY, TRANSMISSION VALVE | ||
| 35410-60580 | ساعت گیربکس | 1 | $1,759.00 |
| 35424D | SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||
| 90501-20173 | INNER | 1 | $2.85 |
| 90501-21040 | OUTER | 1 | $3.52 |
| 35424F | VALVE, C-1 ACCUMULATOR | ||
| 35424-60030 | 1 | $23.17 | |
| 35425A | PISTON, C-2 ACCUMULATOR | ||
| 35425-50020 | (08/2006 – 07/2009) | 1 | $24.99 |
| 35425-60060 | (08/2004 – 07/2006) | 1 | $32.78 |
| 35425B | SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||
| 90501-22062 | 1 | $4.11 | |
| 35425C | RING, O (FOR C-2 ACCUMULATOR PISTON) | ||
| 90301-20008 | UPPER | 1 | $3.01 |
| 90301-28008 | LOWER | 1 | $3.58 |
| 35426D | PISTON, C-3 ACCUMULATOR | ||
| 35426-50020 | (08/2006 – 07/2009) | 1 | $44.08 |
| 35426-60020 | (08/2004 – 07/2006) | 1 | $69.11 |
| 35426E | SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||
| 90501-24038 | INNER | 1 | $3.16 |
| 90501-25028 | OUTER | 1 | $4.39 |
| 35426F | RING, O (FOR C-3 ACCUMULATOR PISTON) | ||
| 90301-26011 | UPPER | 1 | $3.01 |
| 90301-34011 | LOWER | 1 | $3.01 |
| 35427K | PISTON, B-3 ACCUMULATOR | ||
| 35427-50020 | (08/2006 – 07/2009) | 1 | $39.10 |
| 35427-60020 | (08/2004 – 07/2006) | 1 | $59.58 |
| 35427L | SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||
| 90501-27036 | 1 | $5.54 | |
| 35427M | RING, O (FOR B-3 ACCUMULATOR PISTON) | ||
| 90301-23010 | UPPER | 1 | $3.01 |
| 90301-34011 | LOWER | 1 | $3.01 |
| 35481B | CLAMP, VALVE BODY WIRE HARNESS | ||
| 35481-60010 | 1 | $9.69 | |
| 35482B | CLAMP, TEMPERATURE SENSOR | ||
| 35482-60040 | 2 | $5.50 | |
| 90105-05005 | *** STD. PART | $0.59 | |
| 90105-06049 | *** STD. PART | $0.55 | |
| 91511-C0625 | *** STD. PART | $0.99 | |
| 91511-C0635 | *** STD. PART | ||

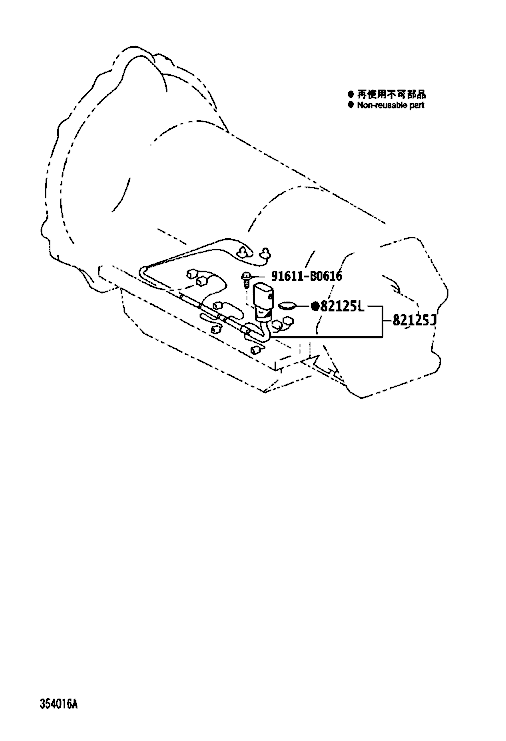

| 82125J | سیم کشی گیربکس | ||
| 82125-35150 | (08/2004 – 04/2007) | 1 | $72.91 |
| 82125-60650 | (06/2007 – 07/2009) | 1 | $72.91 |
| 82125L | RING, O(FOR TRANSMISSION WIRE) | ||
| 90301-21009 | 1 | $3.15 | |
| 91611-B0616 | *** STD. PART | $0.79 | |
|
|
|||
