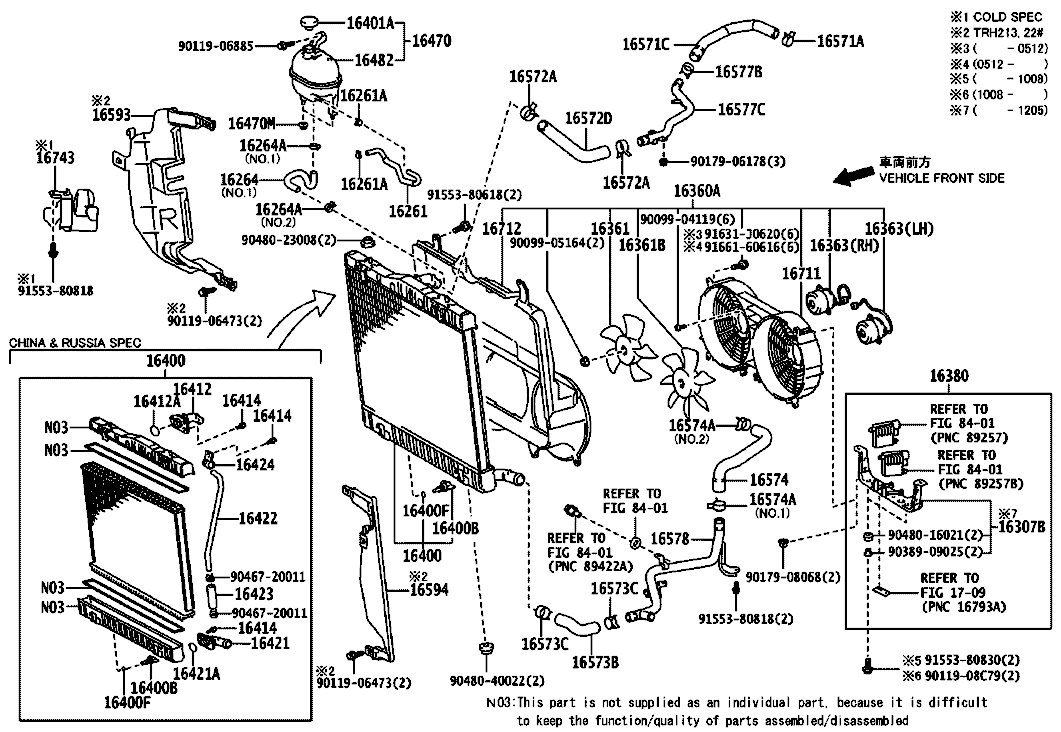

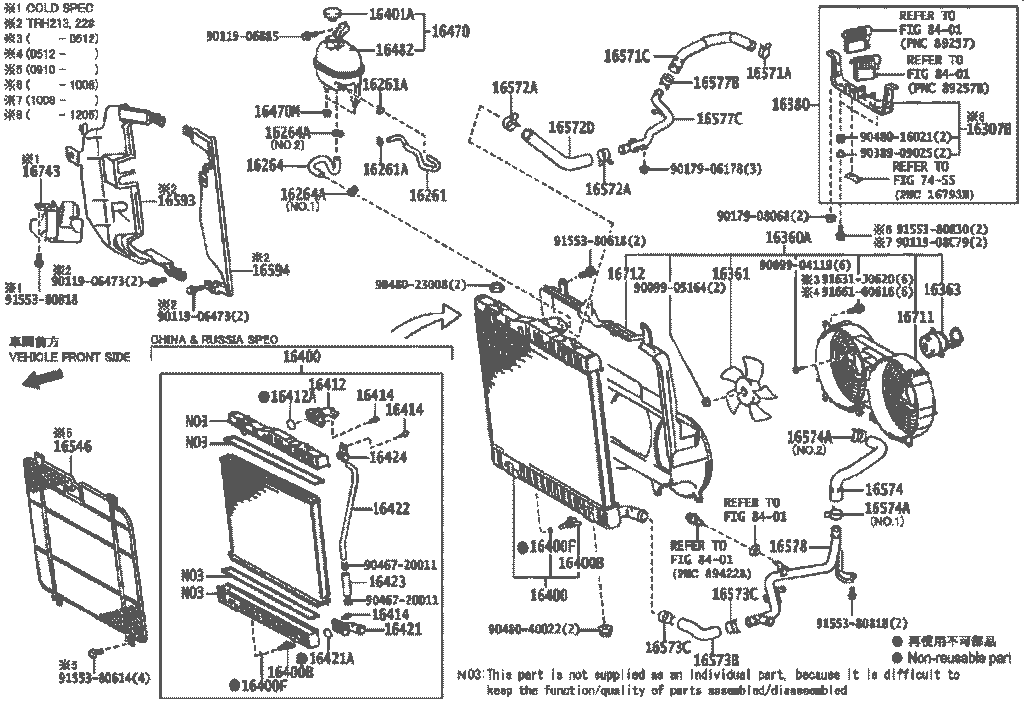

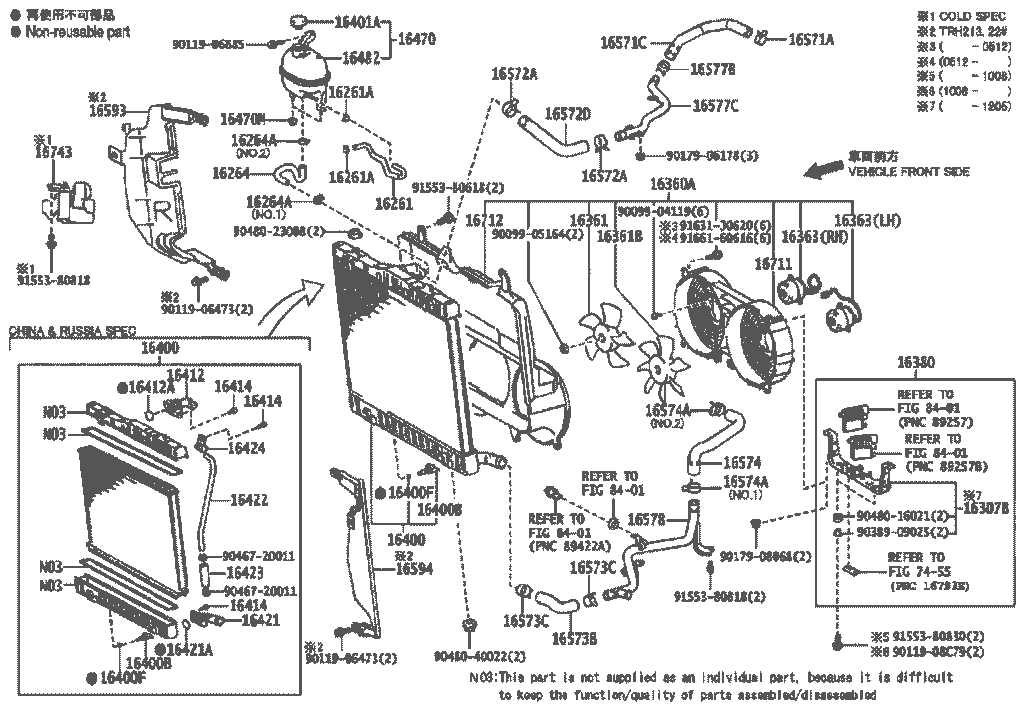

رادیاتور آب هایس مدل 2005-2014
| 16261 | HOSE, WATER BY-PASS | ||
| 16261-75180 | شلنگ مخزن آب رادیاتور | 1 | $24.47 |
| 16261A | CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||
| 96135-51300 | شلنگ مخزن آب رادیاتور | 2 | $3.20 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | ||
| 16264-75120 | NO.1 | 1 | $27.68 |
| 16264A | CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||
| 90467-20011 | NO.1 | 1 | $3.72 |
| 90467-22011 | NO.2 | 1 | $5.14 |
| 16307B | BRACKET SUB-ASSY, FAN | ||
| 16307-75011 | 1 | $46.97 | |
| 16307-75021 | AIR CONDITIONER-DUAL AIR CONDITIONER | 1 | $46.97 |
| 16360A | مجموعه فن رادیاتور | ||
| 16360-75021 | 1 | $855.66 | |
| 16360-75031 | AIR CONDITIONER-DUAL AIR CONDITIONER | 1 | $1,420.56 |
| 16361 | FAN | ||
| 16361-75030 | پروانه فن رادیاتور | 1 | $54.56 |
| 16363 | موتور فن | ||
| 16363-20390 | 1 | $326.03 | |
| 16363-75030 | AIR CONDITIONER-DUAL AIR CONDITIONER, LH | 1 | $298.29 |
| 16380 | BRACKET ASSY, FAN | ||
| 16380-75011 | 1 | $279.57 | |
| 16380-75022 | AIR CONDITIONER-DUAL AIR CONDITIONER | 1 | $498.44 |
| 16400 | RADIATOR ASSY | ||
| 16400-75471 | رادیاتور آب | 1 | |
| 16400B | PLUG, RADIATOR DRAIN COCK | ||
| 16417-30170 | پیچ تخلیه رادیاتور آب | 1 | $7.35 |
| 16400F | PACKING(FOR RADIATOR DRAIN COCK) | ||
| 16418-15520 | 1 | $2.10 | |
| 16401A | CAP SUB-ASSY, RADIATOR RESERVE TANK | ||
| 16475-51010 | درب مخزن آب رادیاتور | 1 | $18.54 |
| 16412 | PIPE, RADIATOR TANK, UPPER | ||
| 16412-75540 | لوله سر رادیاتور | 1 | $35.31 |
| 16412A | RING, O(FOR RADIATOR UPPER TANK PIPE) | ||
| 16413-75540 | 1 | $0.87 | |
| 16414 | BOLT, RADIATOR TANK PIPE | ||
| 16414-75540 | 7 | $3.68 | |
| 16421 | PIPE, RADIATOR TANK, LOWER NO.1 | ||
| 16421-75540 | لوله پایین رادیاتور | 1 | $35.82 |
| 16421A | RING, O(FOR RADIATOR LOWER TANK PIPE NO.1) | ||
| 16413-75540 | 1 | $0.87 | |
| 16422 | PIPE, RADIATOR TANK, LOWER NO.2 | ||
| 16422-75540 | 1 | $26.85 | |
| 16423 | HOSE, RADIATOR TANK | ||
| 16423-75540 | 1 | $6.37 | |
| 16424 | CLAMP, RADIATOR TANK PIPE | ||
| 16424-75540 | 1 | $8.82 | |
| 16470 | TANK ASSY, RADIATOR RESERVE | ||
| 16470-75121 | مخزن برگشت آب رادیاتور کامل | 1 | $147.08 |
| 16470M | GROMMET | ||
| 90480-15023 | 2 | $2.85 | |
| 16482 | TANK SUB-ASSY, RADIATOR RESERVE | ||
| 16480-75070 | مخزن ذخیره رادیات بدون درب | 1 | $293.25 |
| 16546 | PROTECTOR, RADIATOR | ||
| Not applicable | |||
| 16571A | CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||
| 90467-37005 | 1 | $6.01 | |
| 16571C | HOSE, RADIATOR, NO.1 | ||
| 16571-75260 | شلنگ بالا رادیات | 1 | $33.80 |
| 16572A | CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||
| 90466-41007 | 2 | $9.92 | |
| 16572D | HOSE, RADIATOR, NO.2 | ||
| 16572-75270 | شلنگ رادیات | 1 | $30.60 |
| 16573B | HOSE, RADIATOR, NO.3 | ||
| 16573-75070 | شلنگ پایین رادیات | 1 | $24.47 |
| 16573C | CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||
| 90466-41007 | 2 | $9.92 | |
| 16574 | HOSE, RADIATOR, NO.4 | ||
| 16574-75050 | شلنگ رادیات | 1 | $27.68 |
| 16574A | CLIP, RADIATOR HOSE, NO.4 | ||
| 90466-41007 | NO.1 | 1 | $9.92 |
| 90467-37005 | NO.2 | 1 | $6.01 |
| 16577B | CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||
| 90466-41007 | 1 | $9.92 | |
| 16577C | PIPE, RADIATOR | ||
| 16577-75040 | لوله رادیات | 1 | $93.07 |
| 16578 | PIPE, RADIATOR, NO.2 | ||
| 16578-75011 | لوله رادیات | 1 | $76.90 |
| 16593 | GUIDE, RADIATOR AIR, NO.1 | ||
| 16593-75010 | سینی بغل رادیات | 1 | $60.69 |
| 16594 | GUIDE, RADIATOR AIR, NO.2 | ||
| 16594-75010 | سینی بغل رادیات | 1 | $56.97 |
| 16711 | SHROUD, FAN | ||
| 16711-75230 | قاب فن | 1 | $171.16 |
| 16712 | SHROUD, FAN, NO.2 | ||
| 16712-75121 | بادگیر رادیات | 1 | $191.95 |
| 16743 | PROTECTOR, FAN SHROUD | ||
| Not applicable | |||
| 90099-04119 | *** STD. PART | $0.71 | |
| 90099-05164 | *** STD. PART | $1.19 | |
| 90119-06473 | *** STD. PART | $1.03 | |
| 90119-06885 | *** STD. PART | $0.79 | |
| 90119-08C79 | *** STD. PART | $1.23 | |
| 90179-06178 | *** STD. PART | $1.07 | |
| 90179-08068 | *** STD. PART | $0.75 | |
| 90389-09025 | *** STD. PART | $3.87 | |
| 90467-20011 | *** STD. PART | $3.72 | |
| 90480-16021 | *** STD. PART | $2.81 | |
| 90480-23008 | *** STD. PART | $5.89 | |
| 90480-40022 | *** STD. PART | $19.53 | |
| 91553-80614 | *** STD. PART | $0.71 | |
| 91553-80618 | *** STD. PART | $0.75 | |
| 91553-80818 | *** STD. PART | $1.07 | |
| 91553-80830 | *** STD. PART | $0.99 | |
| 91631-J0620 | *** STD. PART | $0.79 | |
| 91661-60616 | *** STD. PART | $0.87 | |
