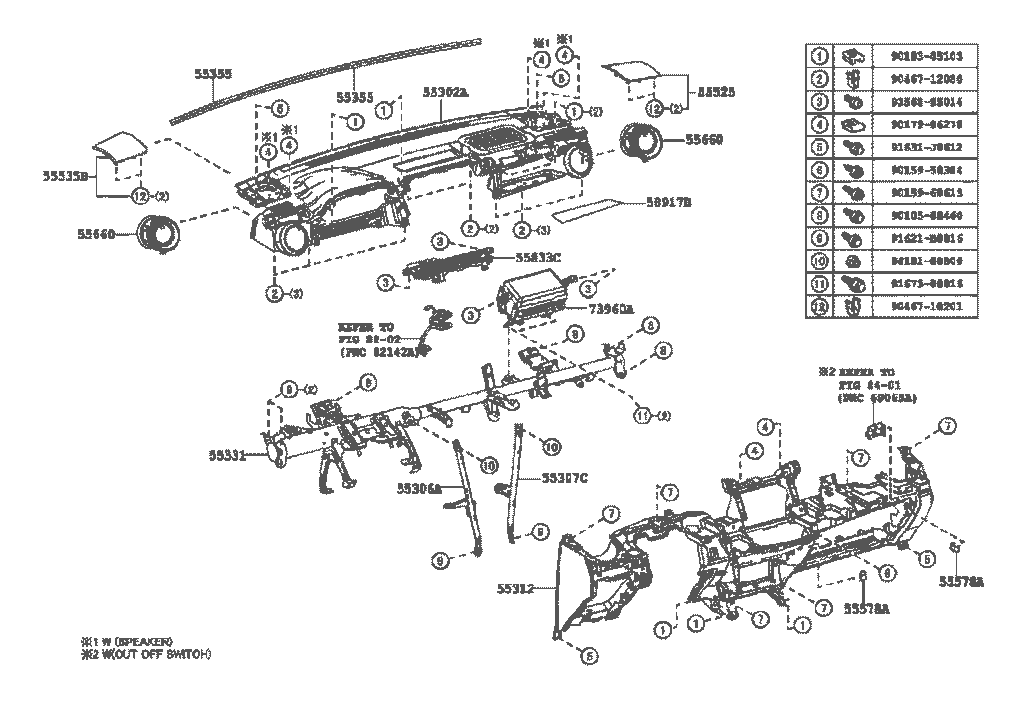

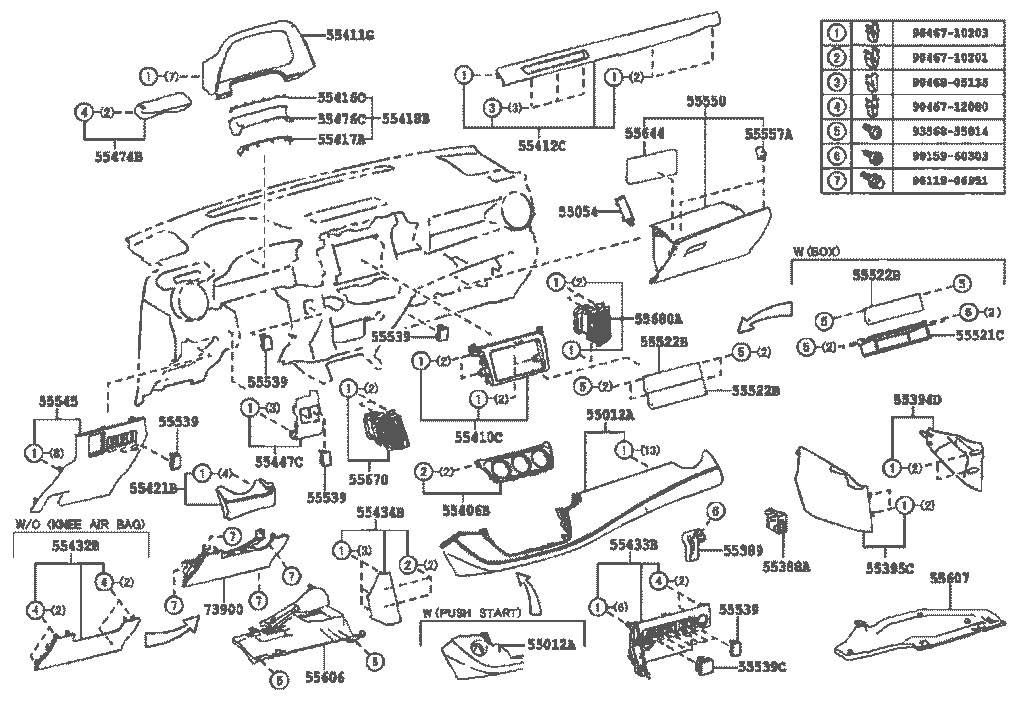

داشبورد و ایربگ RAV4 2013-2014
| 55302A | PANEL SUB-ASSY, INSTRUMENT, UPPER | ||
| 55302-42904-C0 | داشبورد بالایی | 1 | |
| 55306A | BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||
| 55306-42120 | 1 | ||
| 55307C | BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||
| 55307-42070 | 1 | ||
| 55312 | PANEL, INSTRUMENT, LOWER | ||
| 55312-42050-C0 | داشبورد پایینی | 1 | |
| 55331 | اسکلت داشبورد | ||
| 55330-42260 | (12/2012 – 03/2013) | 1 | |
| 55330-42261 | (05/2013 – 07/2014) | 1 | |
| 55355 | CUSHION, INSTRUMENT PANEL, NO.1 | ||
| 55355-42030 | زه بالای داشبورد | 2 | |
| 55525 | قاب روی اسپیکر داشبورد سمت شاگرد | ||
| 55510-42010-C0 | AUDIO-CD & USB & BLUETOOTH & 4SPEAKER(VFD), BLACK, TRIM1*, 2*, 3*, 4* | 1 | |
| 55525-42010-C0 | BLACK, TRIM1*, 2*, 3*, 4* | 1 | |
| 55535B | قاب روی اسپیکر داشبورد سمت راننده | ||
| 55530-42010-C0 | AUDIO-CD & USB & BLUETOOTH & 4SPEAKER(VFD), BLACK, TRIM1*, 2*, 3*, 4* | 1 | |
| 55535-42010-C0 | BLACK, TRIM1*, 2*, 3*, 4* | 1 | |
| 55578A | SILENCER, GLOVE COMPARTMENT DOOR | ||
| 55578-52040 | 2 | ||
| 55660 | REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||
| 55660-42030-C0 | BLACK, TRIM1*, 2*, 3*, 4* | 2 | |
| 55833C | CONNECTOR, INSTRUMENT PANEL REGISTER, CENTER | ||
| 55833-42010-C0 | BLACK, TRIM1*, 2*, 3*, 4* | 1 | |
| 58917B | MAT, BOX BOTTOM | ||
| 58917-42010 | 1 | ||
| 73960A | ایربگ شاگرد | ||
| 73960-42050 | (12/2012 – 01/2013) | 1 | |
| 73960-42051 | (02/2013 – 09/2015) | 1 | |
| 55012A | قاب داشبورد | ||
| 55012-42030-A1 | BEIGE, TRIM4* | 1 | |
| 55012-42030-C1 | BLACK, TRIM2* | 1 | |
| 55012-42030-D1 | TERRACOTTA, TRIM3* | 1 | |
| 55054 | STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||
| 55054-33060 | 1 | $22.65 | |
| 55388A | BRACKET, CONSOLE MOUNTING, RH | ||
| 55388-42010 | 1 | $4.82 | |
| 55389 | BRACKET, CONSOLE MOUNTING, LH | ||
| 55389-42010 | 1 | $10.40 | |
| 55394D | COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 RH | ||
| 55394-42050-C0 | BLACK, TRIM2*, 3*, 4* | 1 | |
| 55395C | COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 LH | ||
| 55395-42030-C0 | BLACK, TRIM2*, 3*, 4* | 1 | |
| 55406B | PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||
| Not applicable | |||
| 55410C | پنل ضبط | ||
| 55410-42130 | AUDIO-6SPEAKER(AUDIO LESS) | 1 | |
| 55411G | PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||
| 55411-42070 | قاب صفحه کیلومتر | 1 | |
| 55412C | PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||
| 55412-42070 | قاب ساعت | 1 | |
| 55416C | RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||
| 55416-42020 | 1 | ||
| 55417A | RETAINER, METER HOOD, NO.2 | ||
| 55417-42030 | 1 | ||
| 55418B | SPACER,METER HOOD | ||
| 55418-42010 | 1 | ||
| 55421B | PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||
| 55421-42130-A1 | BEIGE, TRIM4* | 1 | |
| 55421-42130-C1 | BLACK, TRIM2* | 1 | |
| 55421-42130-D1 | TERRACOTTA, TRIM3* | 1 | |
| 55432B | PANEL, INSTRUMENT PANEL FINISH, LOWER | ||
| 55432-42120-C0 | BLACK, TRIM1*, 2*, 3*, 4* | 1 | |
| 55433B | پنل بخاری | ||
| 55433-42030-C0 | BLACK, TRIM1*, 2*, 3*, 4* | 1 | |
| 55434B | PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||
| 55434-42010 | 1 | ||
| 55447C | BASE, SWITCH HOLE, NO.2 | ||
| 55447-42010-C0 | BLACK, TRIM1*, 2*, 3*, 4* | 1 | |
| 55474B | GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||
| 55474-42030 | 1 | ||
| 55476C | GARNISH, INSTRUMENT PANEL FINISH PLATE | ||
| 55476-42030 | 1 | ||
| 55521C | COVER, STEREO OPENING | ||
| 55521-44020 | AUDIO-6SPEAKER(AUDIO LESS) | 1 | $38.98 |
| 55522B | COVER, RADIO TUNER OPENING | ||
| 55521-20150 | AUDIO-6SPEAKER(AUDIO LESS) | 1 | $31.23 |
| 55539 | COVER, SPARE SWITCH HOLE | ||
| 55539-52070-C0 | BLACK, TRIM2*, 3*, 4* | X | |
| 55539C | COVER, SPARE SWITCH HOLE | ||
| 55539-42050-C0 | VSC-WITHOUT, BLACK, TRIM2*, 3*, 4* | X | |
| 55545 | درب جعبه فیوز | ||
| 55545-42040-C0 | BLACK, TRIM1*, 2*, 3*, 4* | 1 | |
| 55550 | درب داشبورد | ||
| 55550-42120-C0 | BLACK, TRIM1*, 2*, 3*, 4* | 1 | |
| 55557A | CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||
| 55557-60050 | 2 | ||
| 55606 | COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||
| 55606-42050 | 1 | ||
| 55607 | COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||
| 55607-42030 | 1 | $75.32 | |
| 55644 | PAD, INSTRUMENT PANEL UNDER SILENCER, NO.2 | ||
| 55644-42050 | 1 | ||
| 55670 | REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||
| 55670-42100 | دریچه کولر سمت شاگرد | 1 | |
| 55680A | REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||
| 55680-42040 | دریچه کولر | 1 | |
| 73900 | AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||
| Not applicable | |||
