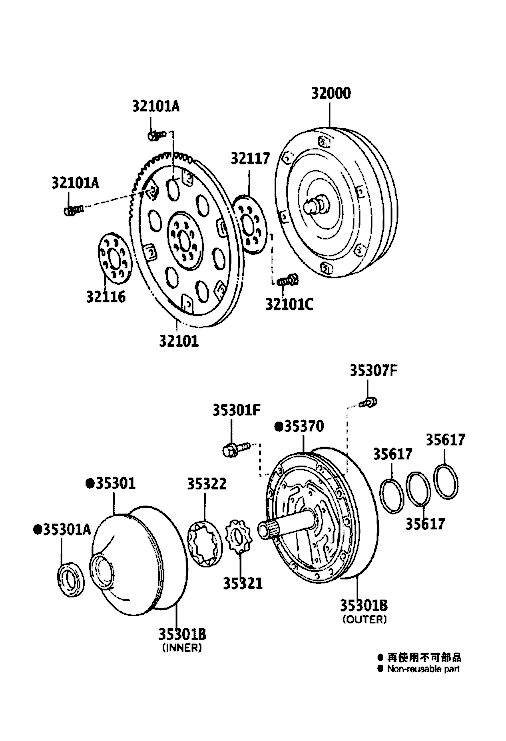

32000 | CONVERTER ASSY, TORQUE | ||
32000-71020 | توربین گیربکس | 1 | $2,200.70 |
32101 | GEAR SUB-ASSY, DRIVE PLATE & RING | ||
32101-60060 | فلایویل | 1 | $314.60 |
32101A | پیچ دور فلایویل | ||
90119-09026 | *9-1.25PX12.8-9, GREEN | 1 | $1.11 |
90119-09027 | *9-1.25PX12.8-8.8, YELLOW | 5 | $1.11 |
32101C | پیچ وسط فلایویل | ||
90105-10543 | *10-1.25PX22-15 | 8 | |
32116 | SPACER, DRIVE PLATE, FRONT | ||
32116-60050 | صفحه پولکی فلایویل | 1 | $72.75 |
32117 | SPACER, DRIVE PLATE, REAR | ||
32117-60060 | صفحه پولکی فلایویل | 1 | $31.59 |
35301 | BODY SUB-ASSY, FRONT OIL PUMP | ||
35301-60030 | اویل پمپ گیربکس | 1 | $399.21 |
35301A | SEAL, OIL (FOR FRONT OIL PUMP) | ||
90311-38083 | کاسه نمد اویل پمپ گیربکس | 1 | $10.48 |
35301B | RING, O (FOR FRONT OIL PUMP BODY) | ||
90301-99139 | OUTER | 1 | $7.80 |
90301-99148 | INNER | 1 | $4.40 |
35301F | BOLT (FOR FRONT OIL PUMP SETTING) | ||
90105-08451 | *8-1.25PX40-30 (10/2006 – 07/2009) | 10 | $1.23 |
91511-K0840 | *8-1.25PX40-30 (08/2004 – 09/2006) | 10 | $1.27 |
35307F | BOLT (FOR STATOR SHAFT) | ||
90148-60079 | 14 | $0.71 | |
35321 | دنده اویل پمپ گیربکس | ||
35321-50010 | T=10.736-10.742 | 1 | $94.73 |
35321-50020 | T=10.743-10.749 | 1 | $94.73 |
35321-50030 | T=10.750-10.756 | 1 | $94.73 |
35321-50040 | T=10.757-10.763 | 1 | $94.73 |
35321-50050 | T=10.764-10.770 | 1 | $94.73 |
35321-50060 | T=10.771-10.777 | 1 | $94.73 |
35321-50070 | T=10.778-10.784 | 1 | $94.73 |
35322 | دنده اویل پمپ گیربکس | ||
35322-50010 | T=10.736-10.742 | 1 | $81.01 |
35322-50020 | T=10.743-10.749 | 1 | $81.01 |
35322-50030 | T=10.750-10.756 | 1 | $81.01 |
35322-50040 | T=10.757-10.763 | 1 | $81.01 |
35322-50050 | T=10.764-10.770 | 1 | $81.01 |
35322-50060 | T=10.771-10.777 | 1 | $81.01 |
35322-50070 | T=10.778-10.784 | 1 | $81.01 |
35370 | SHAFT ASSY, STATOR | ||
35370-50030 | 1 | $419.53 | |
35617 | RING, CLUTCH DRUM OIL SEAL | ||
35617-50030 | (09/2007 – 07/2009) | 3 | $8.50 |
35617-60020 | (08/2004 – 08/2007) | 3 | $5.69 |
![](https://toyotacar-co.com/wp-content/uploads/2020/12/توربین-پرادو-6-506x350.png)
