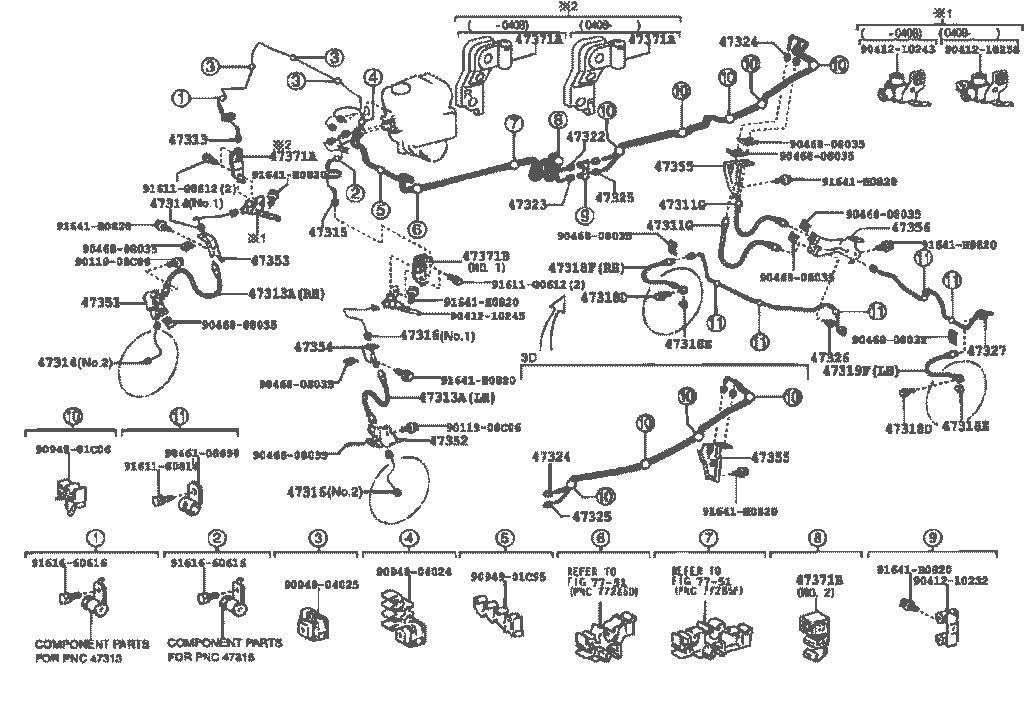

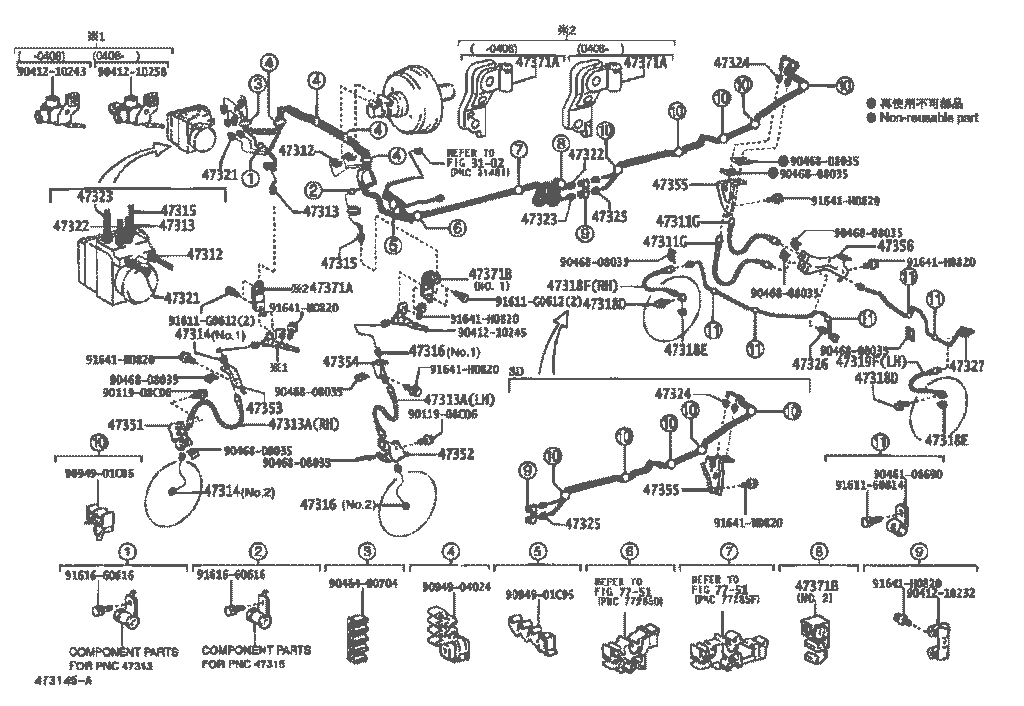

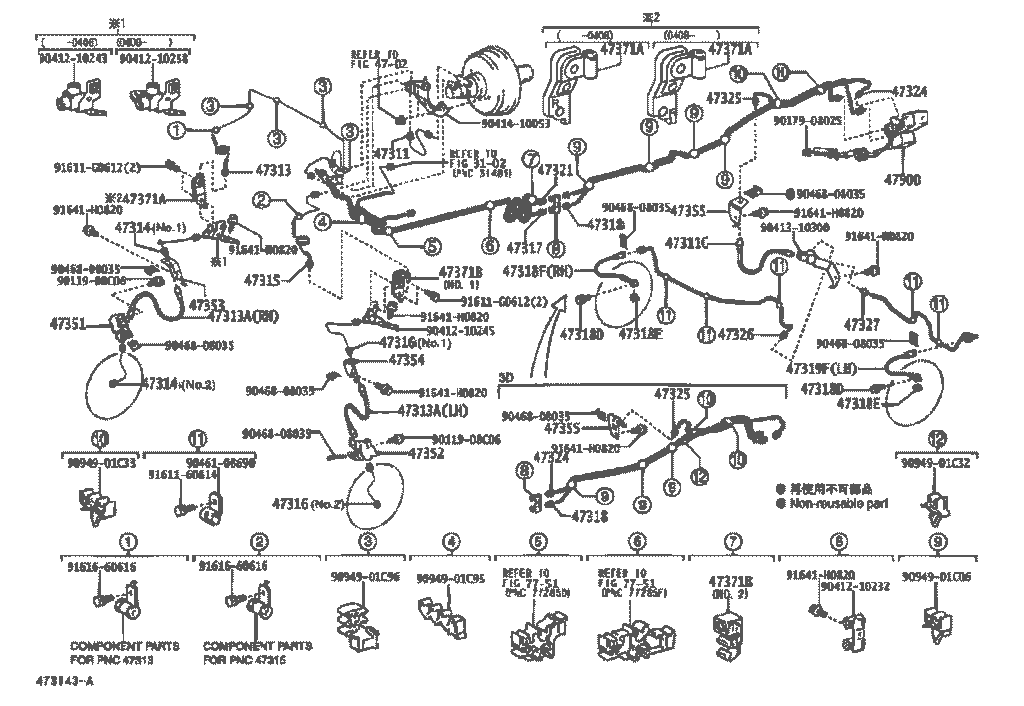

شلنگ ترمز پرادو و پمپ ای بی اس (ABS) پرادو 2005-2009
| 47311 | TUBE, FRONT BRAKE, NO.1 | ||
| 47311-60610 | 1 | $6.60 | |
| 47311G | شلنگ ترمز | ||
| 90947-02D39 | 1 | $45.70 | |
| 90947-02D40 | ABS-WITH | 2 | $43.53 |
| 47313 | TUBE, FRONT BRAKE, NO.3 | ||
| 47313-35A00 | ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) | 1 | $43.33 |
| 47313-3D171 | ABS-WITH | 1 | $21.98 |
| 47313-60381 | 1 | $42.58 | |
| 47313A | HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||
| 90947-02D35 | شلنگ ترمز جلو | 2 | $43.53 |
| 47314 | TUBE, FRONT BRAKE, NO.4 | ||
| 47314-35310 | NO.1 | 1 | $9.09 |
| 47314-35320 | NO.2 | 1 | $6.25 |
| 47315 | TUBE, FRONT BRAKE, NO.5 | ||
| 47315-35451 | ABS-WITH | 1 | $43.33 |
| 47315-35470 | ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) | 1 | $21.98 |
| 47315-60501 | 1 | $23.09 | |
| 47316 | TUBE, FRONT BRAKE, NO.6 | ||
| 47316-35270 | NO.1 | 1 | $9.09 |
| 47316-35280 | NO.2 | 1 | $6.25 |
| 47317 | TUBE, FRONT BRAKE, NO.7 | ||
| Not applicable | |||
| 47318 | TUBE, FRONT BRAKE, NO.8 | ||
| 47318-60140 | 1 | $45.55 | |
| 47318D | BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||
| 90401-10058 | 2 | $8.30 | |
| 47318E | GASKET(FOR REAR FLEXIBLE HOSE) | ||
| 47389-50020 | 2 | $7.63 | |
| 47318F | HOSE, FLEXIBLE(FOR REAR RH) | ||
| 90947-02D31 | شلنگ ترمز عقب راست | 1 | $43.53 |
| 47319F | HOSE, FLEXIBLE(FOR REAR LH) | ||
| 90947-02D32 | شلنگ ترمز عقب چپ | 1 | $43.53 |
| 47321 | TUBE, REAR BRAKE, NO.1 | ||
| 47321-35850 | ABS-WITH | 1 | $31.00 |
| 47321-60300 | 1 | $45.55 | |
| 47324 | TUBE, REAR BRAKE, NO.4 | ||
| 47324-35310 | ABS-WITH | 1 | $37.16 |
| 47324-60340 | 1 | $45.55 | |
| 47325 | TUBE, REAR BRAKE, NO.5 | ||
| 47325-35390 | ABS-WITH | 1 | $37.16 |
| 47325-60300 | 1 | $19.57 | |
| 47326 | TUBE, REAR BRAKE, NO.6 | ||
| 47326-35130 | ABS-WITH | 1 | $24.87 |
| 47326-60320 | 1 | $26.09 | |
| 47327 | TUBE, REAR BRAKE, NO.7 | ||
| 47327-35100 | ABS-WITH | 1 | $21.98 |
| 47327-60150 | 1 | $19.57 | |
| 47351 | BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||
| 47351-35350 | 1 | $13.92 | |
| 47352 | BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||
| 47352-35390 | 1 | $13.92 | |
| 47353 | BRACKET, FLEXIBLE HOSE(FOR REAR) | ||
| 47353-35140 | 1 | $8.42 | |
| 47354 | BRACKET, FRONT FLEXIBLE HOSE | ||
| 47354-35120 | 1 | $8.42 | |
| 47355 | BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT) | ||
| 47355-35130 | ABS-WITH | 1 | $15.89 |
| 47355-60170 | 1 | $9.53 | |
| 47371A | CLAMP, BRAKE TUBE, NO.1 | ||
| 47371-60170 | 1 | $14.00 | |
| 47371B | CLAMP, BRAKE TUBE, NO.6 | ||
| 47371-60160 | NO.1 | 1 | $14.43 |
| 77299-32030 | NO.2 | 1 | $6.29 |
| 47900 | VALVE ASSY, LOAD SENSING W/SPRING | ||
| 47900-60340 | 1 | $378.01 | |
| 90119-08C06 | *** STD. PART | $1.03 | |
| 90179-08025 | *** STD. PART | $1.15 | |
| 90412-10232 | *** STD. PART | $24.71 | |
| 90412-10243 | *** STD. PART | $20.60 | |
| 90412-10245 | *** STD. PART | $20.60 | |
| 90412-10258 | *** STD. PART | $24.71 | |
| 90413-10300 | *** STD. PART | $25.94 | |
| 90414-10053 | *** STD. PART | $30.21 | |
| 90461-08690 | *** STD. PART | $2.57 | |
| 90468-08035 | *** STD. PART | $1.50 | |
| 90949-01C06 | *** STD. PART | $3.72 | |
| 90949-01C32 | *** STD. PART | $3.87 | |
| 90949-01C33 | *** STD. PART | $3.87 | |
| 90949-01C95 | *** STD. PART | $9.88 | |
| 90949-01C96 | *** STD. PART | $10.24 | |
| 91611-60814 | *** STD. PART | $0.95 | |
| 91611-G0612 | *** STD. PART | $1.03 | |
| 91616-60616 | *** STD. PART | $1.34 | |
| 91641-H0820 | *** STD. PART | $1.07 | |

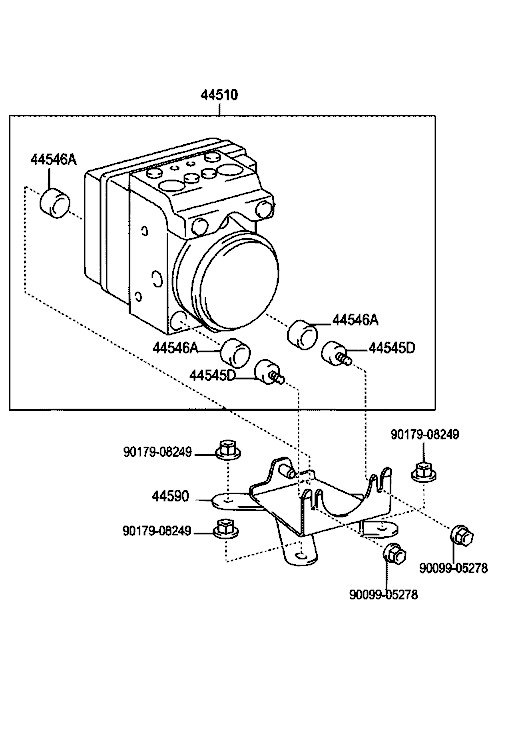

| 44510 | پمپ ای بی اس (ABS) | ||
| 44050-60090 | ABS-WITH | 1 | $3,622.50 |
| 44545D | HOLDER, BRAKE ACTUATOR BOLT | ||
| 44545-12010 | ABS-WITH | 2 | $5.77 |
| 44546A | CUSHION, BRAKE ACTUATOR BOLT | ||
| 44546-60060 | ABS-WITH | 3 | $2.93 |
| 44590 | BRACKET ASSY, BRAKE ACTUATOR | ||
| 44590-60020 | پایه پمپ ای بی اس | 1 | $22.26 |
| 90099-05278 | *** STD. PART | $0.83 | |
| 90179-08249 | *** STD. PART | $1.03 | |
| 47311G | HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||
| 90947-02D39 | شلنگ ترمز | 1 | $45.70 |
| 90947-02D40 | ABS-WITH | 2 | $43.53 |
| 47313 | TUBE, FRONT BRAKE, NO.3 | ||
| 47313-35A00 | ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) | 1 | $43.33 |
| 47313-3D171 | ABS-WITH | 1 | $21.98 |
| 47313-60381 | 1 | $42.58 | |
| 47313A | HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||
| 90947-02D35 | شلنگ ترمز جلو | 2 | $43.53 |
| 47314 | TUBE, FRONT BRAKE, NO.4 | ||
| 47314-35310 | NO.1 | 1 | $9.09 |
| 47314-35320 | NO.2 | 1 | $6.25 |
| 47315 | TUBE, FRONT BRAKE, NO.5 | ||
| 47315-35451 | ABS-WITH | 1 | $43.33 |
| 47315-35470 | ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) | 1 | $21.98 |
| 47315-60501 | 1 | $23.09 | |
| 47316 | TUBE, FRONT BRAKE, NO.6 | ||
| 47316-35270 | NO.1 | 1 | $9.09 |
| 47316-35280 | NO.2 | 1 | $6.25 |
| 47318D | BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||
| 90401-10058 | 2 | $8.30 | |
| 47318E | GASKET(FOR REAR FLEXIBLE HOSE) | ||
| 47389-50020 | 2 | $7.63 | |
| 47318F | HOSE, FLEXIBLE(FOR REAR RH) | ||
| 90947-02D31 | شلنگ ترمز عقب راست | 1 | $43.53 |
| 47319F | HOSE, FLEXIBLE(FOR REAR LH) | ||
| 90947-02D32 | شلنگ ترمز عقب چپ | 1 | $43.53 |
| 47322 | TUBE, REAR BRAKE, NO.2 | ||
| 47322-35A00 | ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) | 1 | $43.33 |
| 47322-3D070 | ABS-WITH | 1 | $58.67 |
| 47323 | TUBE, REAR BRAKE, NO.3 | ||
| 47323-35260 | ABS-WITH | 1 | $62.31 |
| 47323-35280 | ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL) | 1 | $43.33 |
| 47324 | TUBE, REAR BRAKE, NO.4 | ||
| 47324-35310 | ABS-WITH | 1 | $37.16 |
| 47324-60340 | 1 | $45.55 | |
| 47325 | TUBE, REAR BRAKE, NO.5 | ||
| 47325-35390 | ABS-WITH | 1 | $37.16 |
| 47325-60300 | 1 | $19.57 | |
| 47326 | TUBE, REAR BRAKE, NO.6 | ||
| 47326-35130 | ABS-WITH | 1 | $24.87 |
| 47326-60320 | 1 | $26.09 | |
| 47327 | TUBE, REAR BRAKE, NO.7 | ||
| 47327-35100 | ABS-WITH | 1 | $21.98 |
| 47327-60150 | 1 | $19.57 | |
| 47351 | BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||
| 47351-35350 | 1 | $13.92 | |
| 47352 | BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||
| 47352-35390 | 1 | $13.92 | |
| 47353 | BRACKET, FLEXIBLE HOSE(FOR REAR) | ||
| 47353-35140 | 1 | $8.42 | |
| 47354 | BRACKET, FRONT FLEXIBLE HOSE | ||
| 47354-35120 | 1 | $8.42 | |
| 47355 | BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT) | ||
| 47355-35130 | ABS-WITH | 1 | $15.89 |
| 47355-60170 | 1 | $9.53 | |
| 47356 | BRACKET, FLEXIBLE HOSE, NO.6 | ||
| 47356-35010 | ABS-WITH | 1 | $22.26 |
| 47371A | CLAMP, BRAKE TUBE, NO.1 | ||
| 47371-60170 | 1 | $14.00 | |
| 47371B | CLAMP, BRAKE TUBE, NO.6 | ||
| 47371-60160 | NO.1 | 1 | $14.43 |
| 77299-32030 | NO.2 | 1 | $6.29 |
| 90119-08C06 | *** STD. PART | $1.03 | |
| 90412-10232 | *** STD. PART | $24.71 | |
| 90412-10243 | *** STD. PART | $20.60 | |
| 90412-10245 | *** STD. PART | $20.60 | |
| 90412-10258 | *** STD. PART | $24.71 | |
| 90461-08690 | *** STD. PART | $2.57 | |
| 90468-08035 | *** STD. PART | $1.50 | |
| 90949-01C06 | *** STD. PART | $3.72 | |
| 90949-01C95 | *** STD. PART | $9.88 | |
| 90949-04024 | *** STD. PART | $6.33 | |
| 90949-04025 | *** STD. PART | $3.68 | |
| 91611-60814 | *** STD. PART | $0.95 | |
| 91611-G0612 | *** STD. PART | $1.03 | |
| 91616-60616 | *** STD. PART | $1.34 | |
| 91641-H0820 | *** STD. PART | $1.07 | |
