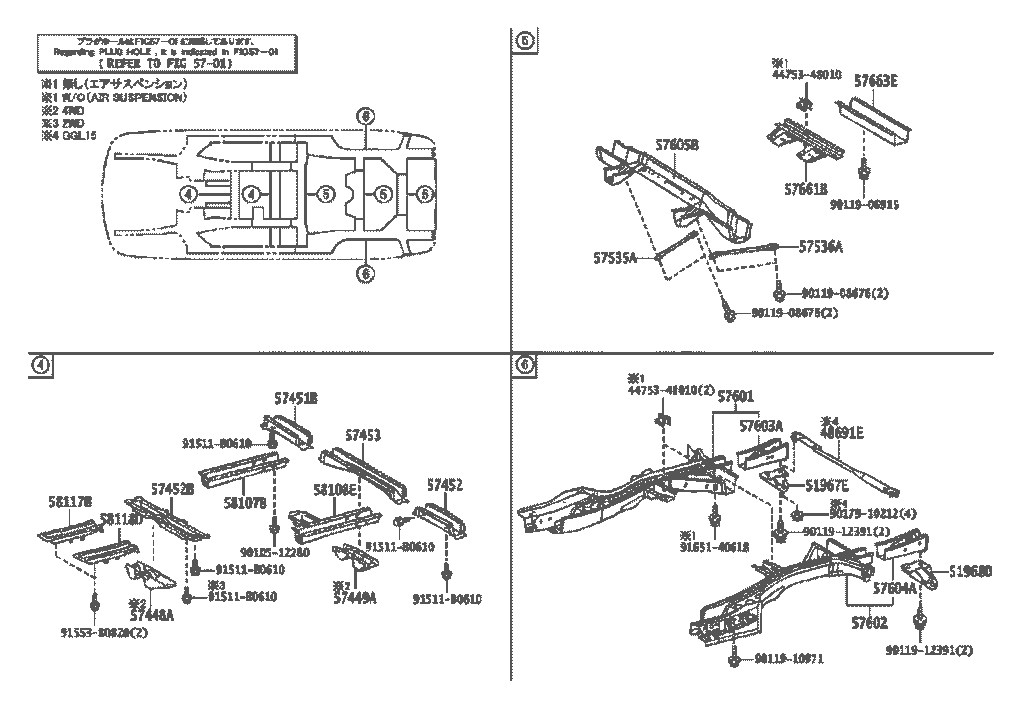

شاسی و سرشاسی لکسوس RX350 مدل 2008-2012
| 51963F | HOOK, TRANSPORT | ||
| 51961-48040 | 1 | $25.03 | |
| 51964F | HOOK, TRANSPORT, LH | ||
| 51961-48040 | 1 | $25.03 | |
| 53704D | SUPPORT SUB-ASSY, BATTERY, LH | ||
| 53704-48030 | 1 | $70.06 | |
| 57016 | REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||
| 57016-48020 | 1 | $116.40 | |
| 57017 | REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||
| 57017-48020 | 1 | $116.40 | |
| 57021 | BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH | ||
| 57021-48012 | 1 | $72.31 | |
| 57022 | BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH | ||
| 57022-48012 | 1 | $84.10 | |
| 57077 | BOX SUB-ASSY, TORQUE, FRONT RH | ||
| 57077-48040 | سرشاسی کامل جلو راست | 1 | $216.86 |
| 57078A | BOX SUB-ASSY, TORQUE, FRONT LH | ||
| 57078-48050 | 1 | $216.86 | |
| 57101 | MEMBER SUB-ASSY, FRONT SIDE, RH | ||
| 57027-48900 | 1 | $534.07 | |
| 57102 | MEMBER SUB-ASSY, FRONT SIDE, LH | ||
| 57028-48900 | سرشاسی کامل جلو چپ | 1 | $557.00 |
| 57105 | BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH | ||
| 57105-28120 | 1 | $106.35 | |
| 57106E | BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH | ||
| 57106-28120 | 1 | $106.35 | |
| 57107G | BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH | ||
| 57107-48030 | 1 | $182.74 | |
| 57108F | BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH | ||
| 57108-48030 | 1 | $182.74 | |
| 57111 | MEMBER, FRONT SIDE, RH | ||
| 57111-48020 | سرشاسی داخلی راست | 1 | $235.60 |
| 57112 | MEMBER, FRONT SIDE, LH | ||
| 57112-48021 | سرشاسی داخلی چپ | 1 | $235.60 |
| 57113 | EXTENSION, FRONT SIDE MEMBER, RH | ||
| 57113-48021 | 1 | $70.06 | |
| 57114 | EXTENSION, FRONT SIDE MEMBER, LH | ||
| 57114-48021 | 1 | $70.06 | |
| 57115A | PLATE, FRONT SIDE MEMBER, OUTER RH | ||
| 57115-48020 | سرشاسی بیرونی راست | 1 | $186.38 |
| 57116A | PLATE, FRONT SIDE MEMBER, OUTER LH | ||
| 57116-48020 | سرشاسی بیرونی چپ | 1 | $186.38 |
| 57145A | REINFORCEMENT, FRONT SIDE MEMBER, REAR RH | ||
| 57145-48030 | 1 | $17.55 | |
| 57146A | REINFORCEMENT, FRONT SIDE MEMBER, REAR LH | ||
| 57146-48030 | 1 | $17.55 | |
| 57151A | REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||
| 57151-48020 | 1 | $19.85 | |
| 57152 | REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | ||
| 57152-48020 | 1 | $19.85 | |
| 57163C | REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH | ||
| 57163-48020 | 1 | $55.04 | |
| 57164B | REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH | ||
| 57164-48020 | 1 | $55.04 | |
| 57171D | PLATE, FRONT SIDE MEMBER TO FLOOR, RH | ||
| 57171-48030 | 1 | $8.50 | |
| 57172D | PLATE, FRONT SIDE MEMBER TO FLOOR, LH | ||
| 57172-48020 | 1 | $8.50 | |
| 57177A | PLATE, FRONT SIDE MEMBER, NO.7 RH | ||
| 57177-48010 | 1 | $23.37 | |
| 57178 | PLATE, FRONT SIDE MEMBER, NO.7 LH | ||
| 57178-48010 | 1 | $23.37 | |
| 57181B | PLATE, FRONT SIDE MEMBER, NO.3 RH | ||
| 57181-48020 | 1 | $256.83 | |
| 57182C | REINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH | ||
| 57182-48020 | 1 | $256.83 | |
| 57191A | MEMBER, FRONT SIDE, INNER REAR RH | ||
| 57191-48020 | 1 | $348.68 | |
| 57192A | MEMBER, FRONT SIDE, INNER REAR LH | ||
| 57192-48020 | 1 | $348.68 | |
| 57195A | REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH | ||
| 57195-48020 | 1 | $185.94 | |
| 57196A | REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH | ||
| 57196-48020 | 1 | $185.94 | |
| 57249 | BRACKET, FLEXIBLE HOSE, NO.1 | ||
| 57249-10040 | 1 | $8.30 | |
| 57249A | BRACKET, FREXIBLE HOUSE, NO.1, LH | ||
| 57249-10040 | 1 | $8.30 | |
| 57401 | MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||
| 57401-48050 | پایه فلزی رکاب راست | 1 | |
| 57402 | MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||
| 57402-48050 | پایه فلزی رکاب چپ | 1 | |
| 57427A | REINFORCEMENT, FRONT FLOOR, NO.3 RH | ||
| 57427-48030 | 1 | $119.24 | |
| 57428A | REINFORCEMENT, FRONT FLOOR, NO.3 LH | ||
| 57428-48030 | 1 | $114.66 |
| 44753-48010 | *** STD. PART | $1.50 | |
| 48691E | DAMPER, SUSPENSION TOWER | ||
| Not applicable | |||
| 51967E | HOOK, TRANSPORT, REAR RH | ||
| 51967-48030 | 1 | ||
| 51968D | HOOK, TRANSPORT, REAR LH | ||
| 51968-48030 | 1 | ||
| 57448A | BRACKET, DIFF LOCK LEVER MOUNT, NO.1 | ||
| 57448-48030 | 1 | $63.62 | |
| 57449A | BRACKET, DIFF LOCK LEVER MOUNT, NO.2 | ||
| 57449-48011 | 1 | $70.06 | |
| 57451B | MEMBER, FRONT FLOOR CROSS, RH | ||
| 57458-48012 | 1 | $111.38 | |
| 57452 | MEMBER, FRONT FLOOR CROSS, LH | ||
| 57459-48015 | 1 | $98.64 | |
| 57452B | MEMBER, FRONT FLOOR CROSS, NO.2 | ||
| 57452-48032 | 1 | $137.47 | |
| 57453 | MEMBER, FRONT FLOOR CROSS, NO.3 | ||
| 57453-48011 | 1 | $142.29 | |
| 57535A | BRACE, FRONT FLOOR, RH | ||
| 57535-48060 | 1 | ||
| 57536A | BRACE, FRONT FLOOR, LH | ||
| 57536-48040 | 1 | ||
| 57601 | MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||
| 57601-48090 | شاسی عقب راست | 1 | |
| 57602 | MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||
| 57602-48090 | شاسی عقب چپ | 1 | |
| 57603A | MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||
| 57606-48060 | 1 | ||
| 57604A | MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||
| 57607-48020 | 1 | ||
| 57605B | MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||
| 57605-48070 | 1 | ||
| 57661B | MEMBER, REAR FLOOR CROSS, FRONT | ||
| 57603-48050 | 1 | ||
| 57663E | MEMBER, REAR FLOOR CROSS, CENTER | ||
| 57663-48040 | 1 | ||
| 58107B | REINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH | ||
| 58107-48020 | 1 | $245.92 | |
| 58108E | REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH | ||
| 58108-48020 | 1 | $267.74 | |
| 58117B | REINFORCEMENT, FRONT FLOOR SIDE, RH | ||
| 58117-48030 | 1 | $70.06 | |
| 58118D | REINFORCEMENT, FRONT FLOOR SIDE, LH | ||
| 58118-48030 | 1 | $70.06 |
