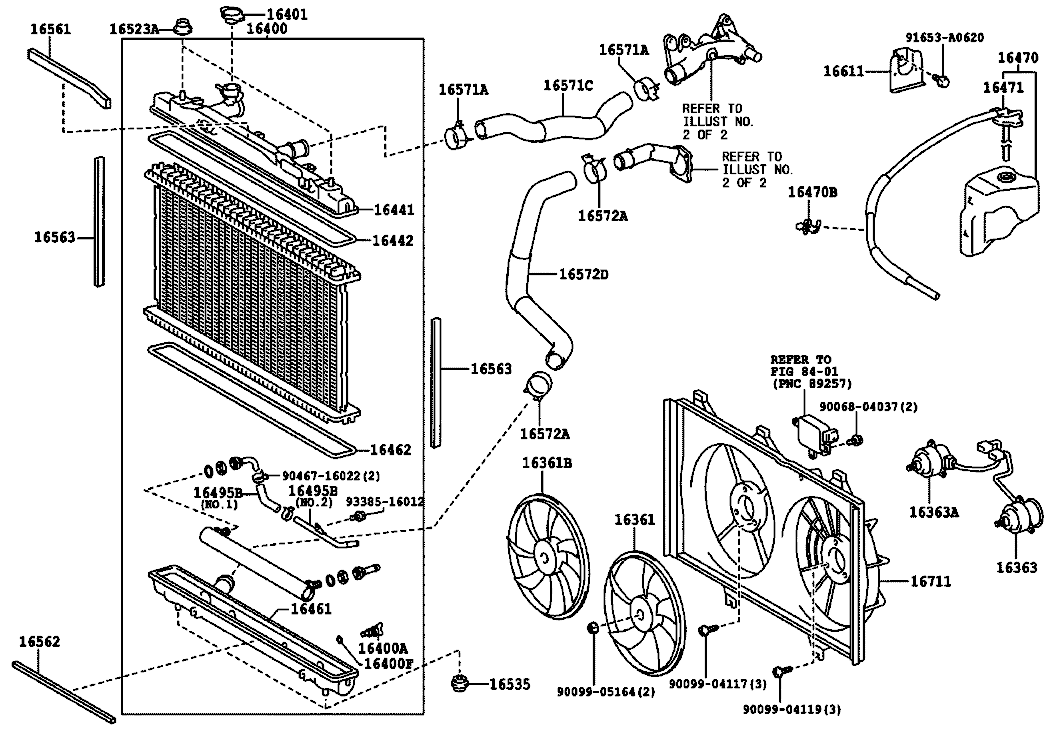

رادیاتور آب و موتور فن لکسوس es350 مدل 2007-2009
| 16361 | FAN | ||
| 16361-31180 | پروانه فن پنج پر | 1 | $62.26 |
| 16361B | FAN, NO.2 | ||
| 16361-31130 | پروانه فن هفت پر | 1 | $83.95 |
| 16363 | MOTOR, COOLING FAN | ||
| 16363-20270 | موتور فن چپ | 1 | $238.18 |
| 16363A | MOTOR, COOLING FAN, NO.2 | ||
| 16363-31090 | موتور فن راست | 1 | $250.56 |
| 16400 | RADIATOR ASSY | ||
| 16400-31470 | رادیاتور آب | 1 | $435.69 |
| 16400A | COCK SUB-ASSY, RADIATOR DRAIN | ||
| 16417-21280 | پیچ تخلیه | 1 | $5.30 |
| 16400F | PACKING(FOR RADIATOR DRAIN COCK) | ||
| 16492-21050 | 1 | $3.24 | |
| 16401 | CAP SUB-ASSY, RADIATOR | ||
| 16401-28430 | درب رادیاتور | 1 | $27.48 |
| 16441 | TANK, RADIATOR, UPPER | ||
| 16441-31470 | درپوش بالای رادیاتور | 1 | $191.08 |
| 16442 | RING, O(FOR RADIATOR UPPER TANK) | ||
| 16442-31410 | 1 | $57.37 | |
| 16461 | TANK, RADIATOR, LOWER | ||
| 16460-31470 | مخزن زیرین رادیاتور | 1 | $157.48 |
| 16462 | RING, O(FOR RADIATOR LOWER TANK) | ||
| 16442-31410 | 1 | $57.37 | |
| 16470 | TANK ASSY, RADIATOR RESERVE | ||
| 16470-28100 | مخزن آب ذخیره رادیاتور | 1 | $83.11 |
| 16470B | CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||
| 90469-12014 | 1 | $2.89 | |
| 16471 | CAP SUB-ASSY, RESERVE TANK | ||
| 16405-28070 | درب مخزن ذخیره رادیاتور | 1 | $20.12 |
| 16495B | PIPE (FOR ATM OIL COOLER) | ||
| 16492-31470 | NO.1 | 1 | $9.53 |
| 16495-31470 | NO.2 | 1 | $22.42 |
| 16523A | CUSHION, RADIATOR SUPPORT | ||
| 16523-20020 | 2 | $10.28 | |
| 16535 | SUPPORT, RADIATOR, LOWER | ||
| 16535-20010 | 2 | $9.73 | |
| 16561 | SEAL, RADIATOR TO SUPPORT, NO.1 | ||
| 16561-31010 | 1 | $10.56 | |
| 16562 | SEAL, RADIATOR TO SUPPORT, NO.2 | ||
| 16562-31010 | 1 | $5.89 | |
| 16563 | SEAL, RADIATOR TO SUPPORT, NO.3 | ||
| 16563-31010 | 2 | ||
| 16571A | CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||
| 90466-35001 | 2 | $9.17 | |
| 16571C | HOSE, RADIATOR, NO.1 | ||
| 16571-31180 | شلنگ رادیاتور | 1 | $7.87 |
| 16572A | CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||
| 90466-35001 | 2 | $9.17 | |
| 16572D | HOSE, RADIATOR, NO.2 | ||
| 16572-31200 | شلنگ رادیاتور | 1 | $33.76 |
| 16611 | BRACKET, RADIATOR RESERVE TANK | ||
| 16611-28010 | 1 | $10.56 | |
| 16711 | SHROUD, FAN | ||
| 16711-31280 | بادگیر رادیاتور | 1 | $149.96 |
| 90068-04037 | *** STD. PART | $1.27 | |
| 90099-04117 | *** STD. PART | $0.36 | |
| 90099-04119 | *** STD. PART | $0.71 | |
| 90099-05164 | *** STD. PART | $1.19 | |
| 90467-16022 | *** STD. PART | $2.73 | |
| 91653-A0620 | *** STD. PART | $0.71 | |
| 93385-16012 | *** STD. PART | $1.34 | |
| |
|||
| 16261 | HOSE, WATER BY-PASS | ||
| 16261-31050 | 1 | $12.26 | |
| 16261A | CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||
| 96136-42701 | 2 | $5.10 | |
| 16264 | HOSE, WATER BY-PASS, NO.2 | ||
| 16264-31081 | 1 | $7.87 | |
| 16264E | CLIP(FOR WATER BY-PASS HOSE NO.2) | ||
| 96137-41501 | 2 | $3.16 | |
| 16267 | HOSE, WATER BY-PASS, NO.3 | ||
| 16267-31040 | 1 | $7.91 | |
| 16267A | CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||
| 96137-41501 | 2 | $3.16 | |
| 16321 | INLET, WATER | ||
| 16321-31011 | 1 | $35.39 | |
| 16322 | PIPE, WATER INLET | ||
| 16322-31030 | لوله ورودی | 1 | $87.77 |
| 16323 | HOUSING, WATER INLET | ||
| 16323-0W011 | درب ترموستات | 1 | $73.14 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | ||
| 16325-62010 | 1 | $6.37 | |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | ||
| 16325-31010 | 1 | $1.62 | |
| 16331 | OUTLET, WATER | ||
| 16331-31150 | لوله خروجی | 1 | $94.14 |
| 16331A | ترموستات | ||
| 90916-03133 | WAX TYPE (OPENING TEMPERATURE – FULLY OPEN TEMPERATURE) 82-95 | 1 | $41.56 |
| 16341 | GASKET, WATER OUTLET | ||
| 16341-31010 | 2 | $7.16 | |
| 90910-09127 | *** STD. PART | $12.61 | |
| 91551-80620 | *** STD. PART | $0.71 | |
| 91551-80660 | *** STD. PART | $0.99 | |
| 91671-80612 | *** STD. PART | $0.71 | |
| 92122-80616 | *** STD. PART | $0.91 | |
| 94151-80600 | *** STD. PART | $0.71 | |
| 96761-24019 | *** STD. PART | $3.26 | |
| 96761-24021 | *** STD. PART | $3.01 | |
