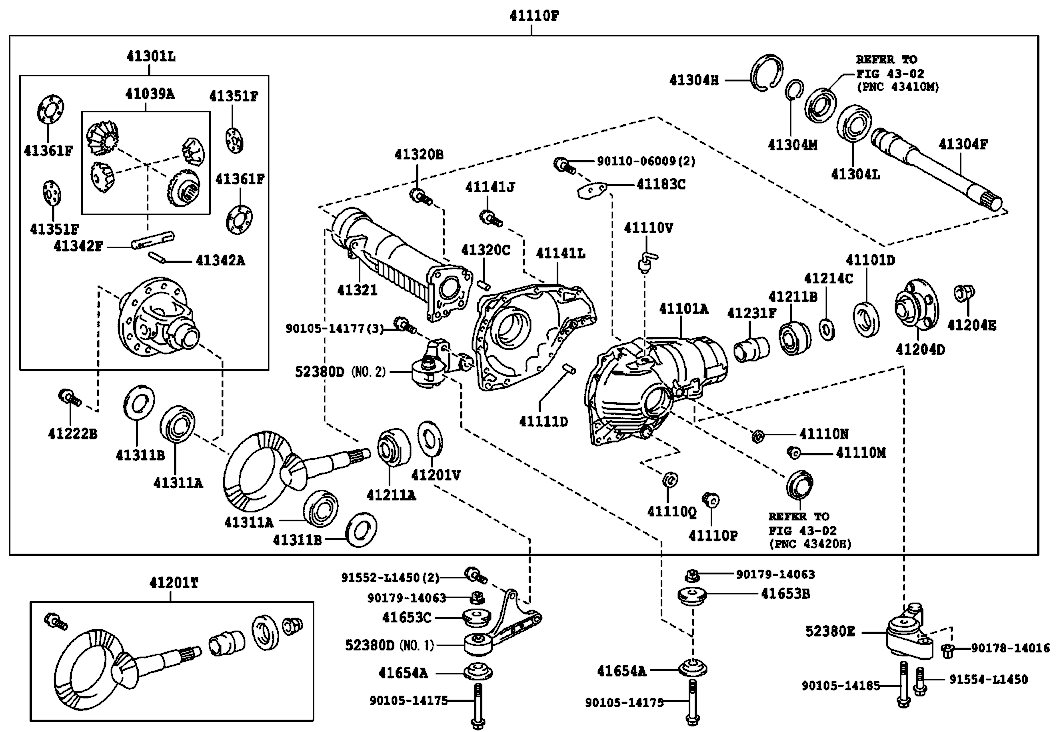

دیفرانسیل جلو لندکروزر 2008-2012
دیفرانسیل جلو لندکروزر چیست:
دیفرانسیل جلو لندکروزر در بخش انتقال قدرت لوازم یدکی تویوتا لندکروزر کار انتقال قدرت موتور از گیربکس به چرخ های جلو را انجام میدهد. دیفرانسیل جلو لندکروزر قدرت و گشتاور را به صورت مساوی به چرخ های جلو منتقل نمیکند چرا که ممکن است یکی از چرخ ها هرز بچرخد یا در هنگام دور زدن خودرو چرخی که به مرکز پیچ نزدیکتر است مسافت کمتری از چرخی که از مرکز پیچ دور است می پیماید و به همین دلیل دیفرانسیل جلو قدرت و گشتاور را از یک چرخ به چرخ دیگری منتقل میکند و یا چرخی که مسافت کمتری میپیماید از طریق دیفرانسیل سرعت چرخش کمتری دریافت میکند تا اصطلاحا چرخ ها قفل نشوند.
| 41039A | GEAR KIT, DIFFERENTIAL | ||
| 41039-34121 | دنده دشلی دیفرانسیل جلو لندکروزر | 1 | $478.75 |
| 41101A | CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||
| 41111-34050 | پوسته دیفرانسیل جلو لندکروزر | 1 | $701.58 |
| 41101D | SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) | ||
| 90311-46006 | کاسه نمد پنیون دیفرانسیل جلو لندکروزر داخلی | 1 | $48.75 |
| 41110F | دیفرانسیل جلو لندکروزر | ||
| 41110-60B90 | FINAL GEAR RATIO=41:10=4.100 | 1 | $3,262.35 |
| 41110M | PLUG, FRONT DIFFERENTIAL FILLER | ||
| 90341-18066 | 1 | $4.67 | |
| 41110N | GASKET, FRONT DIFFERENTIAL FILLER PLUG | ||
| 12157-10010 | 1 | $0.91 | |
| 41110P | PLUG, FRONT DIFFERENTIAL DRAIN | ||
| 90341-24014 | 1 | $11.35 | |
| 41110Q | GASKET, FRONT DIFFERENTIAL DRAIN PLUG | ||
| 90430-24003 | 1 | $1.34 | |
| 41110V | UNION (FOR FRONT DIFFERENTIAL) | ||
| 90407-10027 | شیر تخلیه بخار روغن دیفرانسیل جلو لندکروزر | 1 | $4.31 |
| 41111D | PIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER) | ||
| 90250-10017 | 2 | $2.13 | |
| 41141J | BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||
| 91552-01035 | *10-1.25PX35-26 | 11 | $1.78 |
| 41141L | RETAINER, FRONT DIFFERENTIAL CROSS SHAFT BEARING | ||
| 41141-34010 | 1 | $429.53 | |
| 41183C | DEFLECTOR, FRONT DIFFERENTIAL BREATHER PLUG OIL | ||
| 41183-34010 | 1 | $6.92 | |
| 41201T | کرانویل پنیون دیفرانسیل جلو لندکروزر | ||
| 41201-80482 | FINAL GEAR RATIO=41:10=4.100 | 1 | $1,284.25 |
| 41201V | SHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST) | ||
| 90564-63065 | T=1.825 | 1 | $9.49 |
| 90564-63066 | T=1.850 | 1 | $9.49 |
| 90564-63067 | T=1.875 | 1 | $9.49 |
| 90564-63068 | T=1.900 | 1 | $9.49 |
| 90564-63069 | T=1.925 | 1 | $9.49 |
| 90564-63070 | T=1.950 | 1 | $9.49 |
| 90564-63071 | T=1.975 | 1 | $9.49 |
| 90564-63072 | T=2.000 | 1 | $9.49 |
| 90564-63074 | T=2.025 | 1 | $9.49 |
| 90564-63075 | T=2.050 | 1 | $9.49 |
| 90564-63076 | T=2.075 | 1 | $9.49 |
| 90564-63077 | T=2.100 | 1 | $11.82 |
| 90564-63078 | T=2.125 | 1 | $11.82 |
| 90564-63079 | T=2.150 | 1 | $11.82 |
| 90564-63080 | T=2.175 | 1 | $11.82 |
| 90564-63081 | T=2.200 | 1 | $11.82 |
| 90564-63082 | T=2.225 | 1 | $11.82 |
| 90564-63083 | T=2.250 | 1 | $11.82 |
| 90564-63084 | T=2.275 | 1 | $11.82 |
| 41204D | FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||
| 41204-34050 | فلنچ دیفرانسیل جلو لندکروزر | 1 | $145.10 |
| 41204E | NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||
| 90179-22029 | 1 | $4.47 | |
| 41211A | BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||
| 90366-40114 | بلبرینگ پنیون دیفرانسیل جلو لندکروزر | 1 | $226.94 |
| 41211B | BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||
| 90363-35063 | بلبرینگ پنیون دیفرانسیل جلو لندکروزر بیرونی | 1 | $174.44 |
| 41214C | SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||
| 41214-34010 | 1 | $11.94 | |
| 41222B | BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||
| 90105-12365 | 12 | $1.70 | |
| 41231F | SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||
| 41231-34040 | 1 | $16.84 | |
| 41301L | CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1 | ||
| 41301-60150 | هوزینگ دیفرانسیل جلو لندکروزر | 1 | $938.17 |
| 41304F | SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH | ||
| 41337-60020 | 1 | $280.16 | |
| 41304H | RING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT) | ||
| 90521-75009 | 1 | $6.60 | |
| 41304L | BEARING (FOR FRONT DIFFERNTIAL SIDE GEAR SHAFT RH) | ||
| 90363-47002 | 1 | $31.55 | |
| 41304M | RING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) | ||
| 90520-44040 | 1 | $4.63 | |
| 41311A | BEARING (FOR FRONT DIFFERENTIAL CASE) | ||
| 90366-58013 | بلبرینگ دیفرانسیل جلو لندکروزر | 2 | $122.56 |
| 41311B | WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||
| 90564-50238 | T=1.50 | X | $9.49 |
| 90564-50239 | T=1.52 | X | $9.49 |
| 90564-50240 | T=1.54 | X | $11.82 |
| 90564-50241 | T=1.56 | X | $11.82 |
| 90564-50242 | T=1.58 | X | $11.82 |
| 90564-50243 | T=1.60 | X | $11.82 |
| 90564-50244 | T=1.62 | X | $11.82 |
| 90564-50245 | T=1.64 | X | $11.82 |
| 90564-50246 | T=1.66 | X | $11.82 |
| 90564-50247 | T=1.68 | X | $11.82 |
| 90564-50248 | T=1.70 | X | $11.82 |
| 90564-50249 | T=1.72 | X | $14.19 |
| 90564-50250 | T=1.74 | X | $14.19 |
| 90564-50251 | T=1.76 | X | $11.82 |
| 90564-50252 | T=1.78 | X | $11.82 |
| 90564-50253 | T=1.80 | X | $11.82 |
| 90564-50254 | T=1.82 | X | $11.82 |
| 90564-50255 | T=1.84 | X | $11.82 |
| 90564-50256 | T=1.86 | X | $11.82 |
| 90564-50257 | T=1.88 | X | $11.82 |
| 90564-50258 | T=1.90 | X | $11.82 |
| 90564-50259 | T=1.92 | X | $11.82 |
| 90564-50260 | T=1.94 | X | $11.82 |
| 90564-50261 | T=1.96 | X | $11.82 |
| 90564-50262 | T=1.98 | X | $11.82 |
| 90564-50263 | T=2.00 | X | $11.82 |
| 90564-50264 | T=2.02 | X | $11.82 |
| 90564-50265 | T=2.04 | X | $11.82 |
| 90564-50266 | T=2.06 | X | $11.82 |
| 90564-50267 | T=2.08 | X | $11.82 |
| 90564-50268 | T=2.10 | X | $11.82 |
| 90564-50269 | T=2.12 | X | $11.82 |
| 90564-50270 | T=2.14 | X | $11.82 |
| 90564-50271 | T=2.16 | X | $11.82 |
| 90564-50272 | T=2.18 | X | $11.82 |
| 90564-50273 | T=2.20 | X | $14.19 |
| 90564-50274 | T=2.22 | X | $14.19 |
| 90564-50275 | T=2.24 | X | $14.19 |
| 90564-50276 | T=2.26 | X | $14.19 |
| 90564-50277 | T=2.28 | X | $14.19 |
| 90564-50278 | T=2.30 | X | $14.19 |
| 90564-50279 | T=2.32 | X | $14.19 |
| 90564-50280 | T=2.34 | X | $14.19 |
| 41320B | BOLT (FOR FRONT DIFFERENTIAL TUBE) | ||
| 90105-12373 | 4 | $2.53 | |
| 41320C | PIN, STRAIGHT (FOR FRONT DIFFERENTIAL TUBE) | ||
| 90250-10017 | 2 | $2.13 | |
| 41321 | TUBE, DIFFERENTIAL EXTENSION FLANGE | ||
| 41321-60020 | 1 | $305.46 | |
| 41342A | PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||
| 90250-06058 | 1 | $2.69 | |
| 41342F | SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||
| 41342-34020 | 1 | $42.42 | |
| 41351F | WASHER, FRONT DIFFERENTIAL PINION THRUST | ||
| 41351-34020 | 2 | $4.39 | |
| 41361F | WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||
| 41361-34100 | T=1.45 | 2 | $7.47 |
| 41361-34110 | T=1.50 | 2 | $7.79 |
| 41361-34120 | T=1.55 | 2 | $8.11 |
| 41361-34130 | T=1.60 | 2 | $8.30 |
| 41361-34140 | T=1.65 | 2 | $8.58 |
| 41361-34150 | T=1.70 | 2 | $8.78 |
| 41361-34160 | T=1.75 | 2 | $9.05 |
| 41361-34170 | T=1.80 | 2 | $9.29 |
| 41361-34180 | T=1.85 | 2 | $9.53 |
| 41653B | STOPPER, DIFFERENTIAL MOUNT, UPPER | ||
| 41653-60060 | 1 | $53.02 | |
| 41653C | STOPPER, FRONT DIFFERENTIAL MOUNT, UPPER | ||
| 41653-60050 | 1 | $53.02 | |
| 41654A | STOPPER, DIFFERENTIAL MOUNT, LOWER | ||
| 41654-60020 | 2 | $14.59 | |
| 52380D | SUPPORT ASSY, FRONT DIFFERENTIAL | ||
| 52380-60080 | NO.1 | 1 | $152.26 |
| 52380-60090 | NO.2 | 1 | $152.26 |
| 52380E | SUPPORT ASSY, DIFFERENTIAL | ||
| 52380-60070 | پایه دیفرانسیل جلو لندکروزر | 1 | $169.93 |
| 90105-14175 | *** STD. PART | $6.13 | |
| 90105-14177 | *** STD. PART | $5.18 | |
| 90105-14185 | *** STD. PART | $6.13 | |
| 90110-06009 | *** STD. PART | $0.87 | |
| 90178-14016 | *** STD. PART | $3.76 | |
| 90179-14063 | *** STD. PART | $1.90 | |
| 91552-L1450 | *** STD. PART | $4.11 | |
| 91554-L1450 | *** STD. PART | ||
